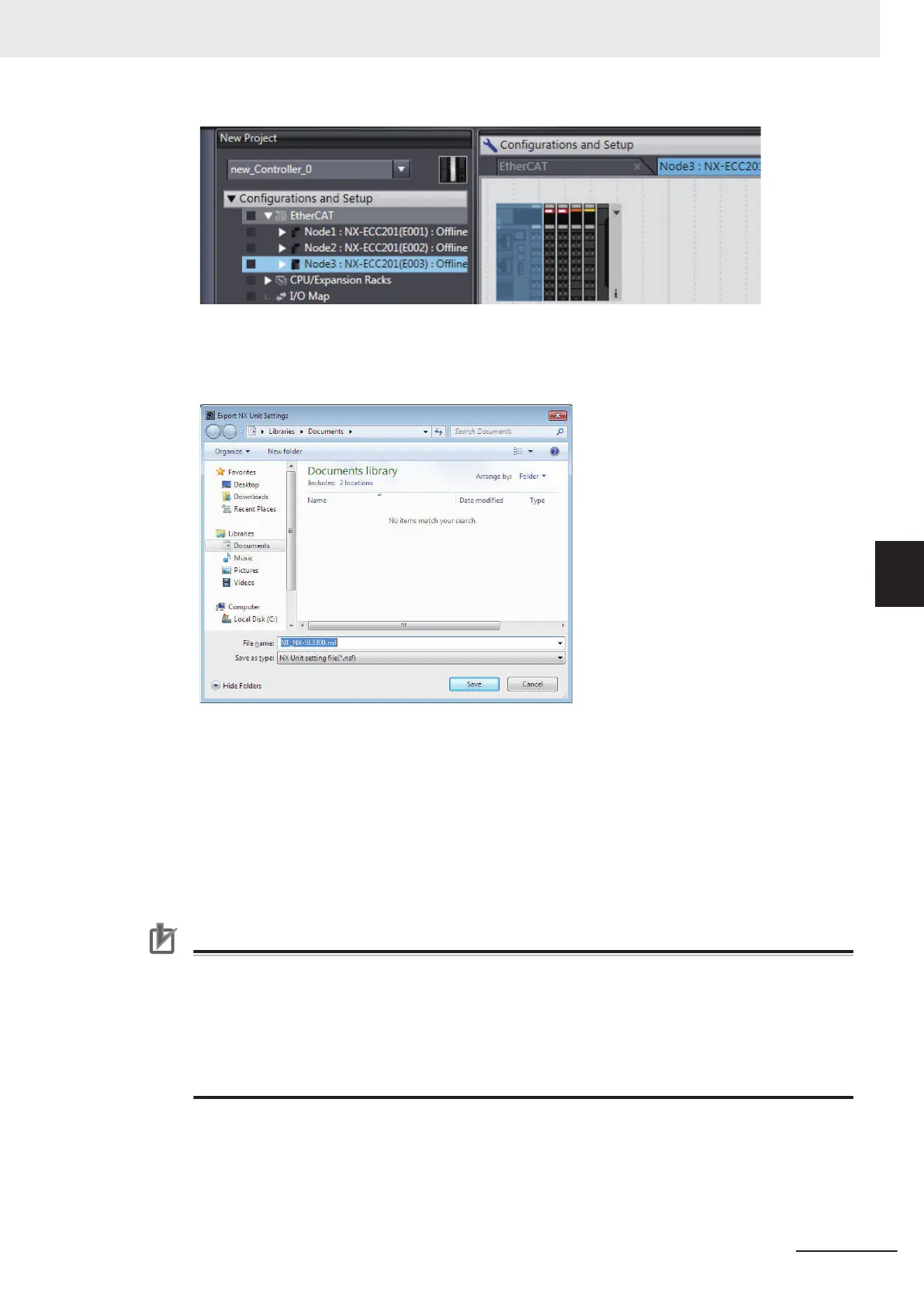

2 Right-click the Safety CPU Unit to export and select Export NX Unit Settings from the menu.
The Export NX Unit Settings Dialog Box is displayed.
3 Enter a file name, and then click the Save Button.
An NX Unit configuration file with an .nsf extension is saved.
4 To import a file, select the Unit to the left of the point where you wish to add the slave on the
Slave Terminal T
ab Page, and then right-click and select Import Slave Settings and Insert
New Slave from the menu.
The Safety CPU Unit to import is added to the Slave Terminal Tab Page.
Precautions for Correct Use
• When you import the data to the Safety CPU Unit, first configure all of the Safety I/O Units.
• If importing data results in two or more
Safety CPU Units, an error will occur. Delete the Safe-
ty CPU Units that are not used.
• You cannot import settings data that contains Safety CPU Unit for which program data protec-
tion is set to Sysmac Studio version 1.16 or lower.
• You cannot import settings data that contains Safety CPU Unit for which user-defined function
block data protection is set to Sysmac Studio version 1.11 or lower.
5 System Configuration and Setup
5 - 43
NX-series Safety Control Unit User's Manual (Z930)
5-9 Exporting/Importing Settings Data
5
5-9-3 Exporting/Importing Data for Individual Safety CPU Unit
