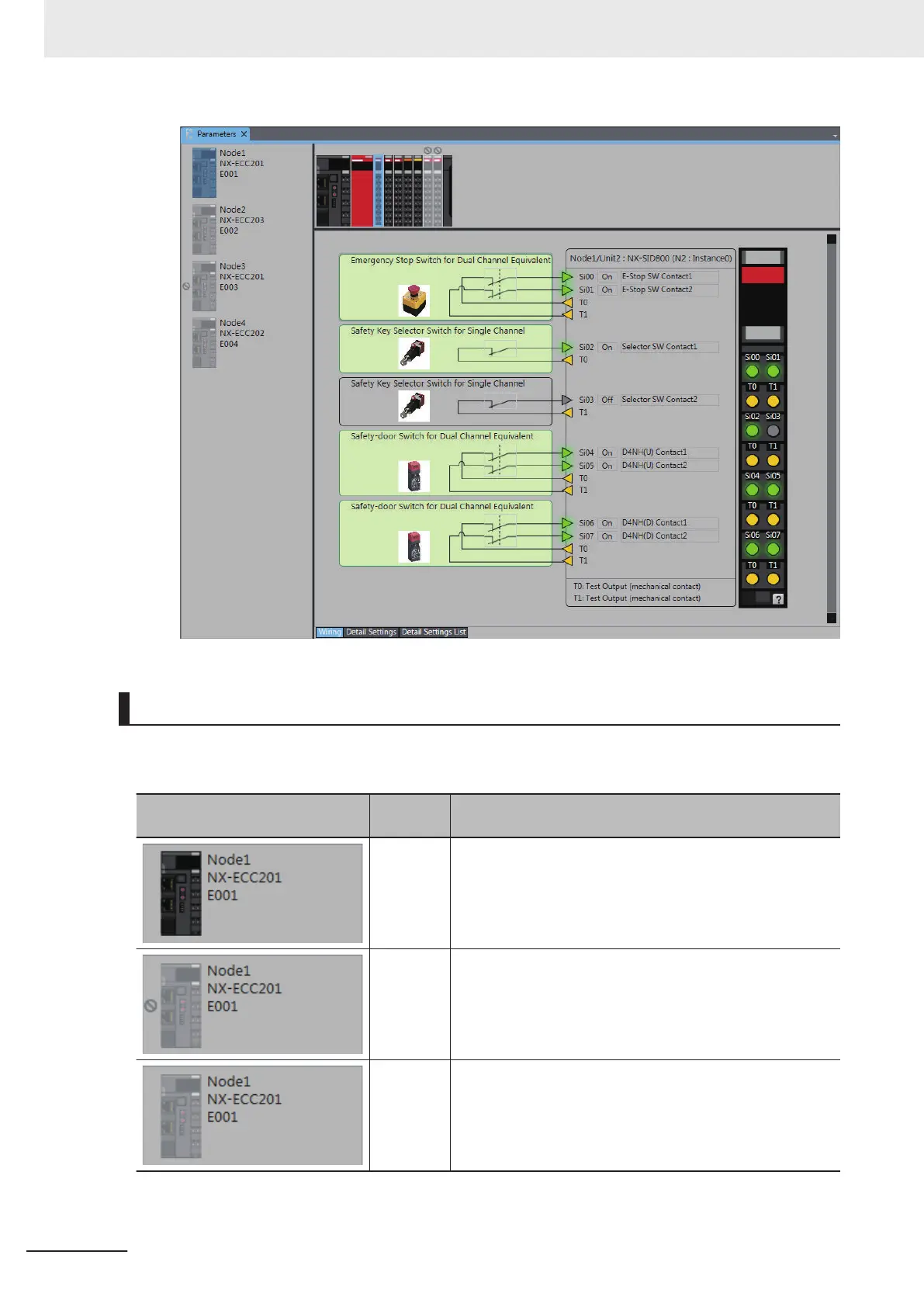

Description of Monitor Tab Page
• NX Bus Master Displays
This section describes for the Communications Coupler Unit as an example.
Display
Monitor
function
Description
Enabled The NX bus master is present in the actual configuration and
communications are established with it.
Disabled The Communications Coupler Unit is disabled in the Ether-
CAT network configuration.
Safety I/O Units
connected to this Communications Coupler
Unit are not monitored.
Disabled Either the NX bus master is not present in the actual configu-
ration or communications cannot be established with it.
Safety I/O Units connected to this NX bus master are not
monitored.
• NX Unit Displays
7 Checking Operation and Actual Operation
7 - 22
NX-series Safety Control Unit User's Manual (Z930)
