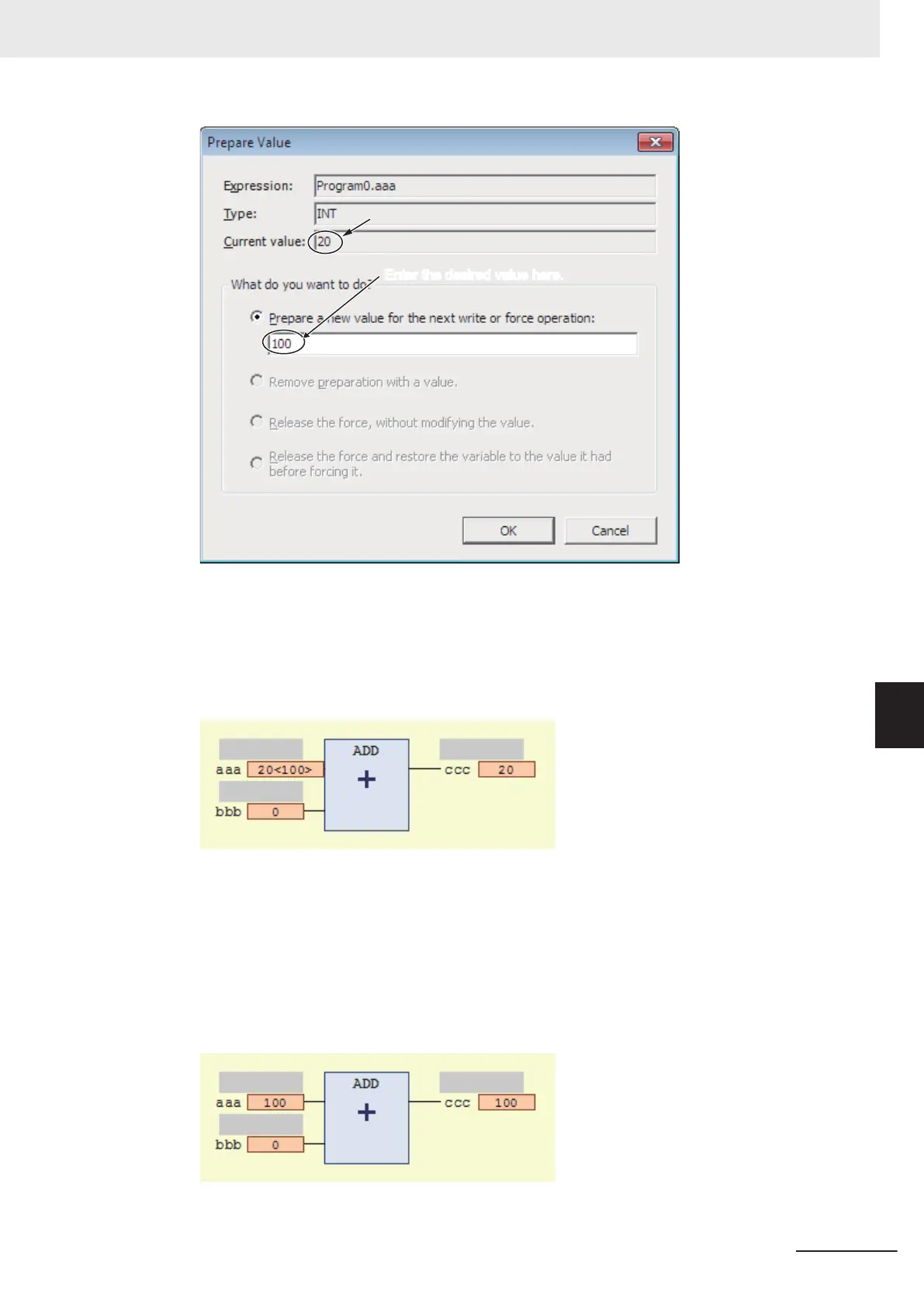

The present value is displayed.
Enter the desired value here.
3 Click the OK Button.
The Prepare Value
Dialog Box closes and the new value is prepared as the temporary value.
The temporary value appears in <> on the right side of the present value. This indicates that
the temporary value is available to replace the present value.
To cancel the temporary value, double-click the present value of the desired variable again. Se-
lect the Remove preparation with a value Option in the Prepare Value
Dialog Box, and then
click the OK Button.
4 Select Write Values from the Controller Menu.
The temporary value is removed and reflected as the present value.
Example: The present value of variable aaa
is changed to 100.
7 Checking Operation and Actual Operation
7 - 33
NX-series Safety Control Unit User's Manual (Z930)
7-6 Functions for Checking Operation
7
7-6-5 Controlling BOOL Variables, Changing Present Values, and Using Forced Re-
freshing
