Omron NX-SL3500

To Next Page

To Previous Page

Si0 Si1

T0 T1

Si2 Si3

T0 T1

Blue

Black

Brown

White

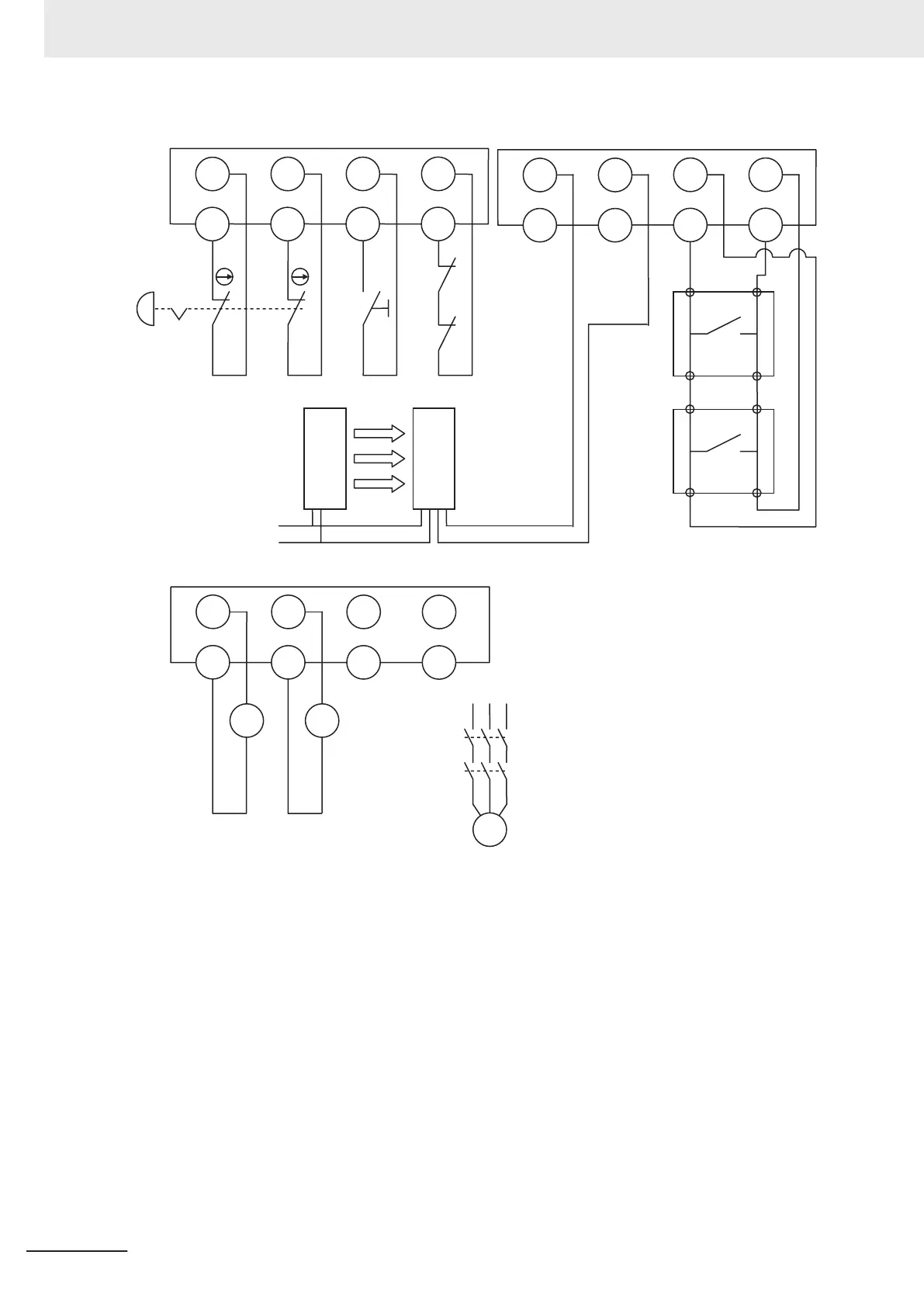

KM1

KM2

Si0 Si1 Si2 Si3

T0 T1 T0 T1

24 VDC (brown)

GND (blue)

Emitter

Receiver

OSSD1 (green)

OSSD2 (white)

Unit 2 (NX-SIH400)

Unit 3 (NX-SIH400)

KM1

KM2

KM1

KM2

So0 So1 So2 So3

S1: Emergency stop pushbutton

S2: Reset switch

S3: Safety light curtain

S4: Safety mat

KM1, KM2: Contactors

M: Motor

Unit 4 (NX-SOD400)

IOG IOG IOG IOG

Appendices

A - 58

NX-series Safety Control Unit User's Manual (Z930)
