Omron NX-SL3500

Reset variable
All registered input variables
All registered output variables
<
1-1
>
<1-2>
<1-3>
<1-4>

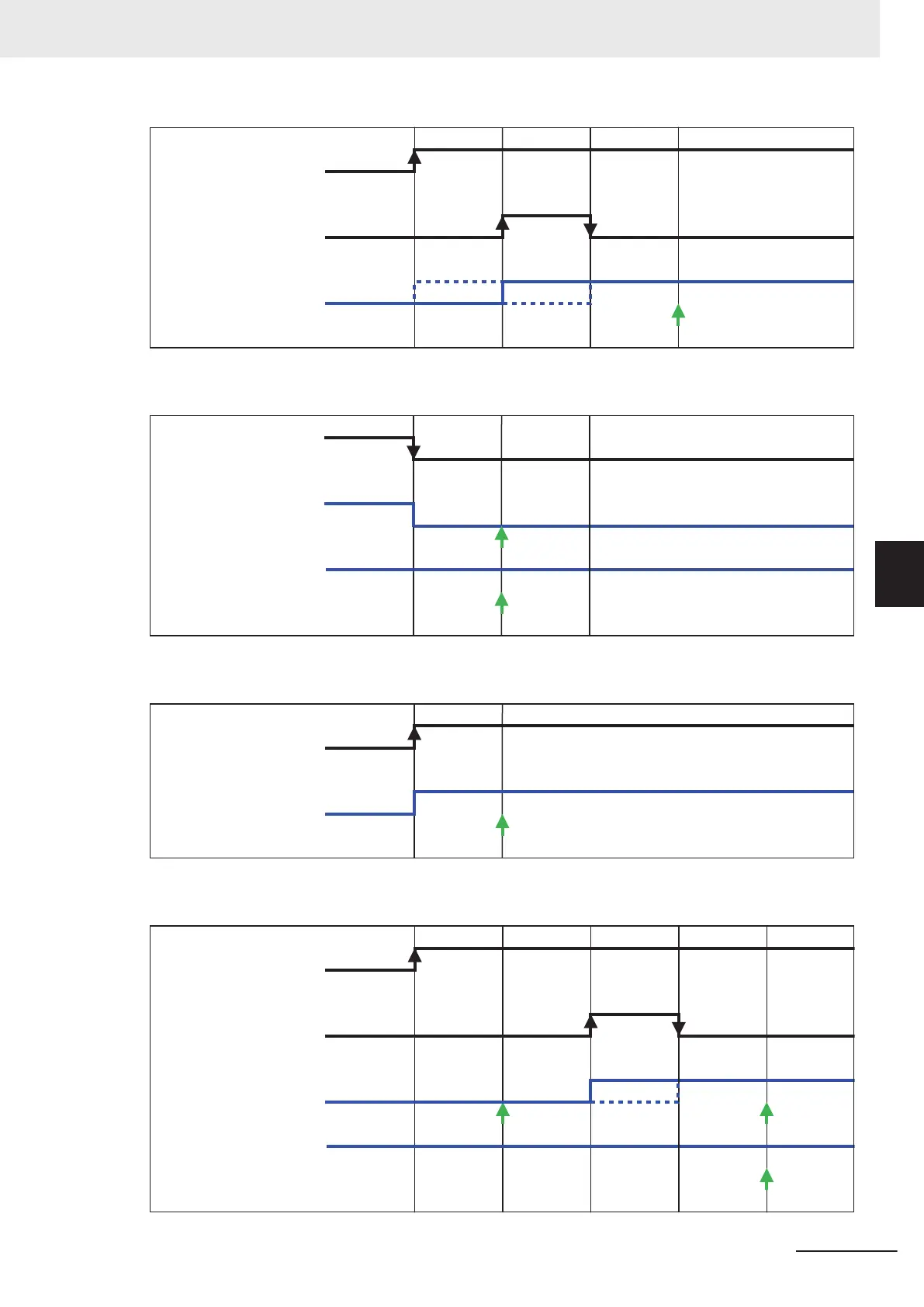

2. Shutoff Test
<2-1>
<2-2>
<2-3>
Target input variable
Output variables expected to be 0
Output variables expected to be 1
3. Restore Test (Reset Type: Auto)
<3-1>
<3-2
>
Target input variable
All registered output variables
4. Restore Test (Reset Type: Manual)
<4-1>
<4-2>
<4-3>
<4-4>
<4-5>
<4-5>
Target input variable
Reset variable
Output variables expected to be 0
Output variables expected to be 1
Appendices
A - 103
NX-series Safety Control Unit User's Manual (Z930)
A-15 Execution Scenarios for the Simple Automatic Test
