Item Description
External connection termi-
nals
The type of terminal block and connector that is used for connecting the Unit.
This specification includes the number of terminals for a screwless clamping
terminal block.
Indicators The type of indicators on the Unit and the layout of those indicators.
Hardware switch settings It is the type and layout of hardware switches for the Unit.
Dimensions (mm) These are the external dimensions of the Unit. The dimensions are given in
the form W × H × D. The dimensions are given in
"millimeters".
I/O power supply method The method for supplying I/O power for the Unit. The supply method is deter-
mined for each Unit. The power can be supplied either from the NX bus or
from an external source.
Current capacity of I/O power
supply terminal
The current capacity of the I/O power supply terminals (IOV/IOG) of the Unit.
Do not exceed this value when supplying the I/O power to the connected ex-
ternal devices.
NX Unit power consumption The power consumption of the NX Unit power supply of the Unit.
Current consumption from
I/O power supply
The current consumption from I/O power supply of the Unit. This value does
not include the load current of any external connection loads or the current
consumption of any connected external devices.
Weight The weight of the Unit.
Installation orientation and
restrictions
This is the installation orientation of the Unit. Any restrictions to specifications
that result from the installation orientation are also given.
*1. Refer to 5-4-3 Calculating the Number of Connections on page 5 - 20 for how to calculate the number of
connections.
*2. The number of CIP Safety connections that can be actually set depends on the maximum number of routa-
ble CIP Safety connections of the NX-series CPU Unit.
For NX102 CPU Units, the maximum number of routable CIP Safety connections is 16.

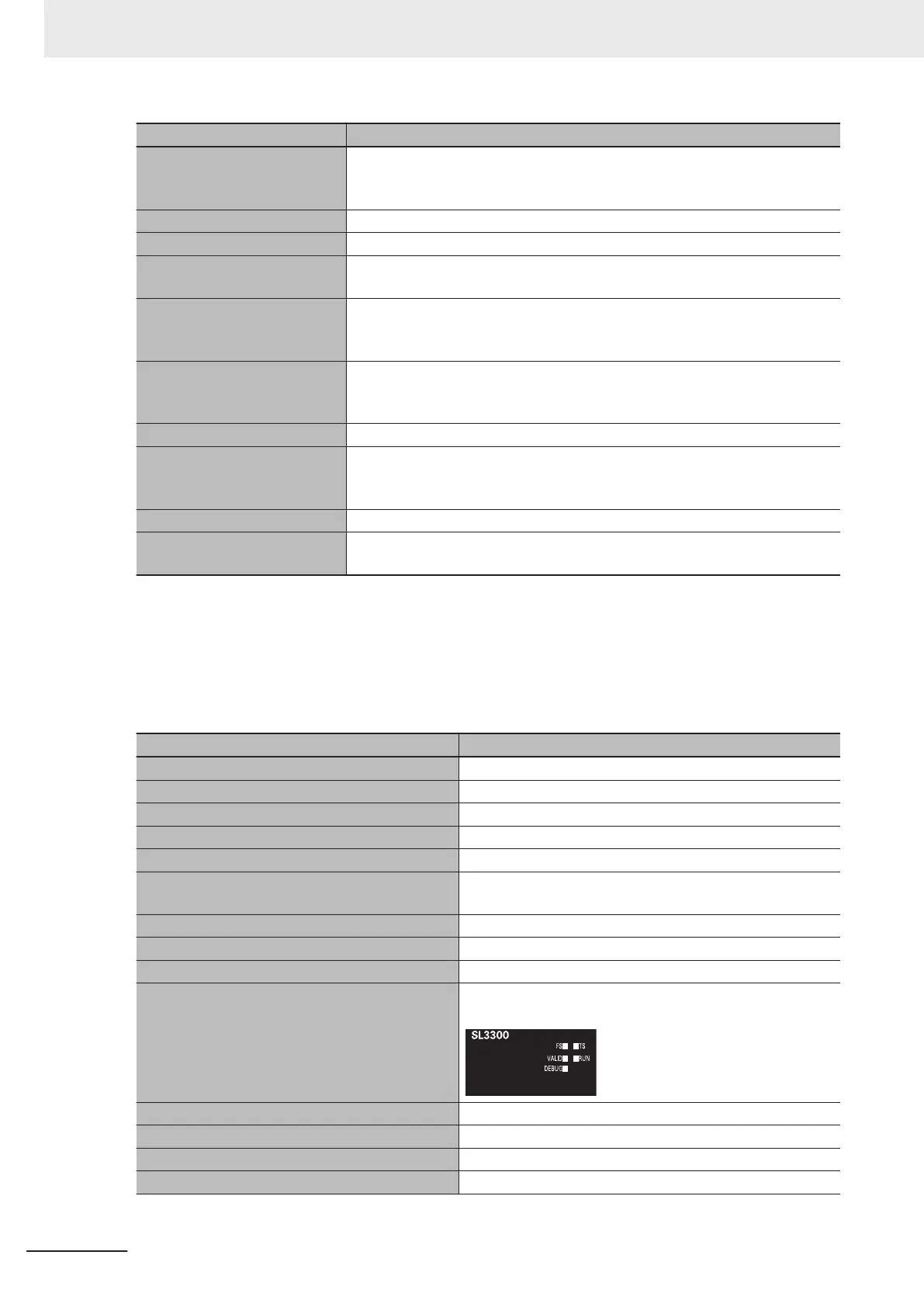

l
NX-SL3300
Item Specification
Maximum number of safety I/O points 256 points
Program capacity 512 KB
Number of safety I/O connections 32
Number of CIP Safety originator connections 0
Number of CIP Safety target connections 0
Number of originators that can be connected
with a multi-cast connection
0
Number of FSoE master connections 32
I/O refreshing method Free-Run refreshing
External connection terminals None
Indicators [FS] LED, [VALID] LED, [DEBUG] LED, [TS] LED, [RUN]
LED
Hardware switch settings None
Dimensions (mm) 30 × 100 × 71 mm (W × H × D)
I/O power supply method Not supplied.
Current capacity of I/O power supply terminals No I/O power supply terminals
2 Specifications
2 - 4
NX-series Safety Control Unit User's Manual (Z930)
