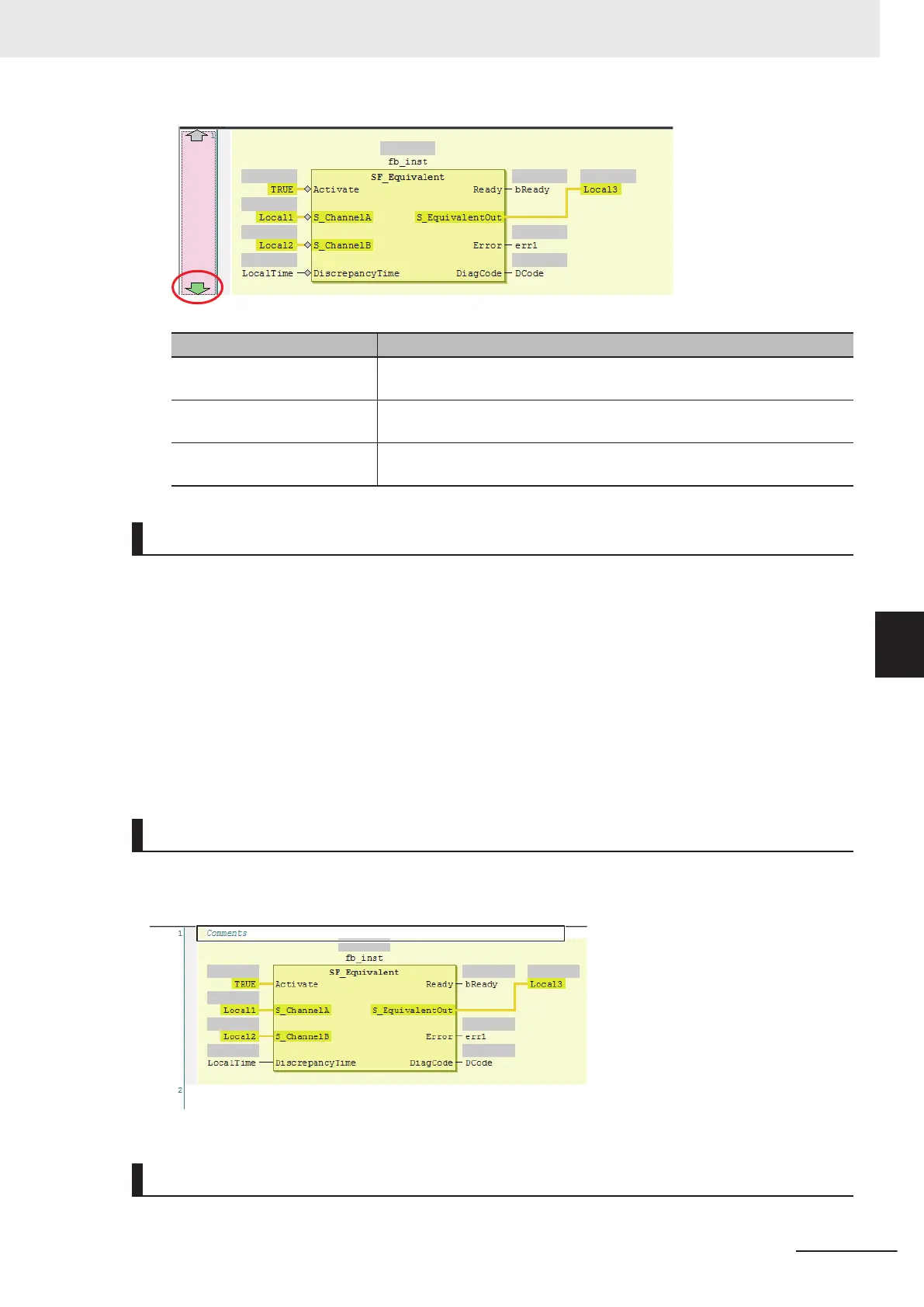

Drop point Position where network is added
Upward arrow on the network
number
An empty network is inserted before the FBD network where the network
was dropped.
Downward arrow on the net-
work number
An empty network is inserted after the FBD network where the network
was dropped.
Input terminal An empty network is inserted after the FBD network where the network
was dropped.
Deleting FBD Networks
There are two methods to delete an FBD network.
l
Method 1
Right-click the FBD network and select Delete from the menu.
The selected FBD network is deleted and the focus moves to the next network.
l
Method 2
Select the FBD network and press the
Delete Key.
The selected FBD network is deleted and the focus moves to the next network.
Editing Comments for FBD Networks
Use the following procedure to edit the comment for an FBD network.
• Select the comment portion of the FBD network and edit it.
