• When S_Mode2Sel is selected and Set Output Connection
is executed, the network is as shown
below
.
Deleting Unused Parameters from a FUN or FB
Use the following procedure to delete any unused parameters from a FUN or FB.
Right-click the FB or FUN on the FBD network and select Remove unused FB call parameters from
the menu.
All of the unused parameters are deleted.
•

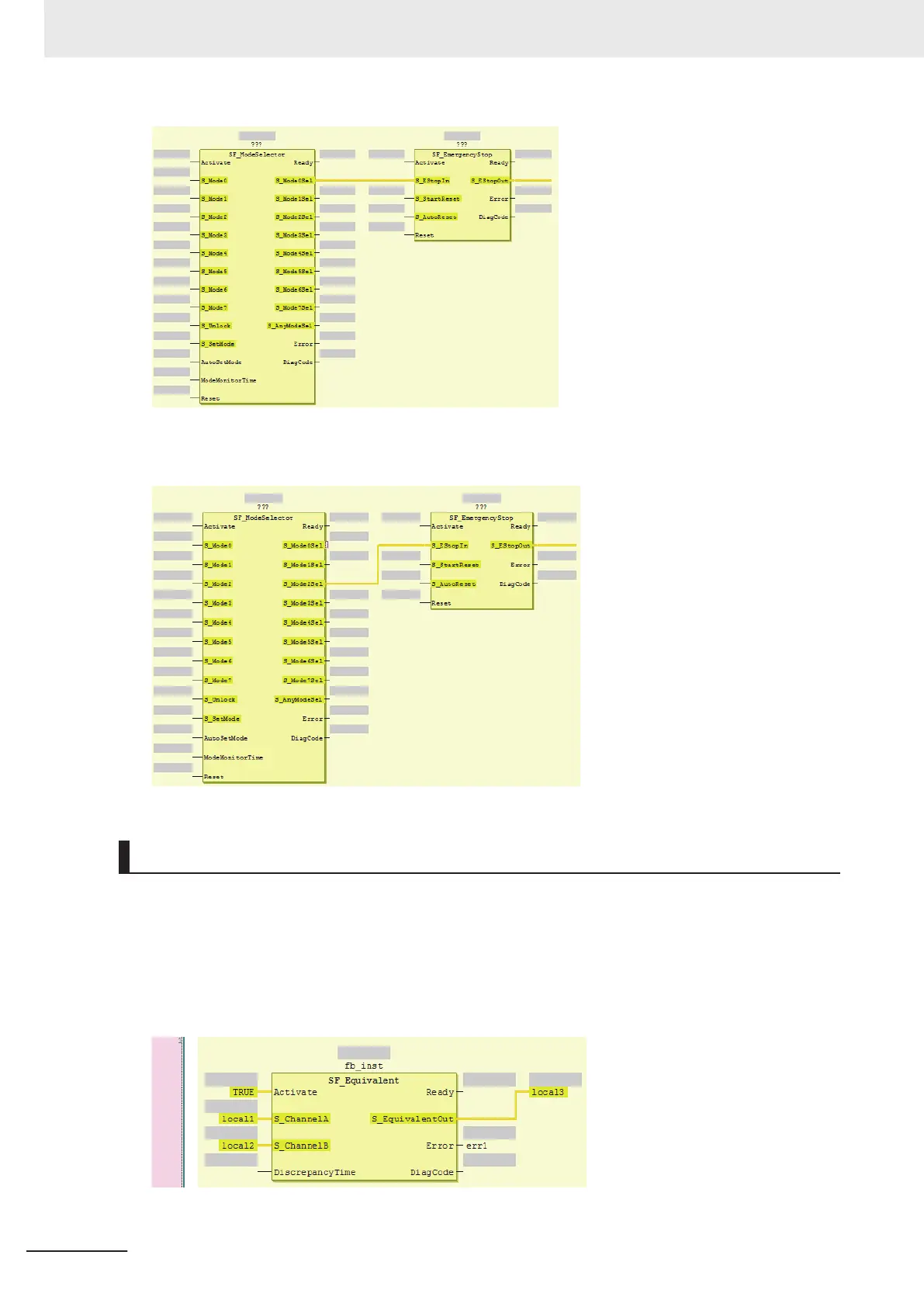

Before the unused parameters of the FUN or FB are deleted, the network is as shown below.
• After the unused parameters of the FUN or FB are deleted, the network is as shown below.
