Drop point Position where function block is added
Input terminal The output parameter is inserted on a branch that is created before the input ter-
minal.
Output terminal The output parameter is inserted after the output terminal.
Before the output param-
eter
The output parameter is inserted on a branch that is created before the output
variable.
l

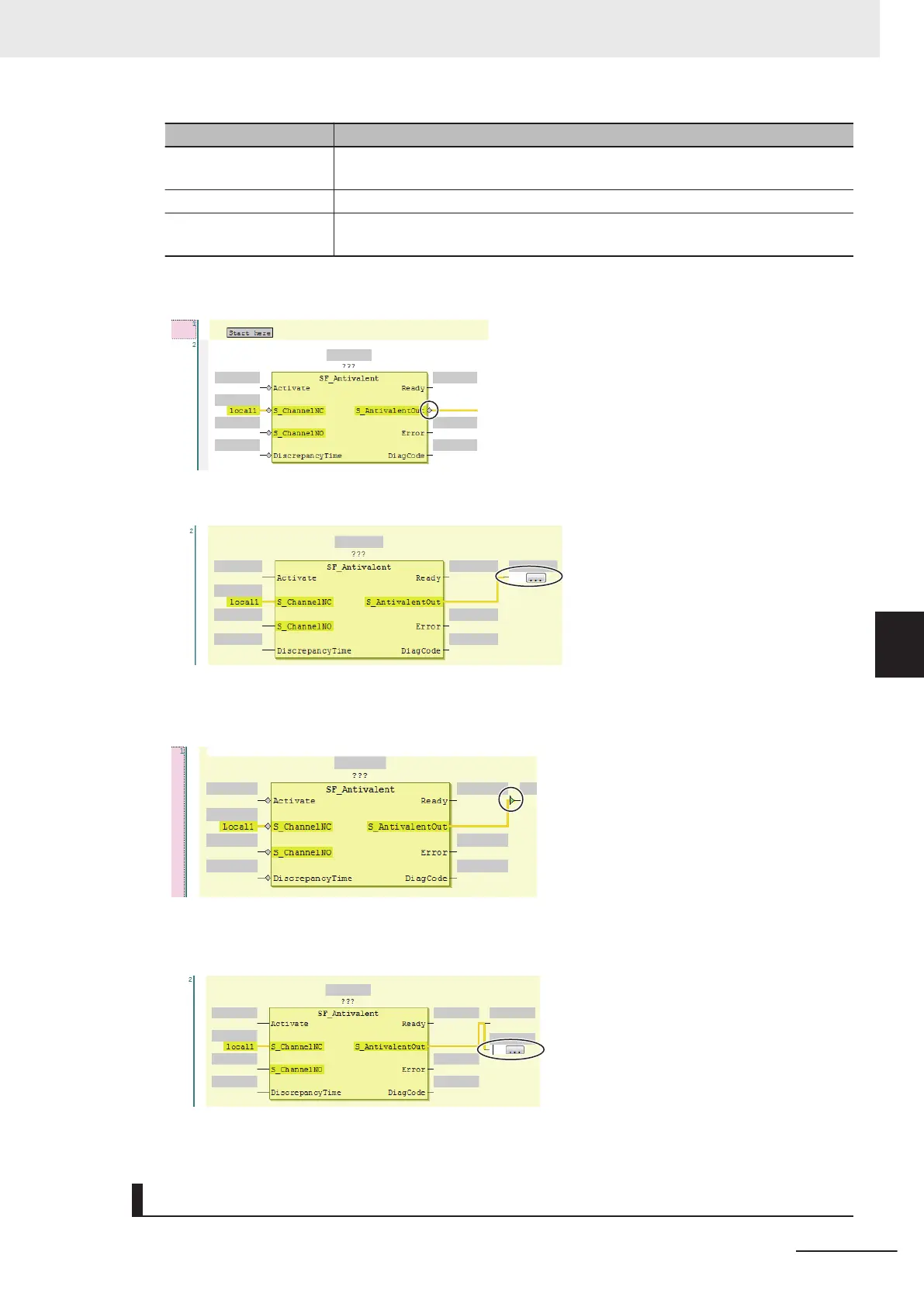

Example 1 of a Dragged Output Parameter Object
When an output parameter is added to the output terminal, the network is as shown below.
l
Example 2 of a Dragged Output Parameter Object
When an output parameter is added before another output parameter, the network is as shown be-
low.
The output parameter is inserted on a branch that is created before the output variable.
Deleting Output Parameters
