Name Function
(a) Operation
Panel

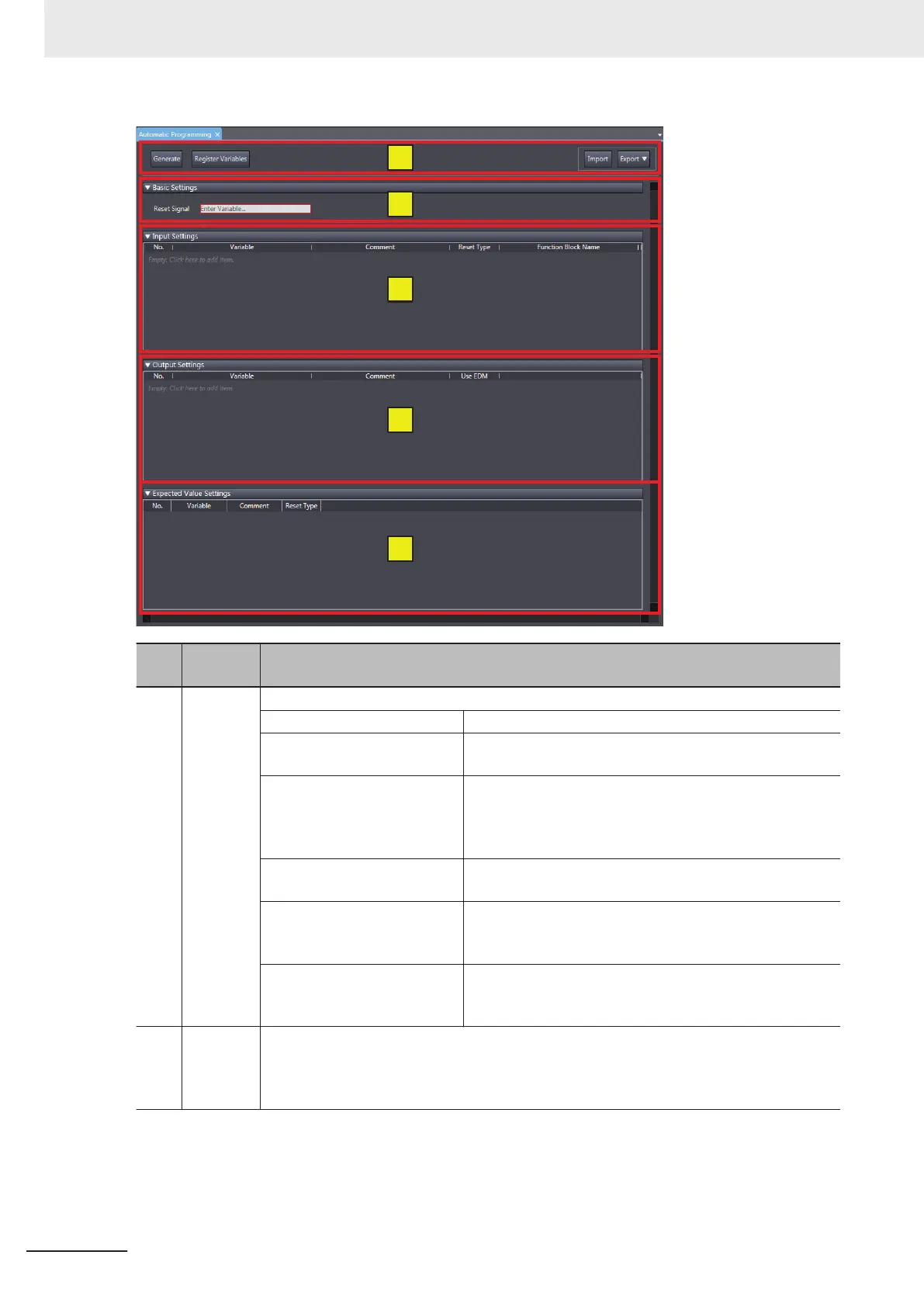

The operation panel is used to make settings for and execute the automatic programming.
Generate Button Generates a program using the automatic programming.
Register Variables Button Registers the variables that are used for the automatic
programming.
Import Button Imports the settings for the automatic programming from a
CSV file.
If you import the settings, the current settings are overwrit-
ten.
Export – CSV File Output Exports the current automatic programming settings to a
CSV file.
Export – Export to Simple Au-
tomatic T
est
Exports the current automatic programming settings to the
simple automatic test settings.
The settings of the export destination are overwritten.
Export – Export to Online
Functional Test
Exports the current automatic programming settings to the
online functional test settings.
The settings of the export destination are overwritten.
(b)
Basic Set-
tings
Set the variable to use as a reset signal for the safety program. You can set any SAFE-
BOOL or BOOL variable that is defined in the global variable table.
When a program is generated, the variable name for the configured reset signal is assigned
to the input variable Reset of the safety function block that is linked to each input signal.
