12.7 H: TERMINALS
704 SIEPYEUOQ2A01A AC Drive Q2A Technical Manual
Note:
• The detection level set with L4-03 is a signed value. The drive will only detect in one direction.
• CLV and CLV/PM control use motor speed as the reference.
ON : The output frequency is less than the value of L4-03 or is not higher than the value of L4-03
+ L4-04.
OFF : The output frequency is higher than the value of L4-03 + L4-04.

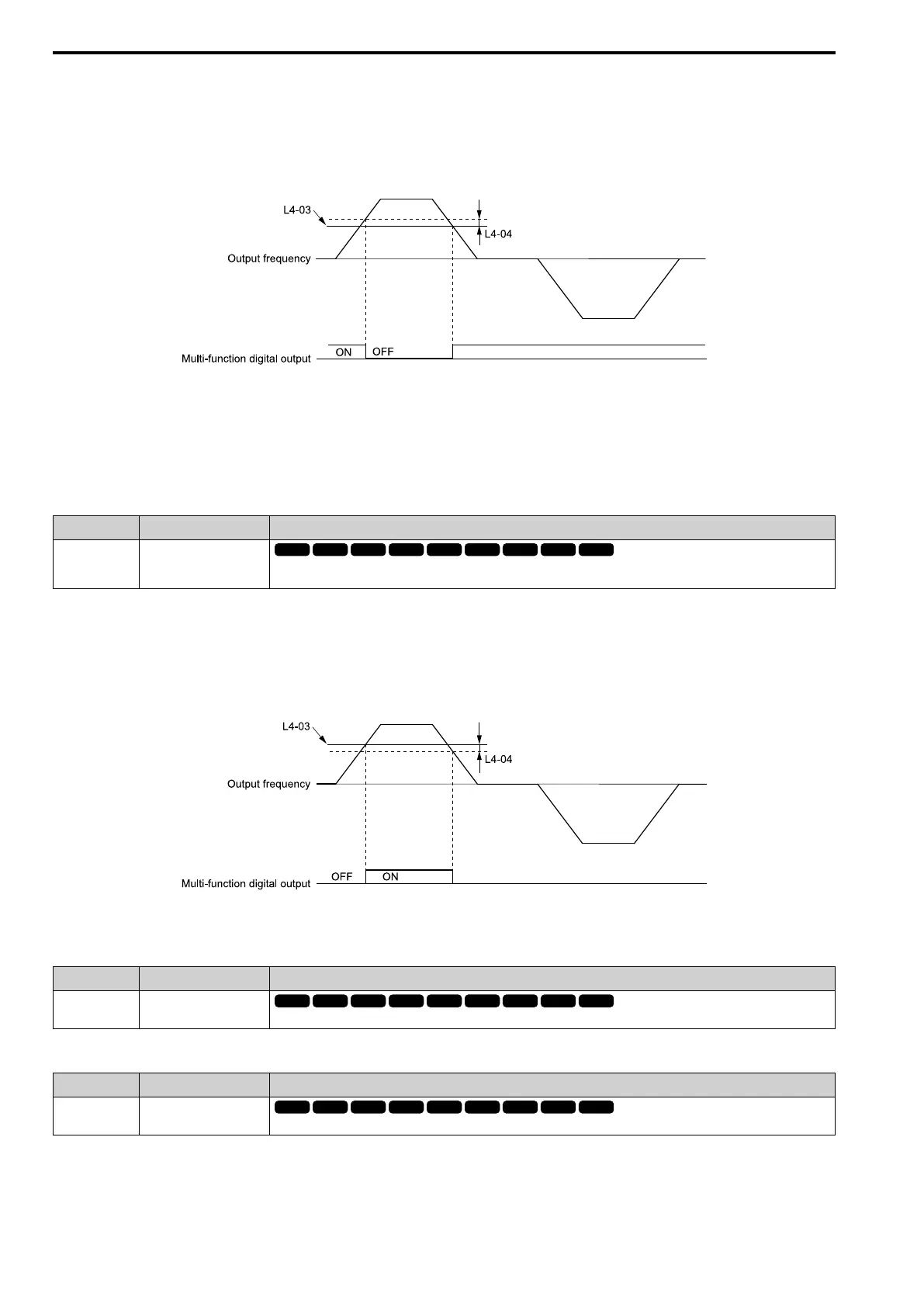

Figure 12.94 Example of Frequency Detection 3 (value of L4-03 Is Positive)
Note:
Figure 12.94 shows the result of the configuration when L4-07 = 1 [Speed Agree Detection Selection = Detection Always Enabled]. The
default setting of L4-07 is 0 [No Detection during Baseblock]. When the speed agreement detection selection is “No Detection during
Baseblock”, the terminal is deactivated when the drive output stops.
■ 16: FreqDetect 4
Setting Function Description
16 FreqDetect 4
The terminal activates when the output frequency is higher than the value of L4-03 [SpAgree Det.Level(+/-)]. After the terminal
activates, the terminal stays on until the output frequency is at the value of L4-03 - L4-04.
Note:
• The detection level set with L4-03 is a signed value. The drive will only detect in one direction.
• CLV control uses motor speed as the reference.
ON : The output frequency is higher than the value of L4-03.
OFF : The output frequency is less than the value of “L4-03 - L4-04”, or it is not higher than the
value of L4-03.
Figure 12.95 Example of Frequency Detection 4 (value of L4-03 Is Positive)
■ 17: @Fast Stop
Setting Function Description
17 @Fast Stop
The terminal activates when the fast stop is in operation.
■ 18: @KEBridethru
Setting Function Description
18 @KEBridethru
The activates during KEB Ride-Thru.
Note:
Refer to “KEB Ride-Thru function” for more information.
