3 Specifications
3 - 80
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
 R88A-CR1BV
Applicable Servomotors
200 V and 400 V:
3,000-r/min Servomotors of 4 kW or more, and 1,500-r/min Servomotors
Cable types

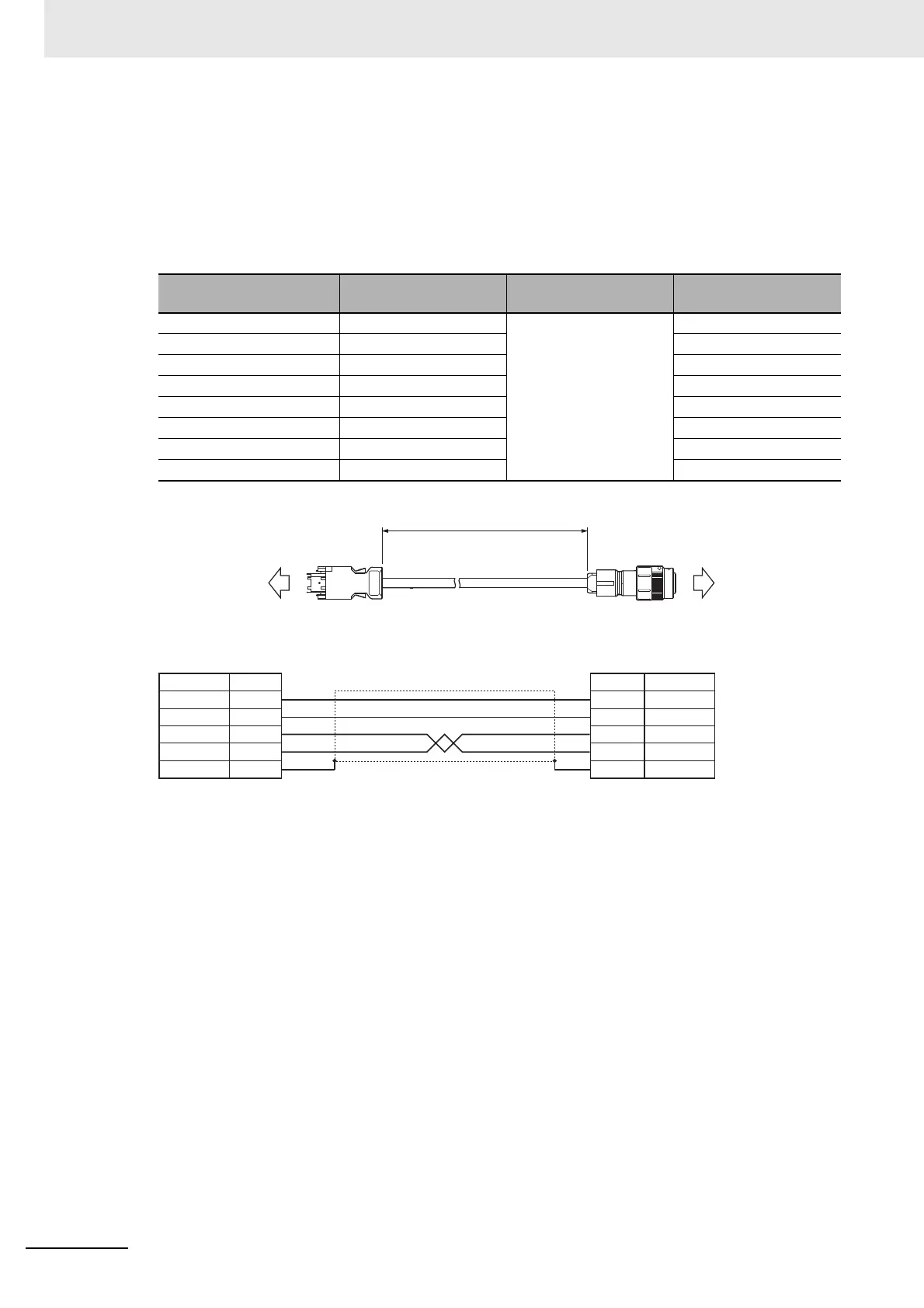

Connection configuration and external dimensions [mm]
Wiring
Model Length [L]
Outer diameter of
sheath
Weight
R88A-CR1B003V 3 m 6.0 dia. Approx. 0.3 kg
R88A-CR1B005V 5 m Approx. 0.4 kg
R88A-CR1B010V 10 m Approx. 0.8 kg
R88A-CR1B015V 15 m Approx. 1.1 kg
R88A-CR1B020V 20 m Approx. 1.5 kg
R88A-CR1B030V 30 m Approx. 2.3 kg
R88A-CR1B040V 40 m Approx. 3.0 kg
R88A-CR1B050V 50 m Approx. 3.7 kg
Servomotor side
R88M-1
L
Servo Drive side
R88D-1SN
3
7
E5V
E0V
S+
S-
FG9
Symbol
4
1
Symbol
E5V 1
E0V 2
S+ 5
S- 6
FG
AWG22 × 2C + AWG24 × 1P UL20276 (3 to 20 m)
AWG18 × 2C + AWG24 × 1P UL20276 (30 to 50 m)
Connector model
Receptacle: 3E206-0100KV (3M)
Shell kit: 3E306-3200-008 (3M)
JN2VDS10SL1
(Japan Aviation Electronics)
JN2V-22-22S-10000
(Japan Aviation Electronics)
Servomotor side connector
Straight plug model
Servo Drive side
connector
Red
Black
Blue
Blue/white
Name
Servomotor side
Cable
Name
Servo Drive side
Shell
Contact model
