Omron S82K Series User Manual

New S82K
New S82K
12

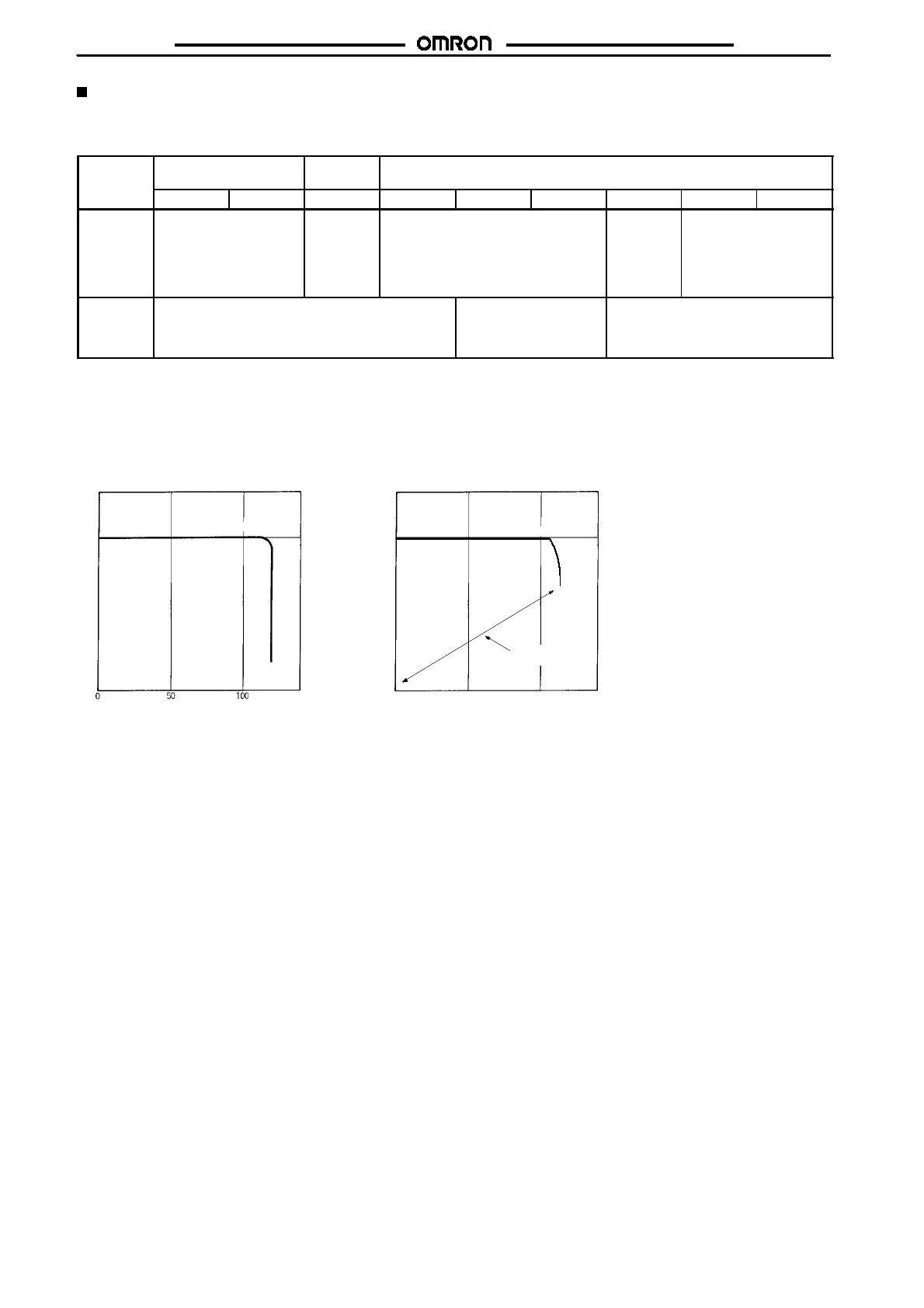

Overload Protection
The Power Supply is provided with an overload protection function that protects the load and the power supply from possible damage by over-
current. When the output current rises above a set value (refer to the table below), the protection function is triggered, decreasing the output
voltage. When the output current falls within the rated range, the overload protection function is automatically cleared.
Single output Dual
outputs
Single output
3W 7.5 W 7.5 W 15 W 30 W 50 W 90 W 100 W 240 W
Set value 105% to 160% of rated
load current (see note 1)
105% to
250% of
rated load
current
105% to 160% of rated load current 101% to
111% of
rated load
current
(see notes
2 and 3)
105% to 160% of rated
load current (see note 3)
Operation Inverted L drop type, automatic reset Inverted L
drop/intermittent
operation type,
automatic reset
Inverted L drop type, automatic reset
Note:
1. When using the 7.5-W single-output models within the input voltage range between 90 and 110 VDC, the overload protection func-
tion will operate at currents from 95% to 160% of the rated load current.
2. When using the 90-W model at an ambient temperature exceeding 25
"
C, the overload protection function will operate at currents
from 92% to 1 11% of the rated load current.
3. When using the 100-W model with PFC in parallel operation, the overload protection function will operate at currents from 3.78 to
4.2 A.
Output voltage (V)
Output current (%)
Intermittent
operation
Note:
Do not short-circuit the output terminals of the S82K or use the S82K with excessive output current for a long time, otherwise the
internal circuitry of the S82K may be deteriorated or damaged.
500 100
Output voltage (V)
Output current (%)
Rated voltage
3-/7.5-/15-/90-/100-/240-W Models
30-/50-W Models
Rated voltage
When Using
!
Output Models
The +V output detects the total output power (+V output and -V output) to trigger the short-circuit protection against overcurrent. This protection
varies depending on the -V output state. The -V output independently triggers the short-circuit protection.

Omron S82K Series Specifications

General

Category	Power Supply
Type	Switching Power Supply
Input Voltage	100 to 240 VAC
Output Voltage	5 VDC, 12 VDC, 24 VDC
Operating Temperature Range	-10°C to +60°C
Mounting Type	DIN Rail
Safety Standards	UL508
Protection Features	Overvoltage, Short Circuit
Cooling Method	Convection
Dimensions	Varies depending on model
