Omron S82K

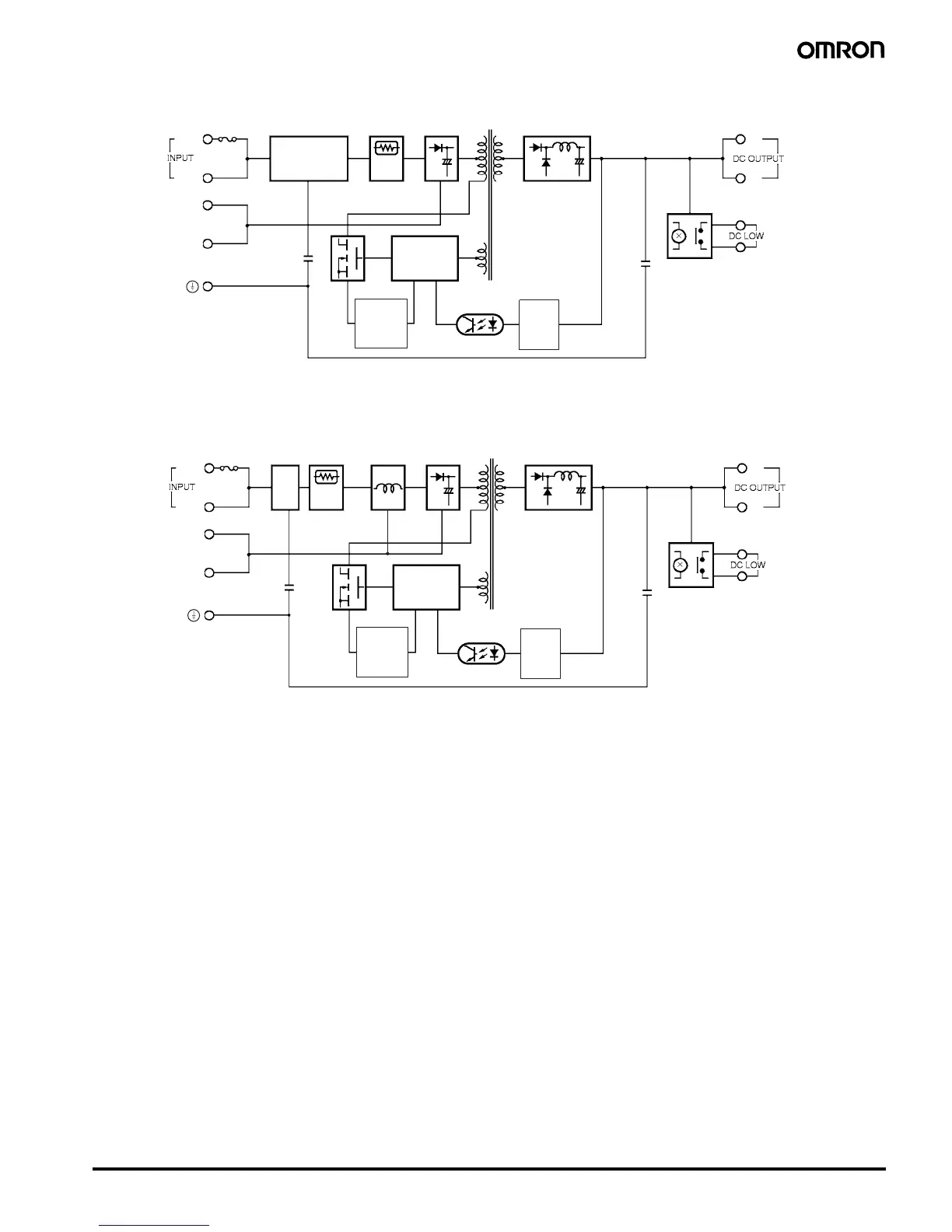

Switch Mode Power Supply S82K 5
AC (L)
AC (N)
− V
+ V
Fuse (5 A)
Noise filter
Rectifier/
smoothing
circuit
Photocoupler
Rectifier/
smoothing
circuit
Detector
S82K-09024 (90 W)
S82K-10024 (100 W)
100 or 200 V
Selectable
terminals
(See note.)
Inrush current
protection
circuit
Drive control
circuit
Overload
detection
circuit
Note: Use the short bar to short-circuit terminals 7 and 8 to select 100 to 120 VAC and
remove the short bar to select 200 to 240 VAC.
Undervoltage
alarm indicator
AC (L)
AC (N)
− V
+ V
Fuse (5 A)
Noise
filter
Rectifier/
smoothing
circuit
Photocoupler
Rectifier/
smoothing
circuit
Detector
S82K-P09024 (90 W)
S82K-P10024 (100 W)
100 or 200 V
Selectable
terminals
(See note.)
Inrush current
protection
circuit
Harmonic current
emission control
(200-V input only)
Drive control
circuit
Overload
detection
circuit
Note: Use the short bar to short-circuit terminals 7 and 8 to select 100 to 120 VAC and
remove the short bar to select 200 to 240 VAC.
Undervoltage
alarm indicator
