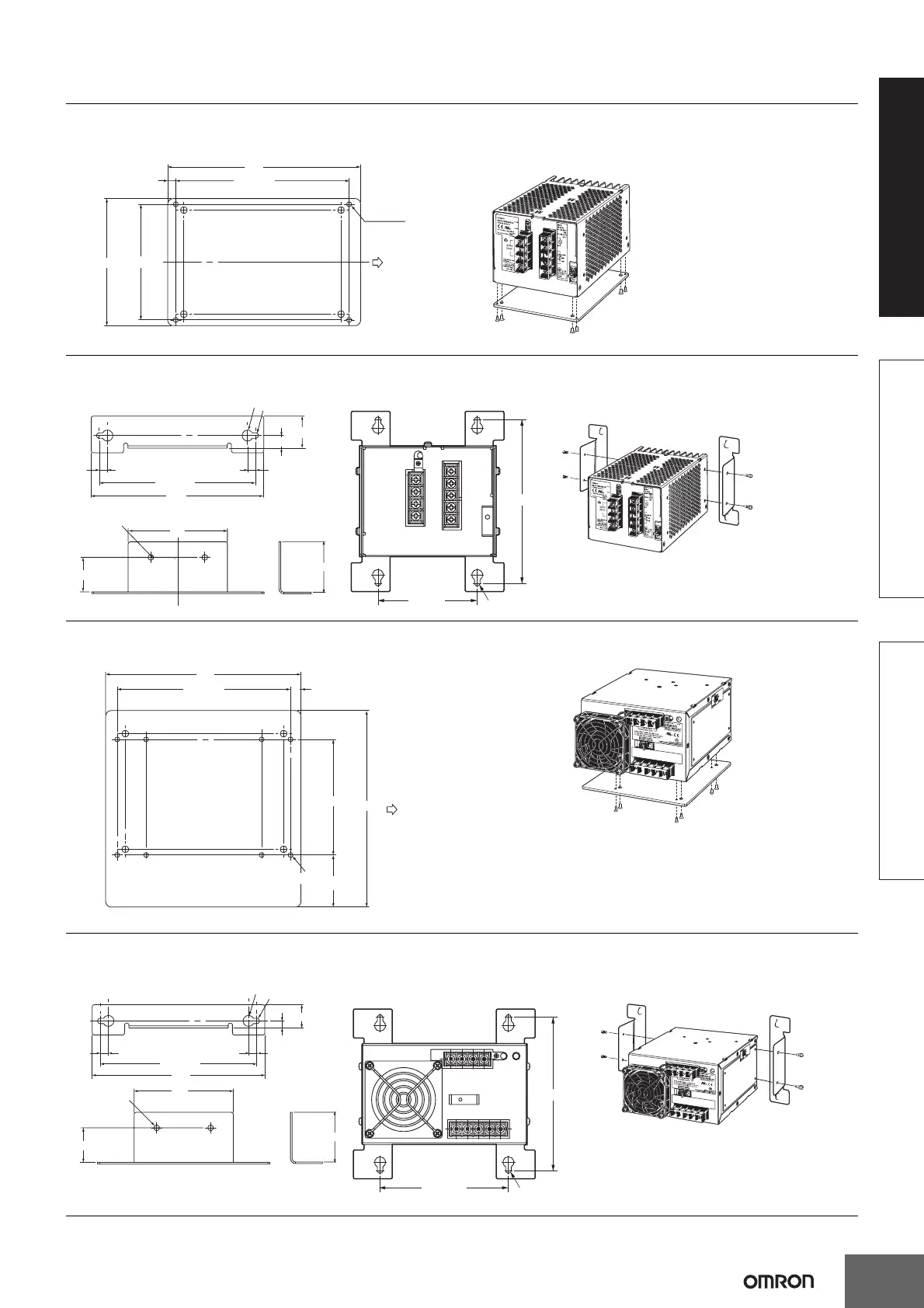

Front
Thickness = 3.2
Four, M4
150±0.1
167
100±0.1
110
A
A
A
B
B
B
Mounting Bracket F
S82Y-JX30B
Screws used
A: Accessories (4 locations)
Be sure to use the accessory screws.
B: M4 (4 locations)
Screws of a length that will not project
beyond the fixture (thickness: 3.2 mm)
should be selected.
Method of Mounting
7.5 7.5
145±0.3
160
32±0.2
92
Two, 5 dia.
11.6
R2.5
10 dia.
29.6
48
Thickness = 1.6
145±0.3
90±0.5
Four, M4
A
A
A
A
Mounting Bracket G
S82Y-JX30F
Screws used
A: Accessories (4 locations)
Be sure to use the accessory screws.
Note: For ventilation of the back surface,
the body should be placed 21.6 mm
in front of the mounting side.
Method of Mounting
Front
Thickness = 3.2
169
150±0.1
9
45
100±0.1
170
Eight, M4
A
A
A
B
B
B
Mounting Bracket H
S82Y-JX60B
Screws used
A: Accessories (4 locations)
Be sure to use the accessory screws.
B: M4 (4 locations)
Screws of a length that will not project beyond the
fixture (thickness: 3.2 mm) should be selected.
(Although there are 8 holes in the bracket body,
only 4 of these are used.)
Method of Mounting
145±0.3
140±0.5
Four, M4
Two, 5 dia.
6.6
10 dia.
R2.5
21.6
32±0.2
92
145±0.3
160
7.5
48
Thickness = 3.2
7.5
A
A
A
A
Mounting Bracket I
S82Y-JX60F
Screws used
A: Accessories (4 locations)
Be sure to use the accessory screws.
Note: For ventilation of the back surface, the
body should be placed 23.6 mm in front of
the mounting side.
Method of Mounting
