Omron SMARTSTEP 2 R7D-BP04H User Manual

3-51
3-4 Cable and Connector Specifications
3
Specifications

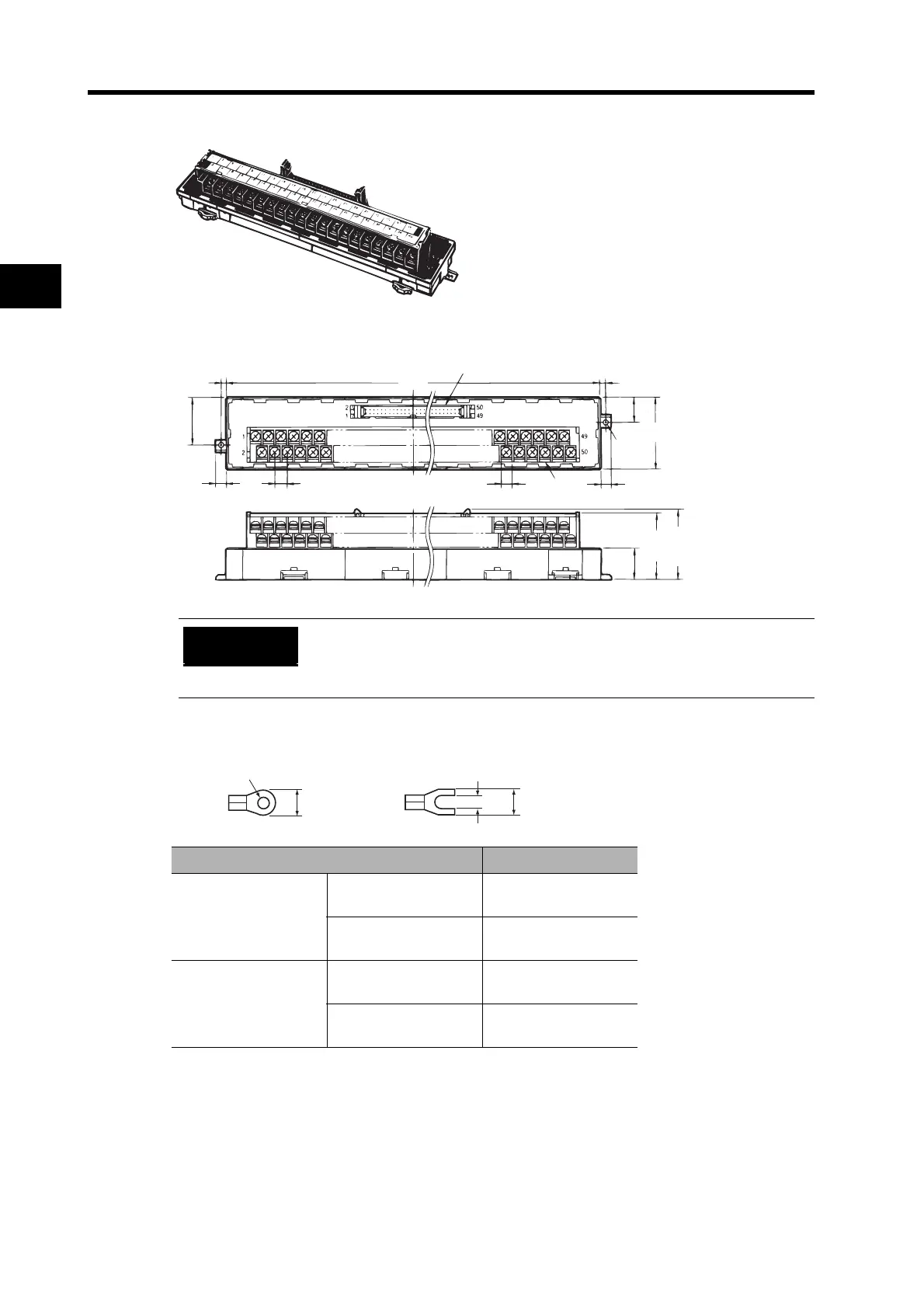

XW2B-34G5 (M3.5 screw terminal block)
 Dimensions
 When using crimp terminals, use crimp terminals with the following
dimensions.
 When connecting wires and crimp terminals to a Terminal Block, tighten
them with a tightening torque of 0.59 N·m.
Applicable Crimp Terminals Applicable Wires
Round Crimp
Terminals
1.25 to 3
AWG22 to AWG16
(0.3 to 1.25 mm
2
)
2 to 3.5
AWG16 to AWG14
(1.25 to 2.0 mm
2
)
Fork Terminals
1.25Y to 3
AWG22 to AWG16
(0.3 to 1.25 mm
2
)
2 to 3.5
AWG16 to AWG14
(1.25 to 2.0 mm
2
)
Flat cable connector (MIL plug)
3.5
29.5
78.5
7.3 7
Terminal
block
Two,
3.5 dia.
15.5
45
3.5
20.5
43.5
(45.3)
180
Precautions
for Correct Use
Round Crimp Terminals
Fork Terminals
6.8 mm max.
3.7 mm
3.7-mm dia.
6.8 mm max.
