3-61
3-5 Servo Relay Units and Cable Specifications
3
Specifications
Example:
*2. The XB and YB contacts are used to turn ON/OFF the electromagnetic brake.
*3. Connection to the MING input terminal is invalid.
*4. Do not connect unused terminals.
*5. The 0 V terminal is internally connected to the common terminals.
*6. Applicable crimp terminal: R1.25-3 (round with open end).

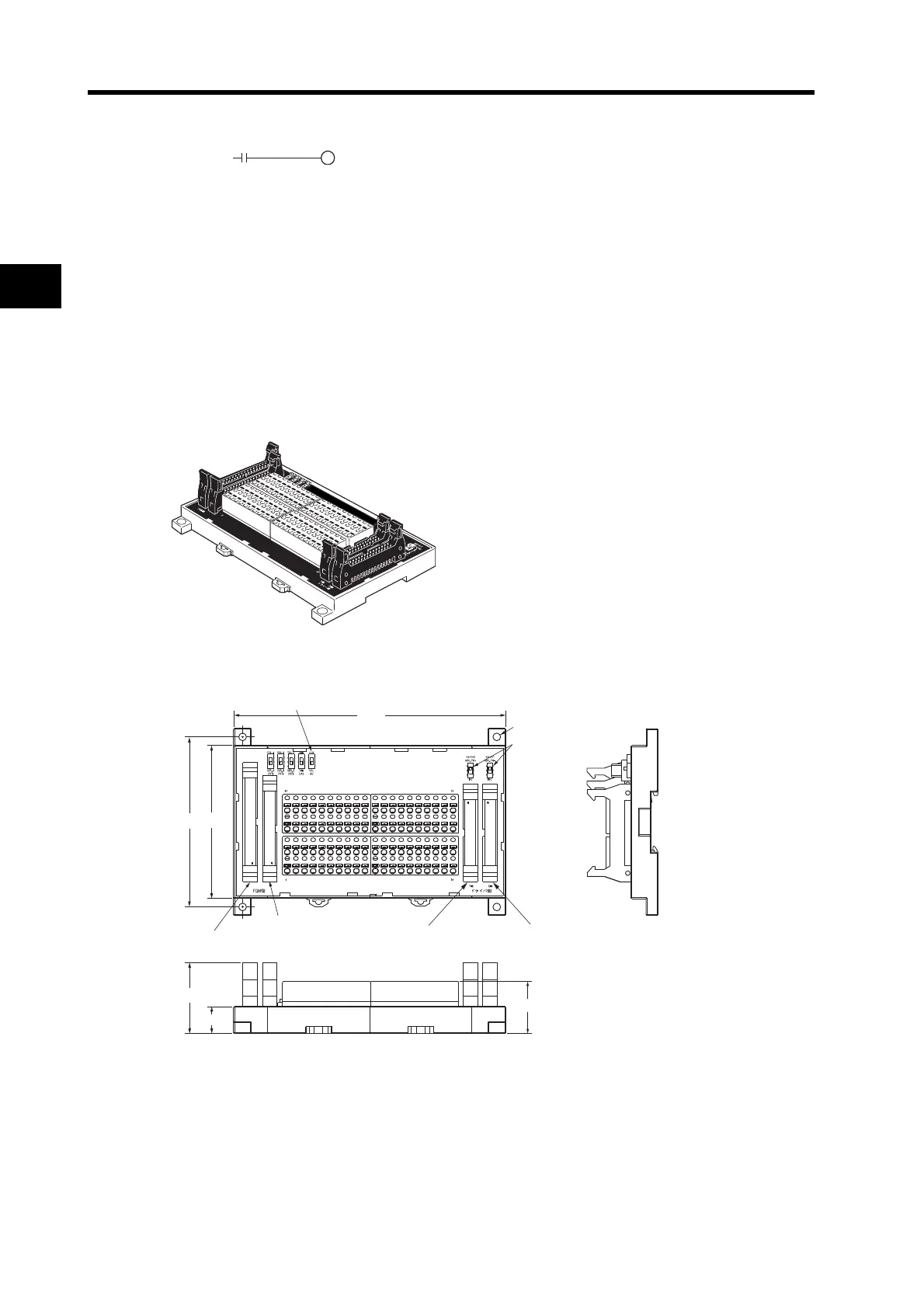

XW2B-80J7-12A
This Servo Relay Unit connects to the following OMRON Programmable
Controller.
Dimensions
FQM1-MMP22
2960.06
A540.0
160
4.5 dia.
100
90
41.7
15.9
30.7
X-axis Servo Drive
Servo Drive
phase B
selection
switch
Y-axis Servo Drive
Controller general-purpose I/O
Controller special I/O
Signal selection switch
To Next Page
