4-34
4-3 Wiring Conforming to EMC Directives
4
System Design

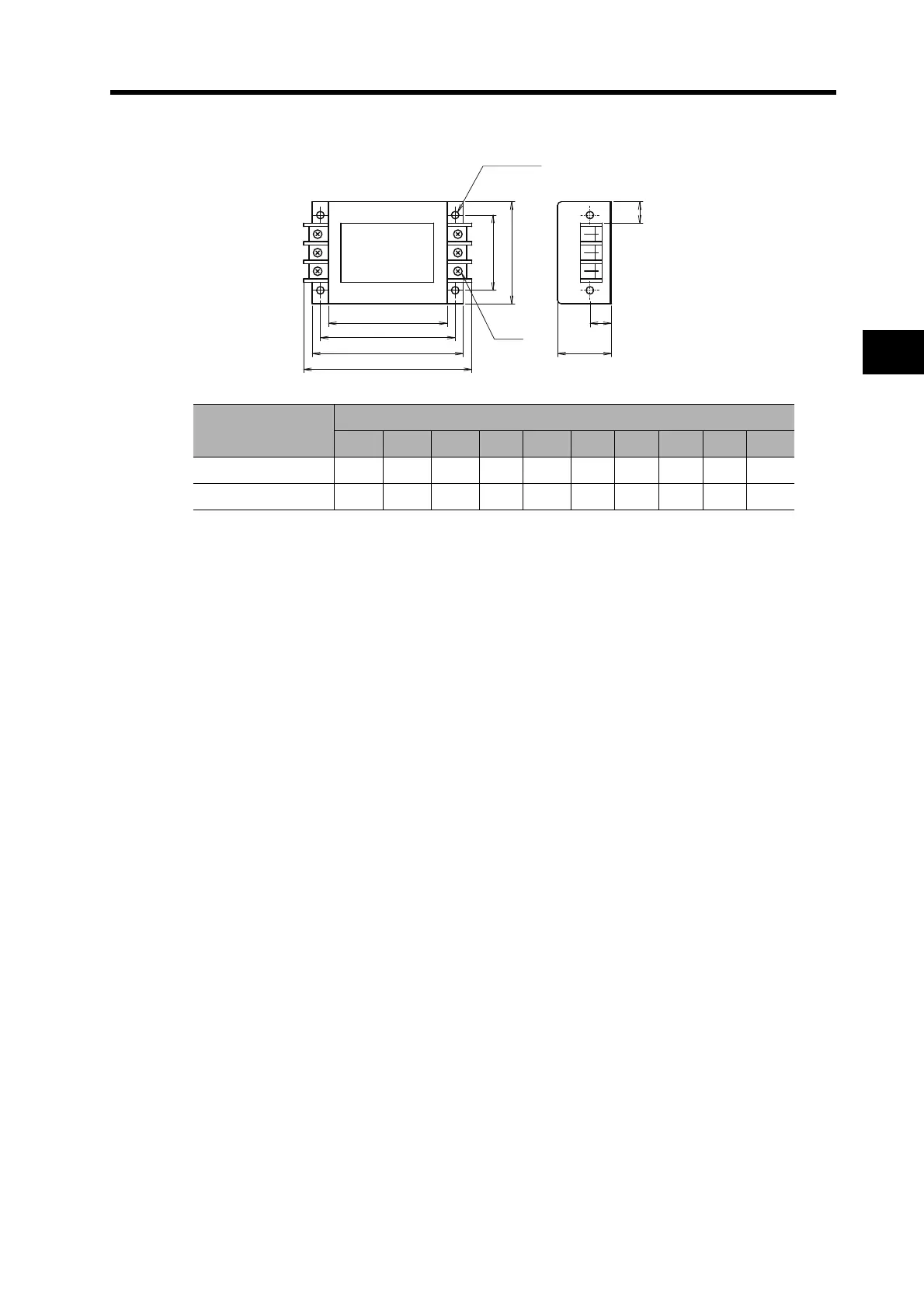

Dimensions
Measures against Brake Line Noise
 To reduce the noise from the brake line of the Servomotor, use a clamp filter of the same type used
for the Encoder Cable.
Model
Dimensions (mm)
A B C E F G H J M P
3G3AX-NF001 140 125 110 70 95 22 50 20 4.5 156
3G3AX-NF002 160 145 130 80 110 30 70 25 5.5 176
Four, M
M4
C
B
A
P
E
F
J
H
G
Nameplate
