Operating Functions

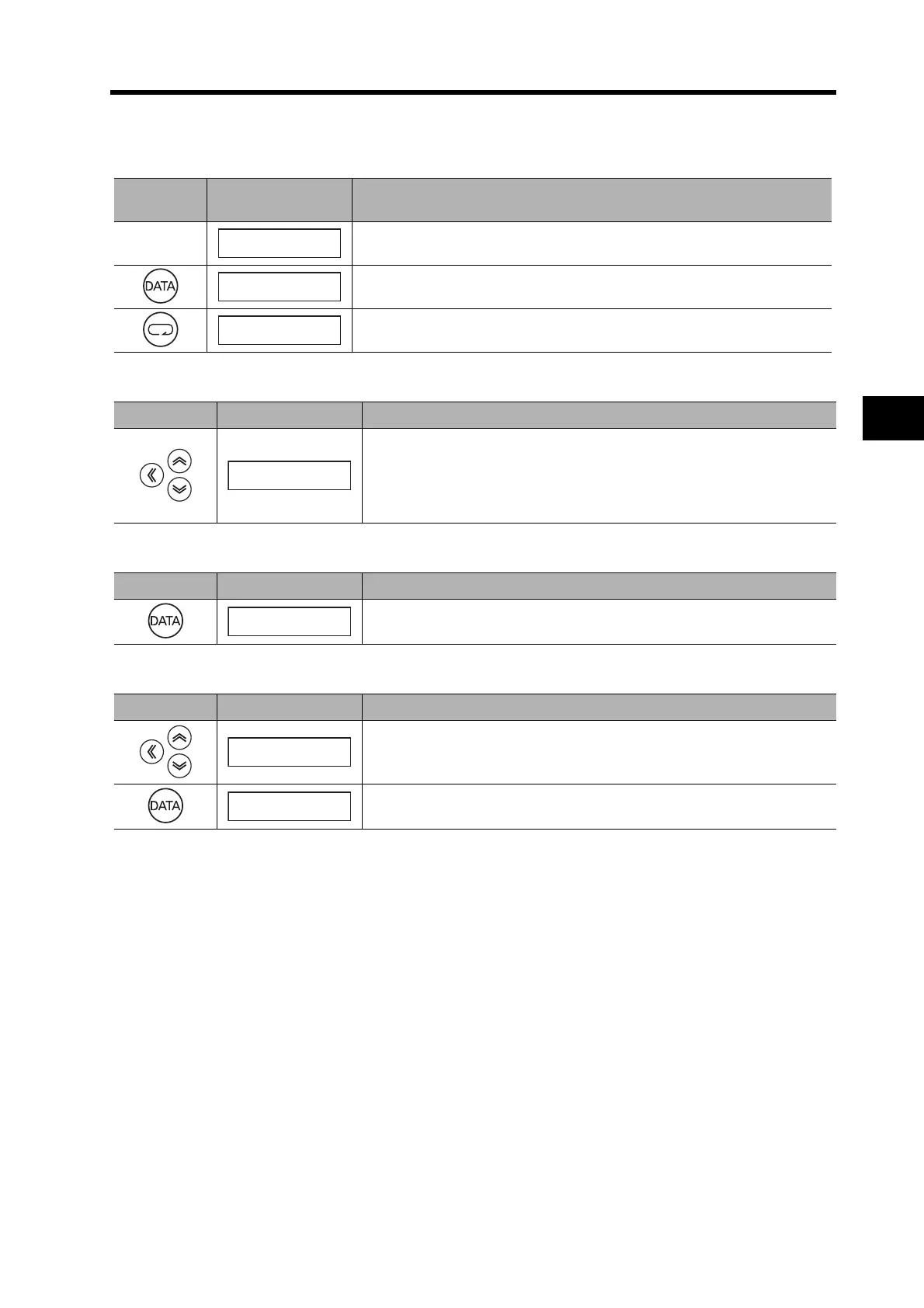

Operating Procedures
1. Displaying Parameter Setting Mode
2. Setting the Parameter Number
3. Displaying the Parameter Setting
4. Changing the Parameter Setting
Key opera-
tion
Display example Explanation
The item set for the Default Display (Pn01) is displayed.
Press the Data key to display Monitor Mode.
Press the Mode key to display Parameter Setting Mode.
Key operation Display example Explanation
Use the Shift, Increment, and Decrement keys to set the parameter num-
ber.
If the parameter number is too high, you can change the parameter number
faster by using the Shift key to change the digit. The decimal point will flash
for the digit that can be set.
Key operation Display example Explanation
Press the Data key to display the setting of the parameter.
Key operation Display example Explanation
Use the Shift, Increment, and Decrement keys to change the setting.
Press the Data key to save the new setting.
rk k k k k0k
Uknk_kskpkd.
pknk_krk0k0.
pknk_k k1k0.
k k k k4k0.
k k k1k0k0.
k k k1k0k0.
