2-2-1 Removing and Mounting the Front Cover
Remove the front cover to wire the terminals. Remove the Digital Operator from the front
cover before removing the front cover. For models of 15 kW or less (both 200-V and
400-V class), do not remove or mount the front cover without first removing the Digital
Operator; otherwise the Digital Operator may malfunction due to imperfect contact.

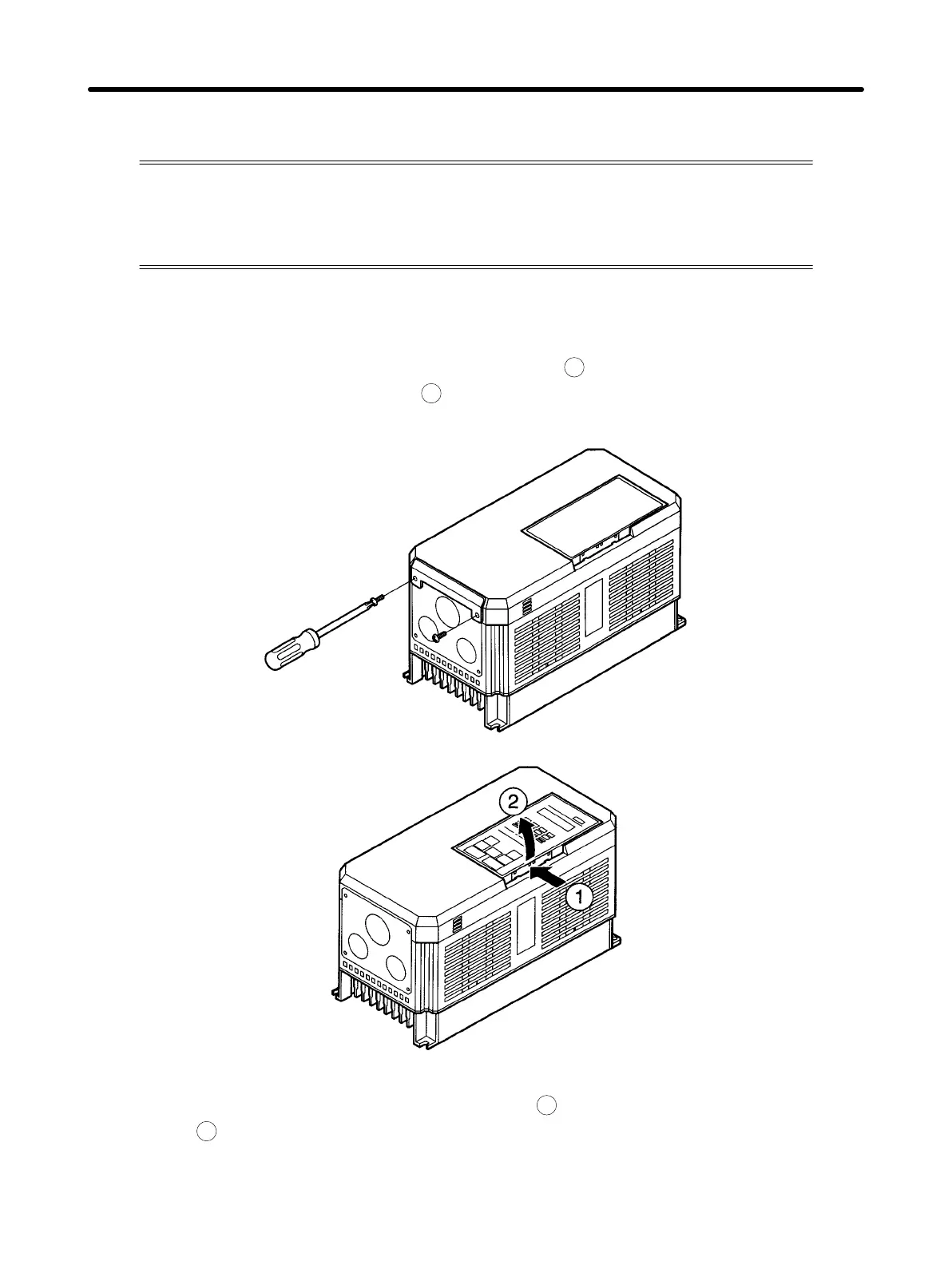

H Removing the Cover (Models of 15 kW or Less)
• Removing the Digital Operator
Press the lever on the side of the Digital Operator in the arrow
1
direction to unlock the Digital Opera-
tor and lift the Digital Operator in the arrow
2
direction to remove the Digital Operator as shown in the
following illustration.
• Removing the Front Cover
Press the left and right sides of the front cover in the arrow
1
directions and lift the bottom of the cover
in the arrow
2
direction to remove the front cover as shown in the following illustration.
1. Loosen the two screws for the front cover fixing bracket and remove the bracket.
Installation Chapter 2
