Omron SYSDRIVE 3G3FV CE Series User Manual

!
!
!
!
!
!
!
2-7
2-1-2 Installation Conditions
H Cautions and Warnings
Caution Do not install the Inverter near combustible objects. Otherwise, a fire may
occur.
Caution Do not install the Inverter in a place where it is exposed to dust or rubbish.
Otherwise, a fire may occur.
Caution Prevent any foreign matter from entering into the Inverter. Otherwise, a fire or
equipment trouble may occur.
Caution Provide specified spaces between the Inverter and the control panel and also
between the Inverter and other units. Otherwise, a fire or equipment trouble
may occur.
Caution Do not apply any strong impact to the Inverter. Otherwise, damage to the
Inverter or cause equipment trouble may occur.
WARNING Install a stopping device for safety purposes. Otherwise, an injury may occur.
(The holding brake is not a stopping device for safety purposes.)
WARNING Install an external emergency stop device so that the power supply can be
turned OFF and operation can be stopped instantaneously in case of an
emergency. Otherwise, an injury may occur.

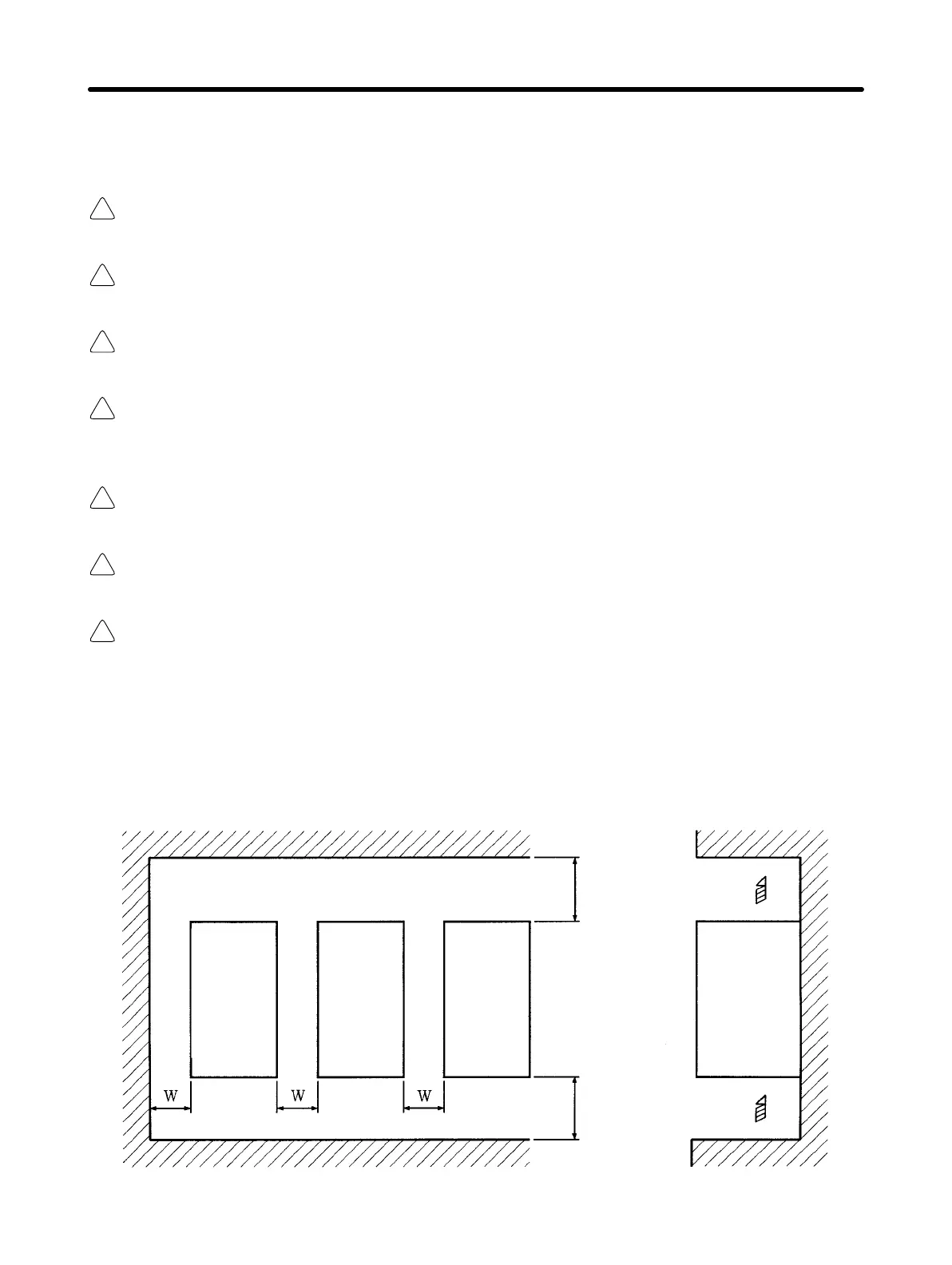

H Direction and Dimensions
• Install the Inverter on a vertical surface so that the characters on the nameplate are oriented upward.
• When installing the Inverter, always provide the following installation space to allow normal heat dis-
sipation from the Inverter.
W = 30 mm min.
Inverter Inverter Inverter
120 mm min.
120 mm min.
Air
Side
Air
Installation Chapter 2
