Omron SYSDRIVE 3G3FV CE Series User Manual

2-2
2-1 Mounting

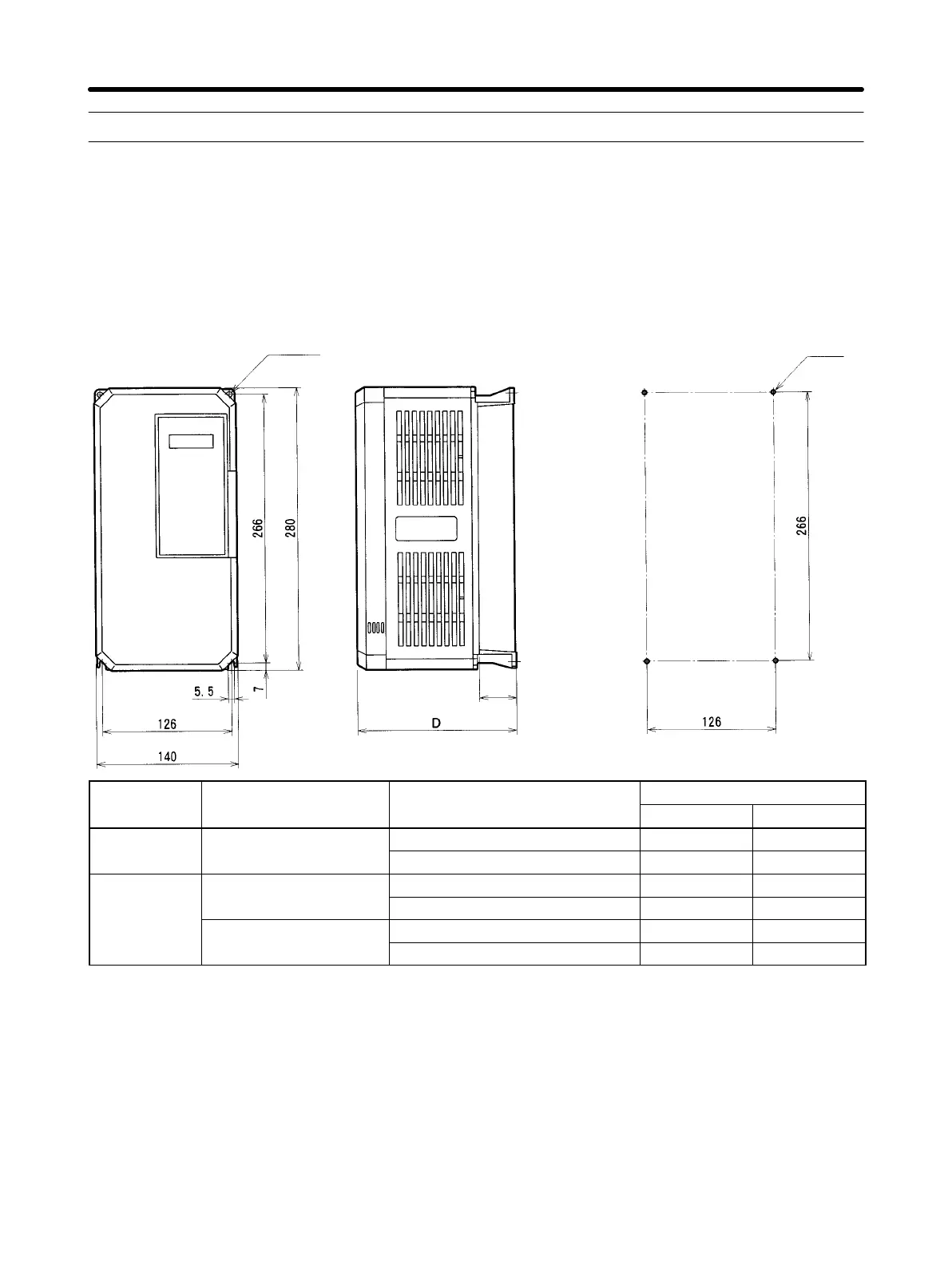

2-1-1 Dimensions
H 3G3FV-A4004-CE/-A4007-CE/-A4015-CE/-A4022-CE/-A4037-CE
3G3HV-AB004-CE/-AB007-CE/-AB015-CE/-A4004-CE/-A4007-CE
3G3HV-A4015-CE/-A4022-CE/-A4037-CE
D External Dimensions D Mounting Dimensions
Two, 5.5 dia.
Four, M5
D2
Series Voltage class Model 3G3FV-/3G3HV-
Dimensions (mm)
D D2
3G3FV 400-V
A4004-CE/A4007-CE 160 39
A4015-CE/A4022-CE/A4037-CE 180 59
3G3HV 200-V (single phase)
AB004-CE 160 39
AB007-CE/AB015-CE 180 59
400-V
A4004-CE/A4007-CE 160 39
A4015-CE/A4022-CE/A4037-CE 180 59
Installation Chapter 2
