Omron SYSDRIVE 3G3FV CE Series - Page 14

2-3
H 3G3FV-A4055-CE/-A4075-CE
3G3HV-AB022-CE/-AB037-CE/-A4055-CE/-A4075-CE

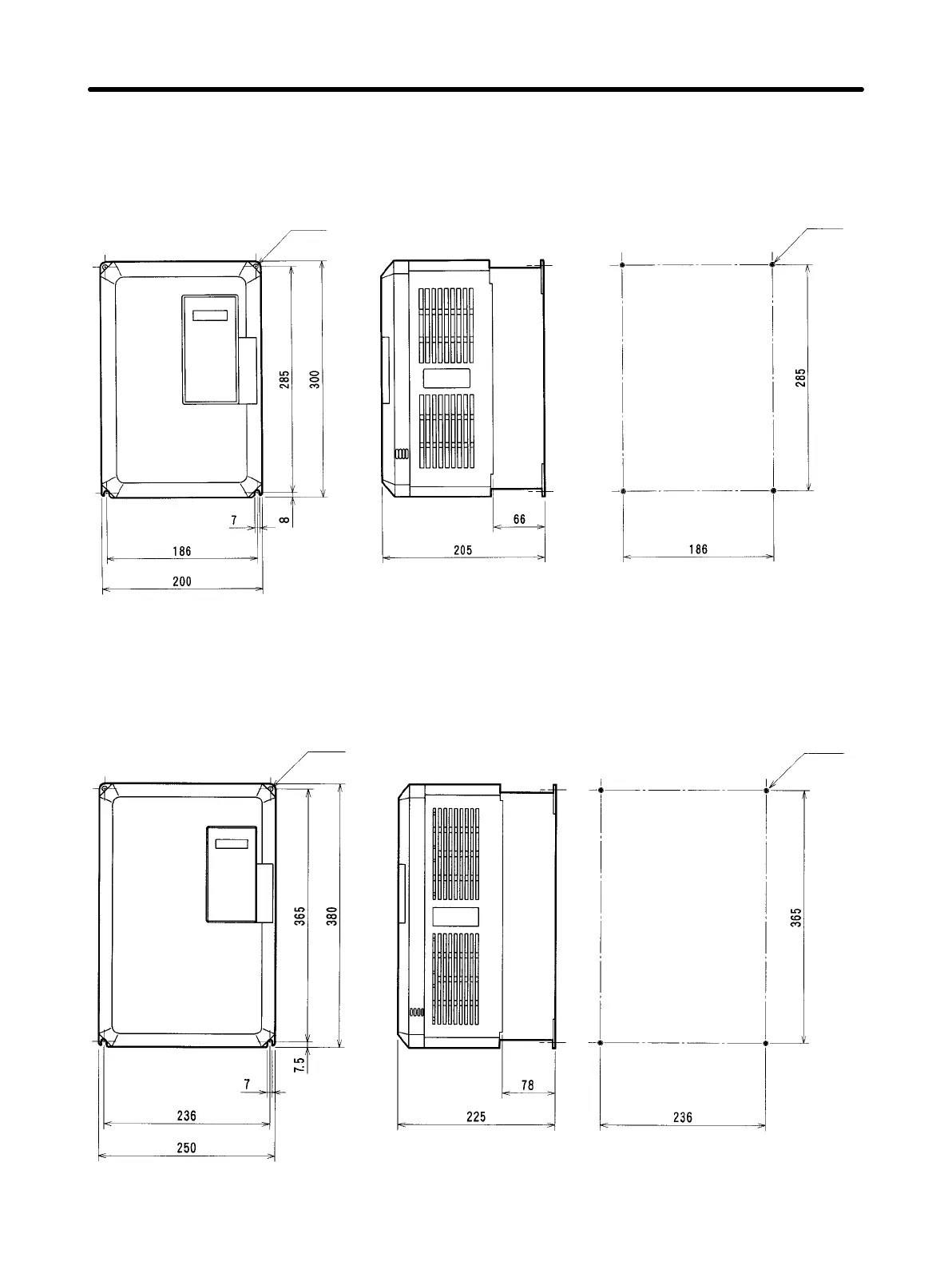

D External Dimensions D Mounting Dimensions
Two, 7 dia.
Four, M6
H 3G3FV-A4110-CE/-A4150-CE
3G3HV-A4110-CE/-A4150-CE
D External Dimensions D Mounting Dimensions
Two, 7 dia.
Four, M6
Installation Chapter 2
