17 Analog Input/Output Option Board
17-10
CP2E CPU Unit Software User’s Manual(W614)
z Applicable Cables
Solid wire or ferrules can be used.
• Recommended solid wire
• Recommended ferrules
Note Do not connect bare stranded wires directly to terminals.

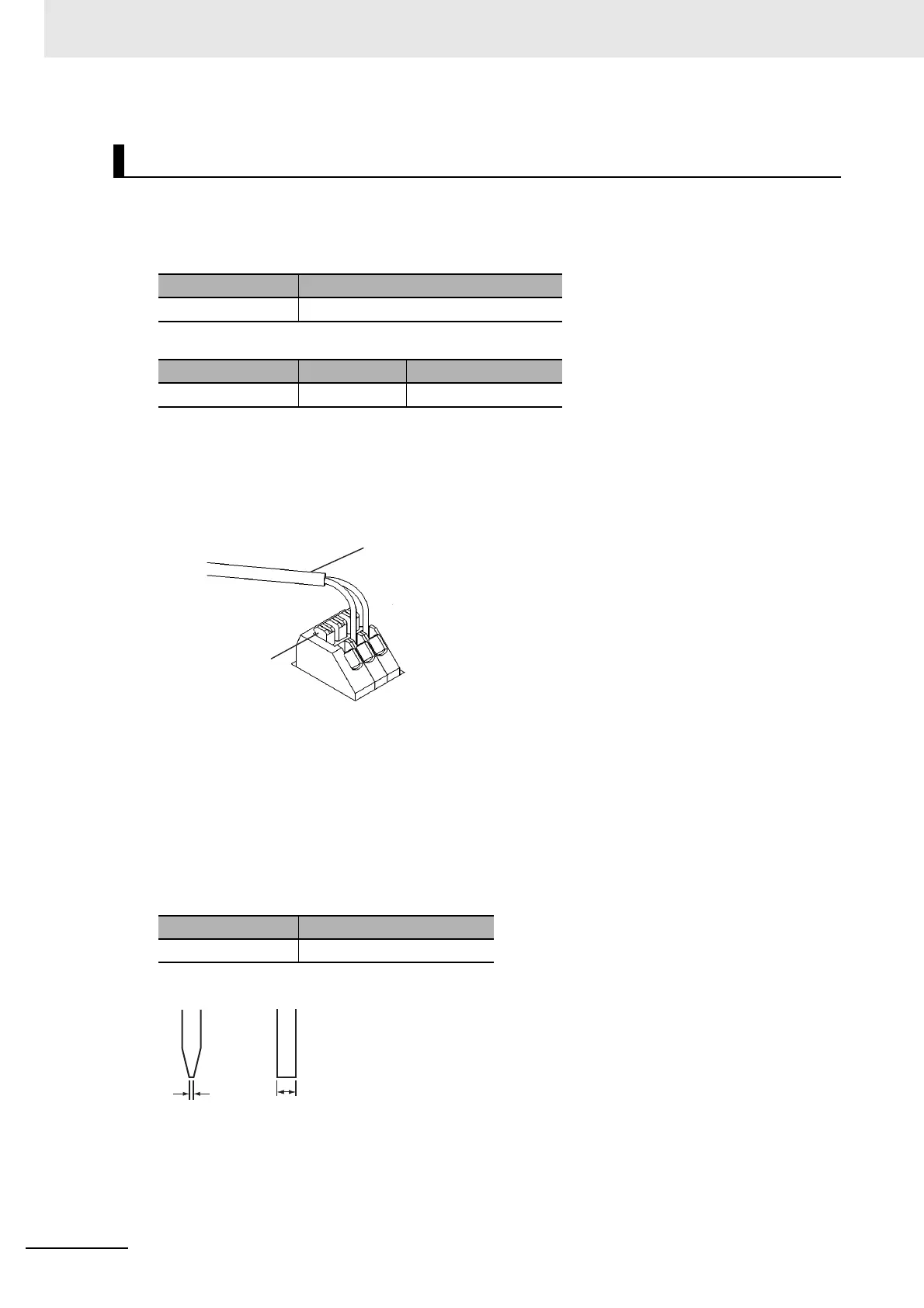

z Terminal Wiring
When wiring the analog I/O terminal block, treat either solid or stranded wires directly.
• To make the connection, press the release button in with a small flat blade screwdriver and push
the line in while the lock is released. Remove the screwdriver and lock it inside.
• To disconnect the wiring, press the release button in with a small flat blade screwdriver and pull
the line out while the lock is released.
Note 1 Ferrules without plastic sleeve cannot be used.
2 When using stranded wire, twist the core so that the barbed wires cannot protrude.
3 Do not solder-plate the end of cable.
The screwdriver shown below is recommended for wiring.
Applicable Cables and Terminal Wiring
Wire type Wire size
Solid Wire
0.2mm
2
to 0.5mm
2
(AWG24 to AWG20)
Manufacturer Model Applicable wire
Phoenix Contact AI-0.25-12
0.2mm
2
(AWG24)
Model Manufacturer
SZS 0.4×2.5 Phoenix Contact
Release button
2-conductor shielded
twisted-pair cable
0.4mm
Side Front
2.5mm
To Next Page
