18 Programming Device Operations
CP2E CPU Unit Software User’s Manual(W614)
18-5 Online Monitoring and Debugging
18
18-5-1 Monitoring Status
18-5 Online Monitoring and Debugging
This section describes how to use CX-Programmer to monitor and debug a ladder program.
It is possible to display the execution status of a ladder program. This enables checking the execution of
the ladder program.
Change the CP2E’s operating mode to MONITOR mode to display the execution status.
The execution status of the ladder program will be displayed.
The Ladder Section Window can be split. This enables displaying multiple locations within a ladder pro-
gram so that you can check them at the same time.
18-5-1 Monitoring Status

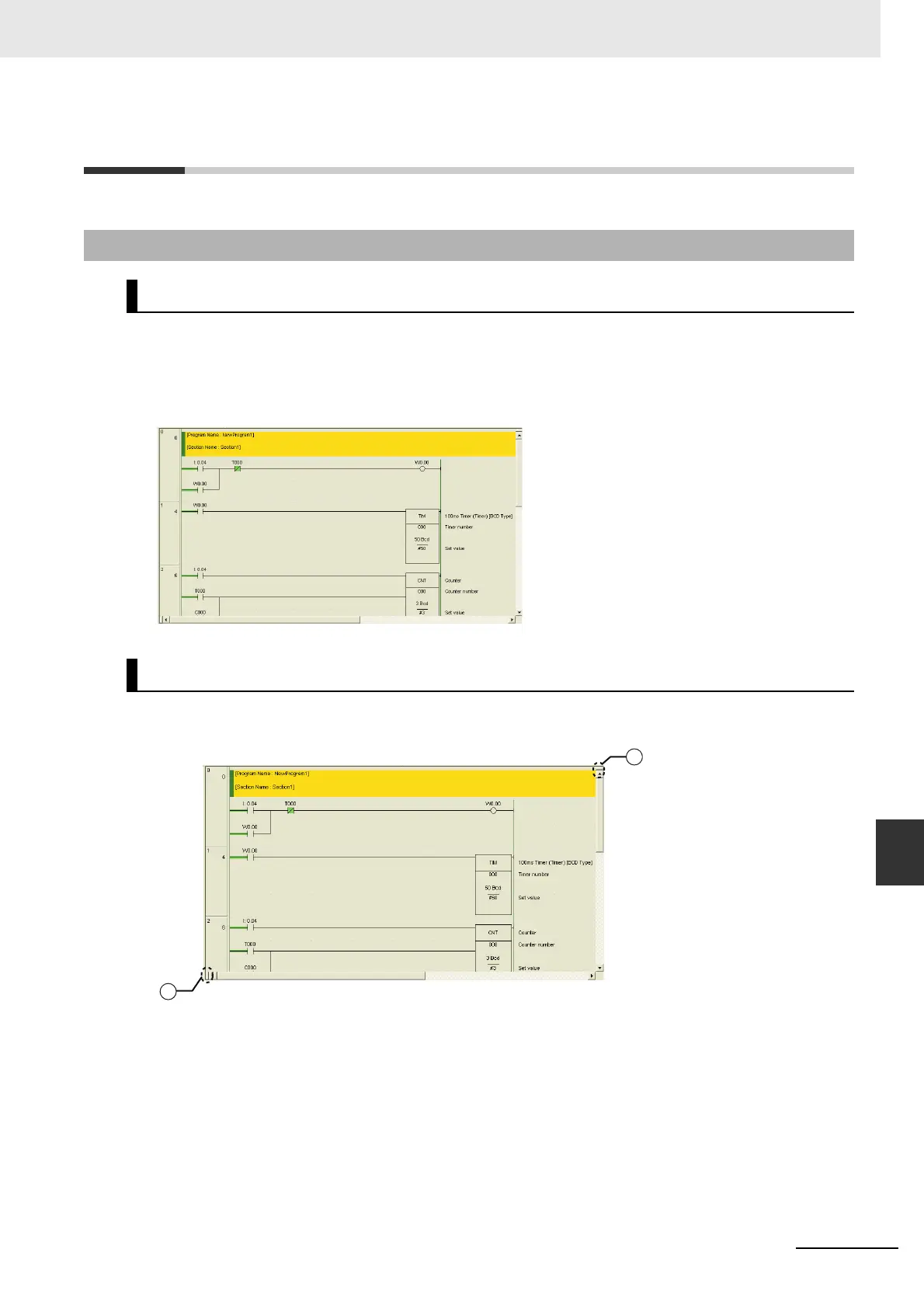

Displaying Execution Status
Displaying the Execution Status for More than One Location
1
1
