18-11
18 Programming Device Operations
CP2E CPU Unit Software User’s Manual(W614)
18-3 Creating a Ladder Program
18

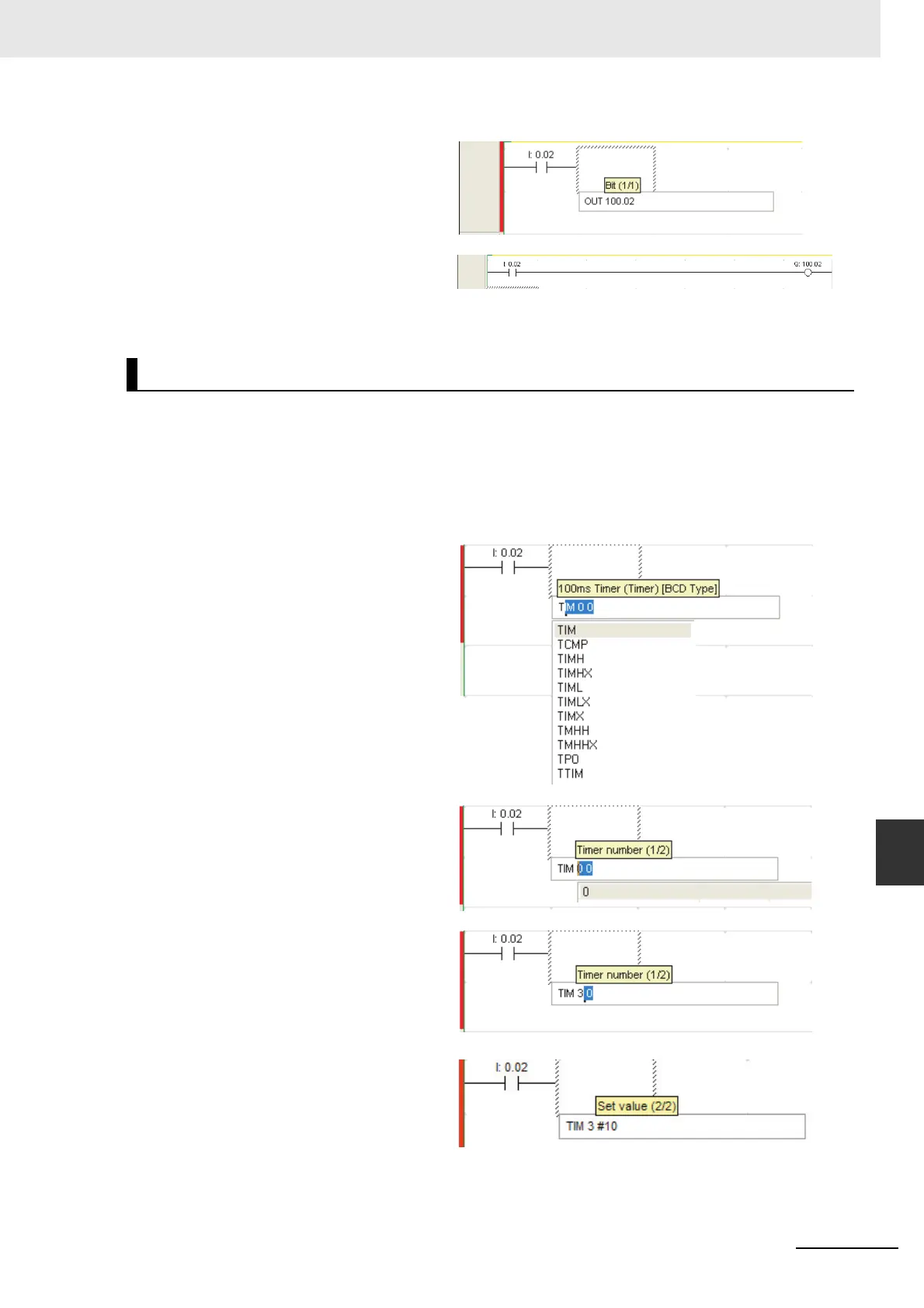

18-3-1 Inputting a Ladder Program
A mnemonic can be entered directly as a character string.
When you enter the first letter, a list of candidate mnemonics will be displayed. Use the Up Cursor and
Down Cursor Keys to move up and down through this list, and then press the Enter Key to make a
selection. Then, input the operands.
z Example: TIM Instruction
3 For an address other than CIO
100.00, input the address from the
keyboard. Here, “100.02” has been
input.
4 Press the Enter Key.
This completes inputting the OUT-
PUT instruction.
Inputting Instructions
1 Press the T Key.
A list of instructions beginning with T
will be displayed.
2 Press the Enter Key.
“Timer number (1/2)” will be dis-
played, and “0” will be displayed in
reverse video.
3 Input the timer number.
For example, input “3” and then
press the Enter Key.
4 Input the timer set value.
For example, input “#10.”
