When rungs are copied and then pasted, it is possible to automatically increment the addresses by the
specified number when pasting the rungs.
Example: When the following rung is copied, the bit addresses can be incremented by +16, and the
word address can be incremented by +10 when pasting the rung.
1

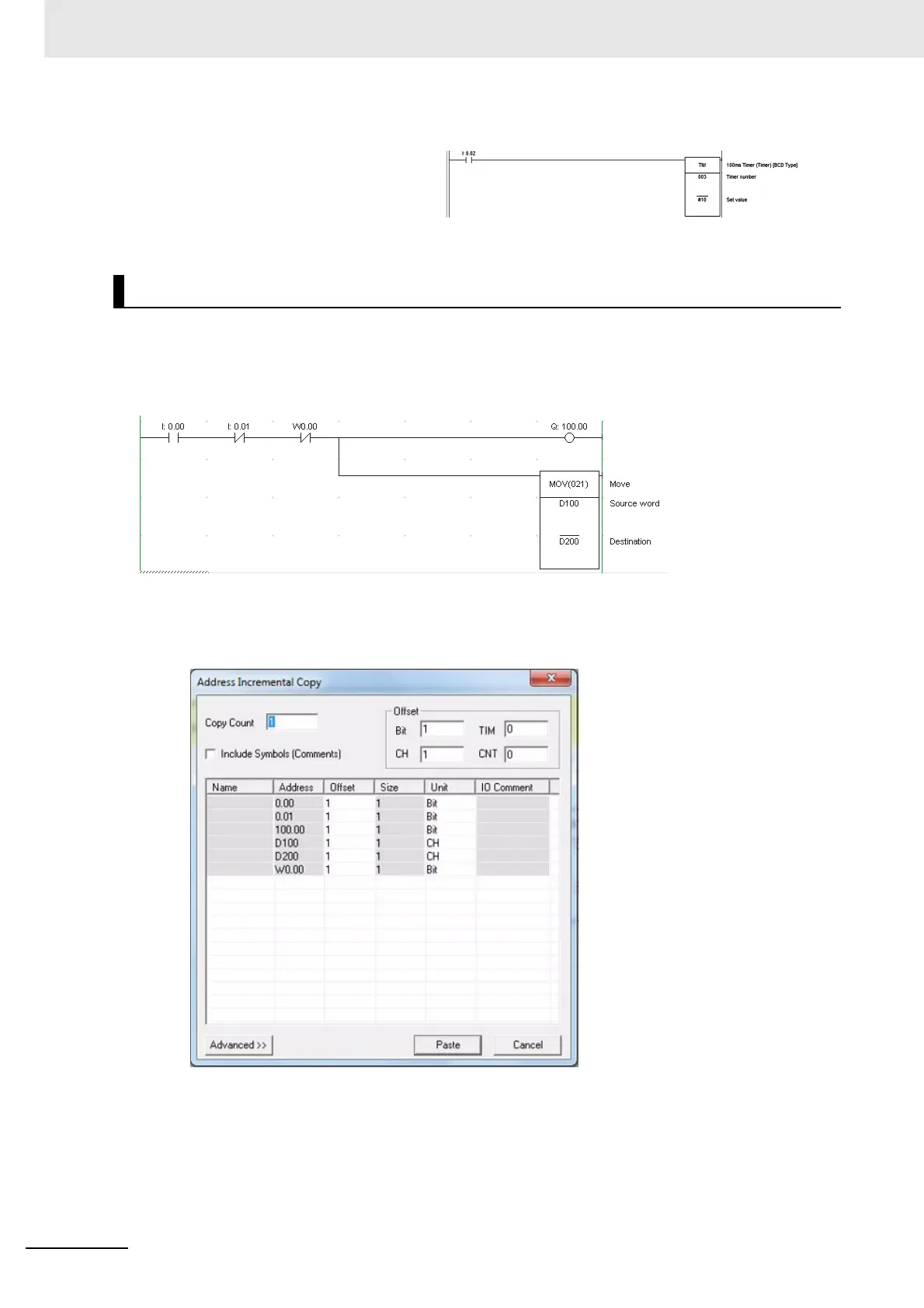

Select the above rung and then select Address Increment Copy from the Edit Menu.
The following dialog box will be displayed.
2
In the Offset Area set the Bit Field to 16 and the CH Field to 10 for this example.
Click the Paste Button.
As shown below, the addresses are automatically incremented and the rung is pasted as the
next rung.
5
Press the Enter Key.
This completes inputting the TIM
instruction.
Copying Rungs Using the Automatic Address Increment Function
