17
7.5 mm max.7.5 mm max.

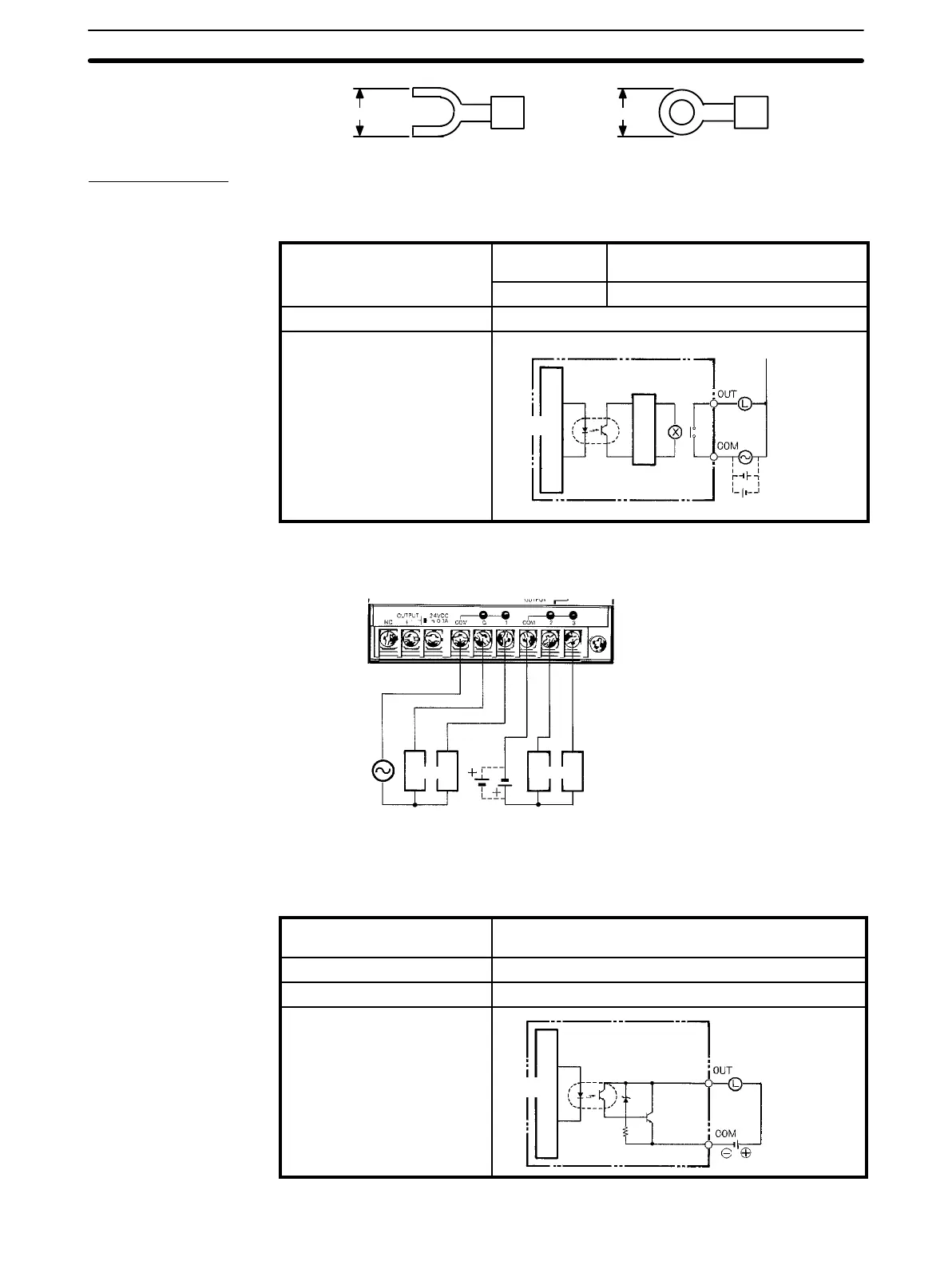

Output Circuits
Refer to Appendix B Specifications for detailed specifications.
Relay Contact Outputs
Maximum switching
capacity
Resistive loads
250 VAC, 2 A (cosf=1), 24 VDC, 2A/pt
Inductive loads
250 VAC, 0.5 A (cosf=0.4)/pt
Minimum switching capacity 5 VDC, 100 mA
Circuit configuration
Internal
circuit
Insulating
Photocoupler
250 VAC,
24 VDC max.
Use seperate
power supplies
for load power
sources
Relay’s power (24 V)
is internally supplied
Internal
circuit
The following example uses an SP10 CPU.
250 VAC
max.
Loads
AC load
power supply
DC load
power supply
Loads
24 VDC
Transistor Outputs
Maximum switching
capacity
24 VDC
+10%
/
–15%
, 0.3 A
Leakage current 0.1 mA max.
Residual voltage 1 V max.
Circuit configuration
Insulating
photocoupler
Internal
circuit
24 VDC
Wiring Section 2-3
