0Ć000CONT SEARCH

0000

Find the address prior

to the insertion point

Insert the

instruction

Program After Insertion

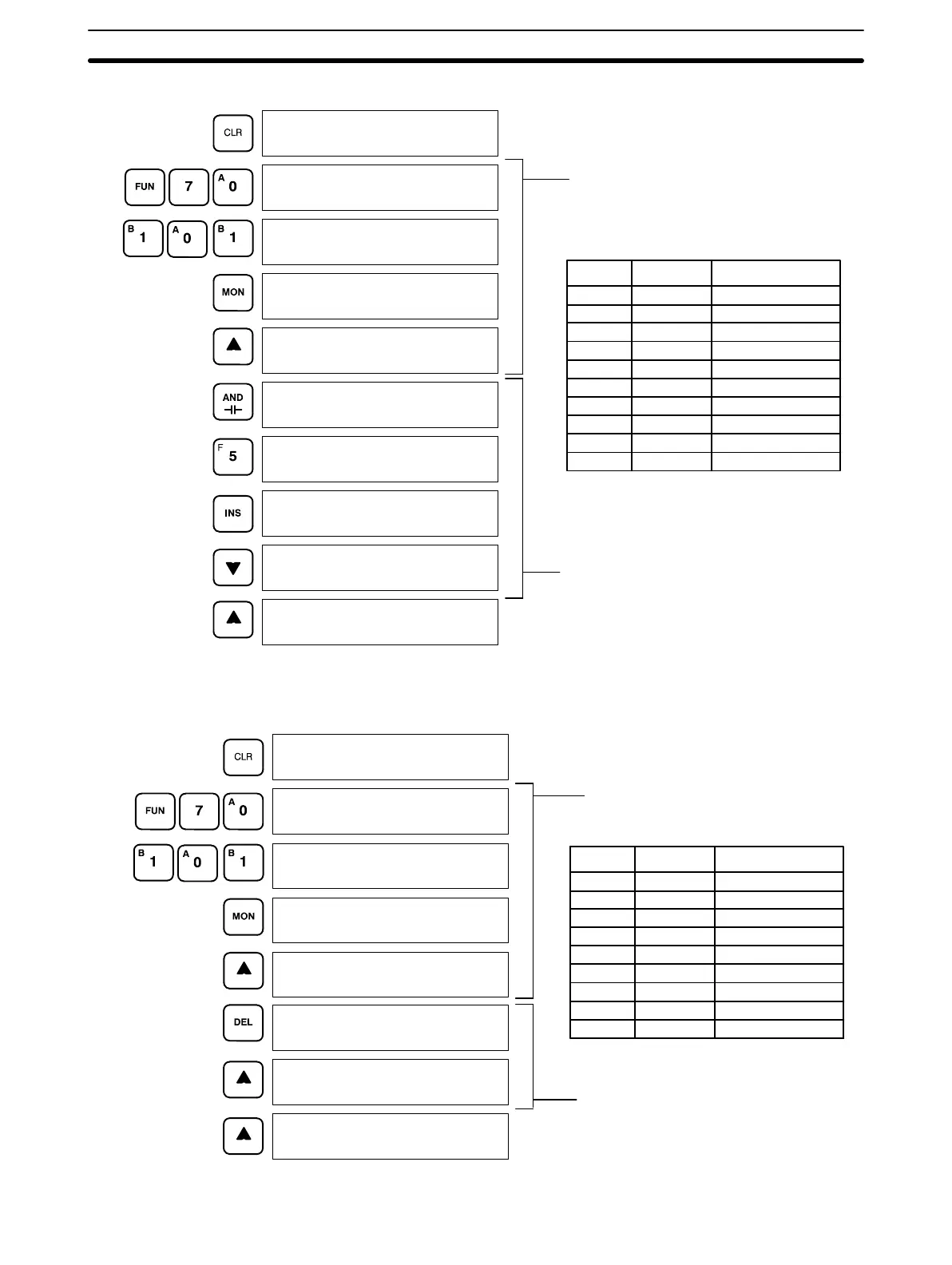

Inserting an Instruction

0Ć000

0Ć000CONT SEARCH

0101

0Ć007CONT SEARCH

OUT 0101

0Ć006READ

AND NOT 0004

0Ć006

AND 0000

0Ć006

AND 0005

0Ć006INSERT?

AND 0005

0Ć007INSERT END

AND NOT 0004

0Ć006READ

AND 0005

Address Instruction Operands

000 LD 0000

001 AND 0001

002 LD 0001

003 AND NOT 0002

004 OR LD -

005 AND 0003

006 AND 0005

007 AND NOT 0004

008 OUT 0101

009 END(01) -

000 LD 0000

001 AND NOT 0001

002 LD 0001

003 AND NOT 0002

004 OR LD -

005 AND 0003

006 AND 0005

007 OUT 0101

008 END(01) -

Find the instruction

that requires deletion.

Confirm that this is the

instruction to be deleted.

Program After Deletion

Deleting an Instruction

0Ć007 DELETE?

AND NOT 0004

0Ć007DELETE END

OUT 0101

0Ć006READ

AND 0005

Address Instruction Operands

0Ć000CONT SEARCH

0000

0Ć000

0Ć000CONT SEARCH

0101

0Ć008CONT SEARCH

OUT 0101

0Ć007READ

AND NOT 0004

Inputting the Program Section 3-5
