Wiring Section 2-2
42

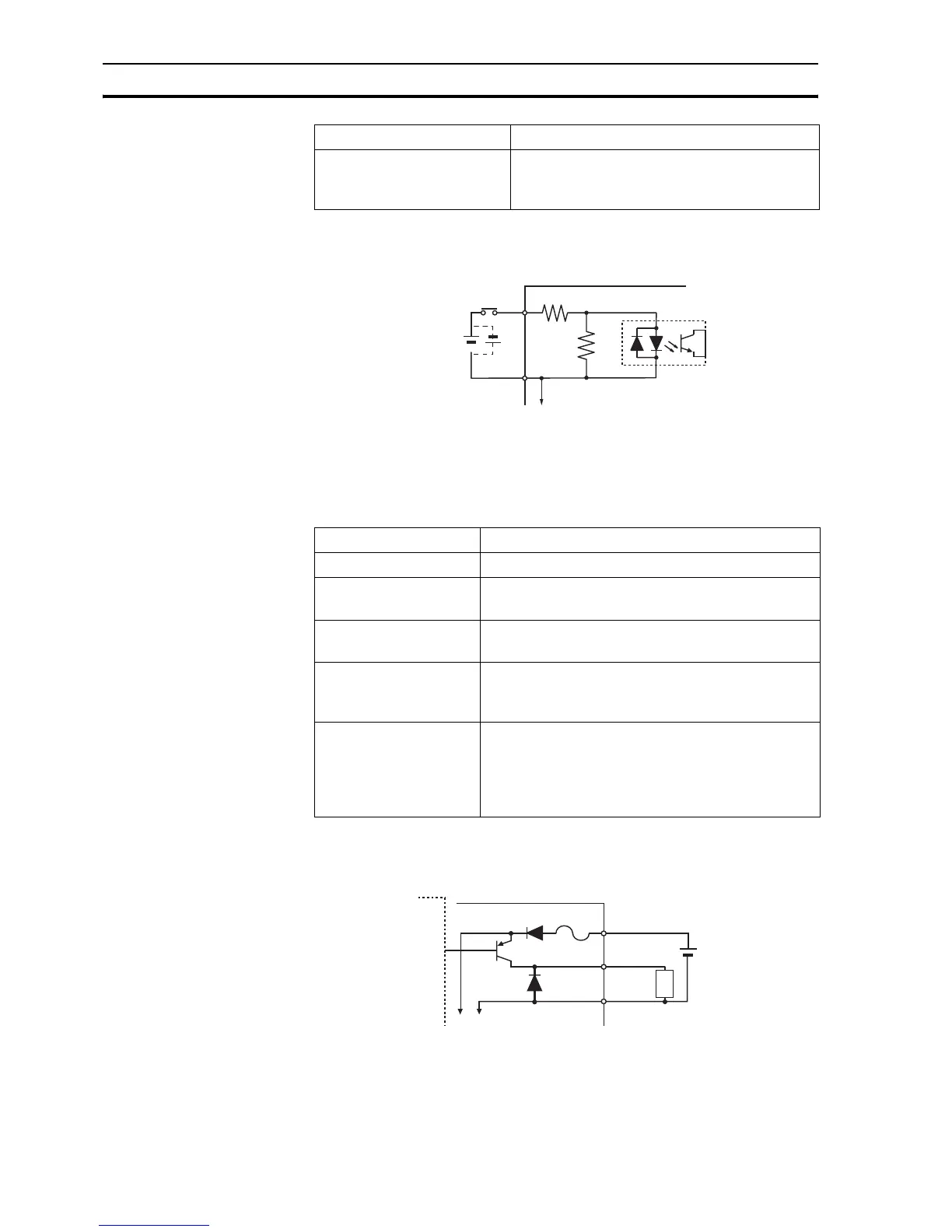

Circuit configuration for input 4 to input 15
The table below shows the digital output specifications of output 8 to output 15
for the I/O.
/i
Circuit configuration for output 4 to output 15
Ambient operating temperature 0°C to 55°C
When all digital inputs are on: max. 45°C
When max. 8 digital inputs are on: max. 55°C
1. For UL certified applications always use, for external power supply, a
Class 2 power supply.
Item Specification
Type PNP
Maximum voltage 24 VDC +10%
See footnote
1
1. For UL certified applications always use, for external power supply, a
Class 2 power supply.
Current capacity 100 mA for each output
800 mA in total for the group of 8 outputs
Protection Over current
Over temperature
2 A fuse on common
Maximum response time 250 µs for ON, 350 µs for OFF, if the servo period equals
0.5 ms or 1.0 ms
500 µs for ON, 600 µs for OFF, if the servo period equals
2.0 ms
150 µs when the HW_PSWITCH is used
Item Specification
7
COM
Common for Input circuits
External power
supply 24V
1
I4
CJ1W-MCH72
External
power
supply
24V
Load
2A Fuse
24V output supply
28
19 O8
27
0Voutput
Equivalent
circuit
To other output circuits
Internal circuits (galvanically
isolated from the system)
CJ1W-MCH72
