Omron V1000 Product Information

V1000 5

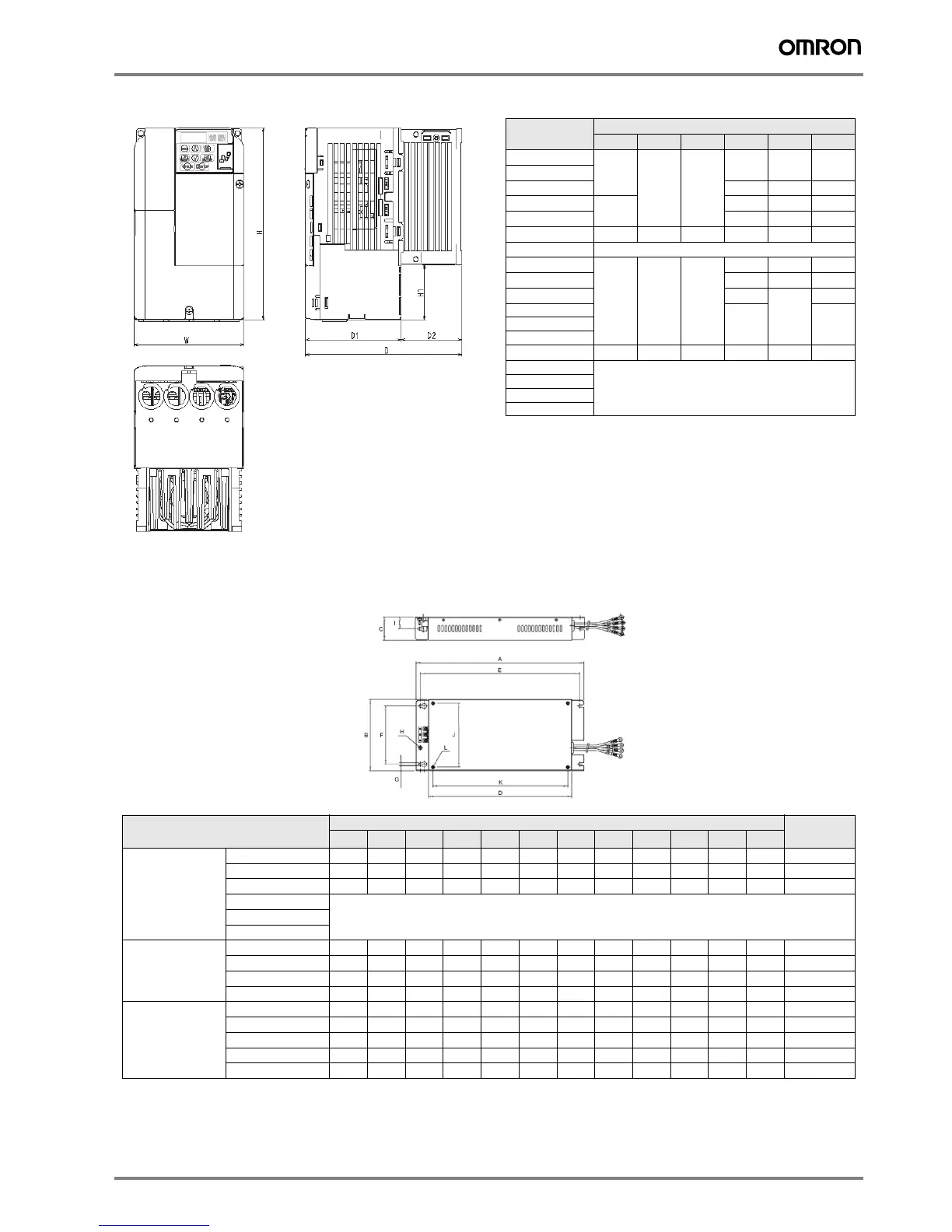

Built-in Filter Dimensions
Schaffner footprint Filters
VZA@
Dimensions in mm
W H H1 D1 D2 D
B0P1
68+
178 50
69.5 6.5 76
B0P2
B0P4 79.5 38.5 118
B0P7
108
77.9 59.6 137.5
B1P5 89.4 64.6 154
B2P2
140 183 55 96.4 66.6 163
B4P0
Under development
40P2
108 178 50
69.4 11.6 81
40P4 29.6 99
40P7
77.9
59.6
137.5
41P5
94.4 154
42P2
43P0
44P0
140 183 55 76.4 66.6 143
45P5
Under development
47P5
4011
4015
Schaffner model
Dimensions
Weight
KG
A B C D E F G H I J K L
3x200 V
A1000-FIV2010-SE 194 82 50 160 181 62 5.3 M5 25 56 118 M4
A1000-FIV2020-SE 169 111 50 135 156 91 5.5 M5 25 96 118 M4
A1000-FIV2030-SE 174 144 50 135 161 120 5.3 M5 25 128 118 M4
A1000-FIV2050-SE
Under developmentA1000-FIV2080-SE
A1000-FIV2100-SE
1x200 V A1000-FIV1010-SE 169 71 45 135 156 51 5.3 M5 22 56 118 M4 0.44
A1000-FIV1020-SE 169 111 50 135 156 91 5.3 M5 25 96 118 M4 0.75
A1000-FIV1030-SE 174 144 50 135 161 120 5.3 M5 25 128 118 M4 1.1
A1000-FIV1040-SE 174 144 50 135 161 150 5 M5 25 158 118 M4 1.3
3x400 V
A1000-FIV3005-SE 169 111 45 135 156 91 5.3 M5 22 96 118 M4 0.5
A1000-FIV3010-SE 169 111 45 135 156 91 5.3 M5 22 96 118 M4 0.7
A1000-FIV3020-SE 174 144 50 135 161 120 5 M5 25 128 118 M4 0.9
A1000-FIV3030-SE 304 184 56 264 288 150 6 M5 28 164 244 M5 1.8
A1000-FIV3050-SE 340 175 65 300 325 130 6 M6 32.5 160 285 M5 2.7

Omron V1000 Specifications

General

Cooling Method	Fan cooling
Enclosure Rating	IP20
Communication	Modbus RTU
Output Power	0.4-15kW
Output Frequency Range	0 to 400 Hz
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Supply Voltage	200-240V AC (3-phase)
