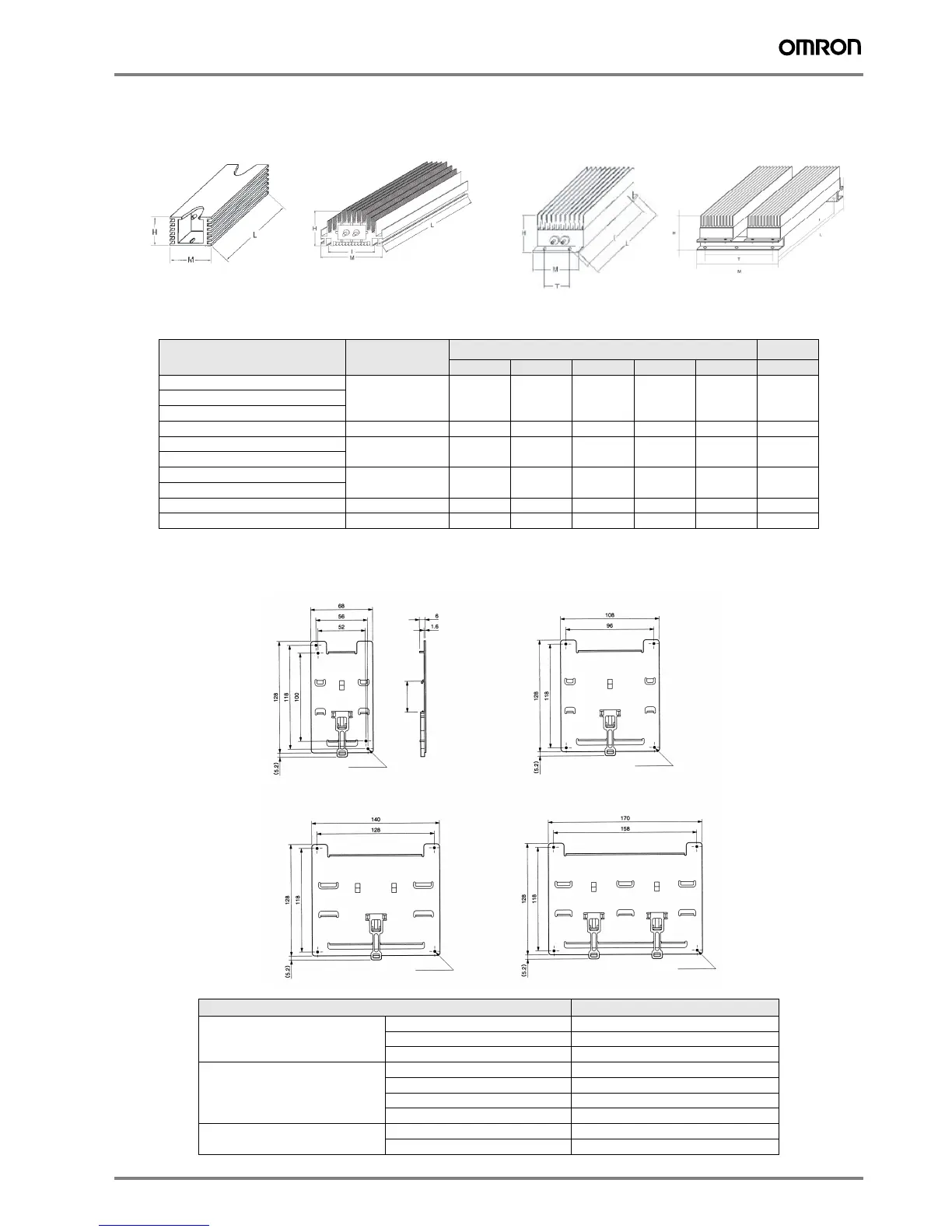

V1000 7
Resistor Dimensions
DIN rail mounting bracket
Type Fig.
Dimensions
Weight
L H M I T KG
A1000-REV00K4100-IE
1 200 27 36 189 - 0.425A1000-REV00k4020-IE
A1000-REV00K4030-IE
A1000-REV00k5075-IE 1 260 27 36 249 - 0.58
A1000-REV00k6050-IE
1 320 27 36 309 - 0.73
A1000-REV00K6013-IE
A1000-REV00k9040-IE
2 200 62 100 74 - 1.41
A1000-REV00K9010-IE
A1000-REV02K0010-IE 3 365 75 100 350 70 4.7
A1000-REV04k0032-IE 4 365 105 204 350 210 9,5
Inverter VZA@ DIN rail mounting bracket
3-phase 200 VAC
20P1/ 20P2 / 20P4/ 20P7 EZZ08122A
21P5/ 22P2 EZZ08122B
24P0 EZZ08122C
Single-phase 200 VAC
B0P1/ B0P2/ B0P4 EZZ08122A
B0P7/ B1P5 EZZ08122B
B2P2 EZZ08122C
B4P0 EZZ08122D
3-phase 400 VAC
40P2/ 40P4/ 40P7/ 41P5/ 42P2 EZZ08122B
44P0 EZZ08122C
Fig 1
Fig 2
Fig 4
Fig 3
EZZ08122A EZZ08122B
Four, M4 tap
Four, M4 tap
Four, M4 tap
Four, M4 tap
EZZ08122C
EZZ08122D
Side view
(common to
all the units)
35.1
DIN rail

Omron V1000 Specifications

General

Cooling Method	Fan cooling
Enclosure Rating	IP20
Communication	Modbus RTU
Output Power	0.4-15kW
Output Frequency Range	0 to 400 Hz
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Supply Voltage	200-240V AC (3-phase)
