Omron V1000 Product Information

6 Frequency inverters

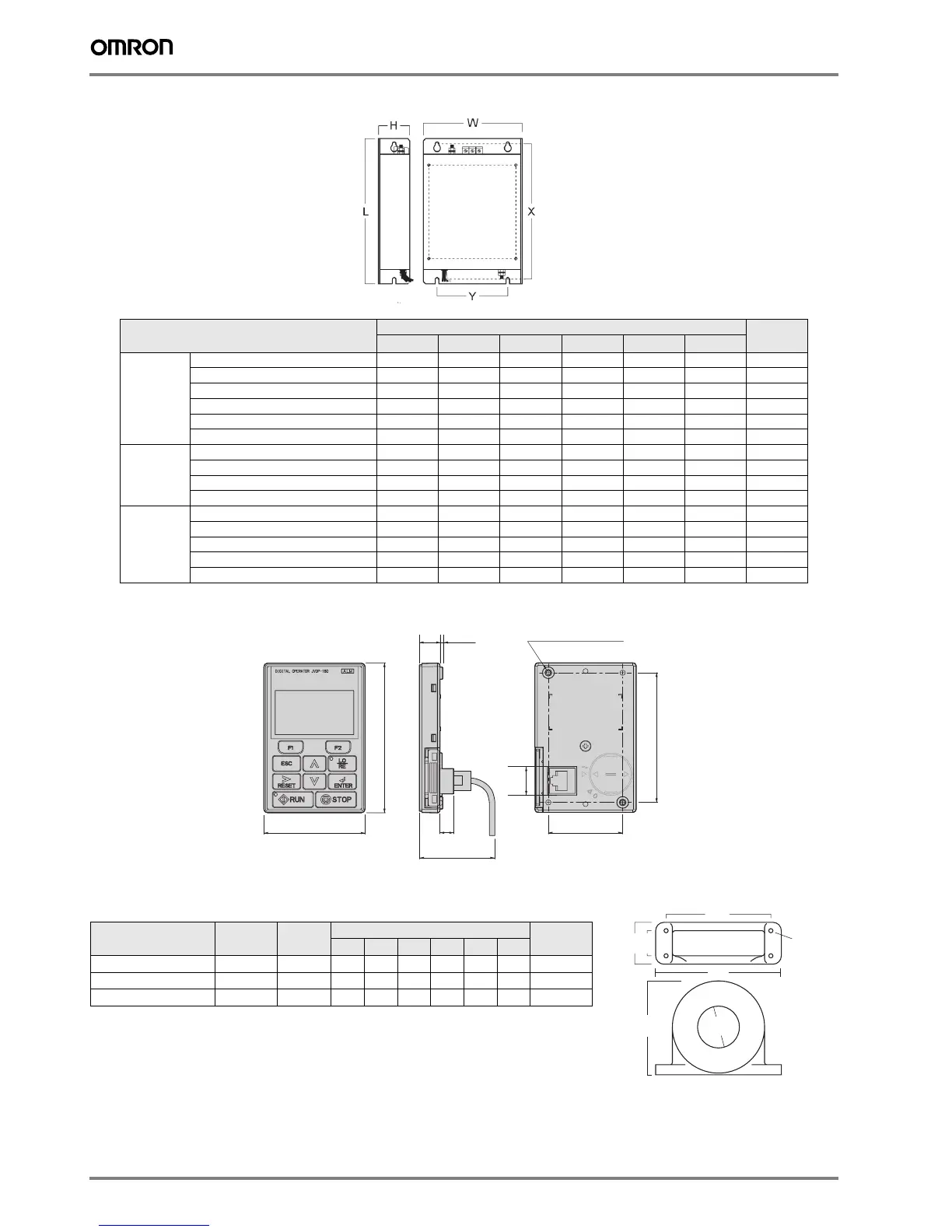

Rasmi footprint Filters
Remote LCD operator
Chokes
Rasmi model
Dimensions
Weight
KG
W H L X Y M
3x200 V
A1000-FIV2010-RE 82 50 194 181 62 M4 0.8
A1000-FIV2020-RE 111 50 194 181 62 M4 1.1
A1000-FIV2030-RE 144 50 174 161 120 M4 1.3
A1000-FIV2060-RE 150 52 320 290 122 M5 2.4
A1000-FIV2080-RE 188 62 362 330 160 M5 4.2
A1000-FIV2100-RE 220 62 415 380 192 M6 -
1x200 V A1000-FIV1010-RE 71 45 169 156 51 M4 0.6
A1000-FIV1020-RE 111 50 169 156 91 M4 1.0
A1000-FIV1030-RE 144 50 174 161 120 M4 5.3
A1000-FIV1040-RE 174 50 174 161 150 M4 -
3x400 V
A1000-FIV3005-RE 111 45 169 156 91 M4 1.1
A1000-FIV3010-RE 111 45 169 156 91 M4 1.1
A1000-FIV3020-RE 144 50 174 161 120 M4 1.3
A1000-FIV3030-RE 150 52 306 290 122 M5 2.1
A1000-FIV3050-RE 182 62 357 330 160 M5 2.9
Description D
diameter
Motor
KW
Dimensions Weight
Kg
L W H X Y m
A1000-FEV2102-RE 21 < 2.2 85 22 46 70 - 5 0.1
A1000-FEV2515-RE 25 < 15 105 25 62 90 - 5 0.2
A1000-FEV5045-RE 50 < 45 150 50 110 125 30 5 0.7
<1>
90 (3.54)
78 (3.07)
60 (2.36)
7.9
(0.31)
minimum 50 (1.96) Unit : mm (in)
12.2
(0.48)
1.6 (0.06)
Installation holes
(2-M3 screws, depth 5 (0.19))
44 (1.73)
15
(0.59)
X
H
YW
Ø m
L
Ø d

Omron V1000 Specifications

General

Cooling Method	Fan cooling
Enclosure Rating	IP20
Communication	Modbus RTU
Output Power	0.4-15kW
Output Frequency Range	0 to 400 Hz
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Supply Voltage	200-240V AC (3-phase)
