Omron ZX2 Series

ZX2 Short Manual.doc Page 3 of 12

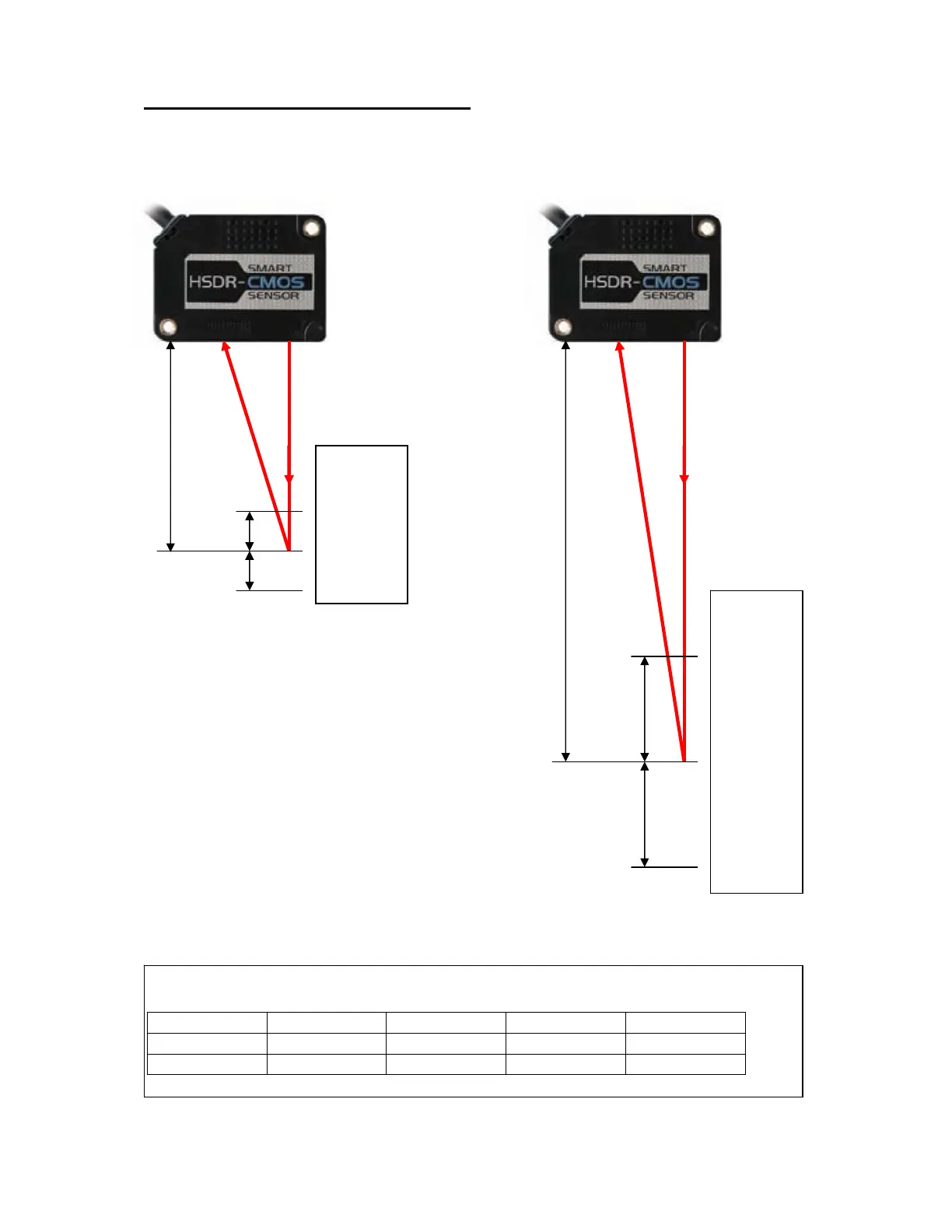

3 Default Measurement range
35mm
35mm
100mm
10mm
10mm
50mm
ZX2-LD50
(
L
)
ZX2-LD100
(
L
)
Display:
-10.000
0.000
+10.000
Display:
-35.000
0.000
+35.000
The analog output line can be set to following default ranges (see p.11 and p.12
for additional settings):
ZX2-LD50 ZX2-LD100 -5…5V 1V…5V 4mA…20mA
-10 -35 -5V +1V 4mA
+10 +35 +5V +5V 20mA
