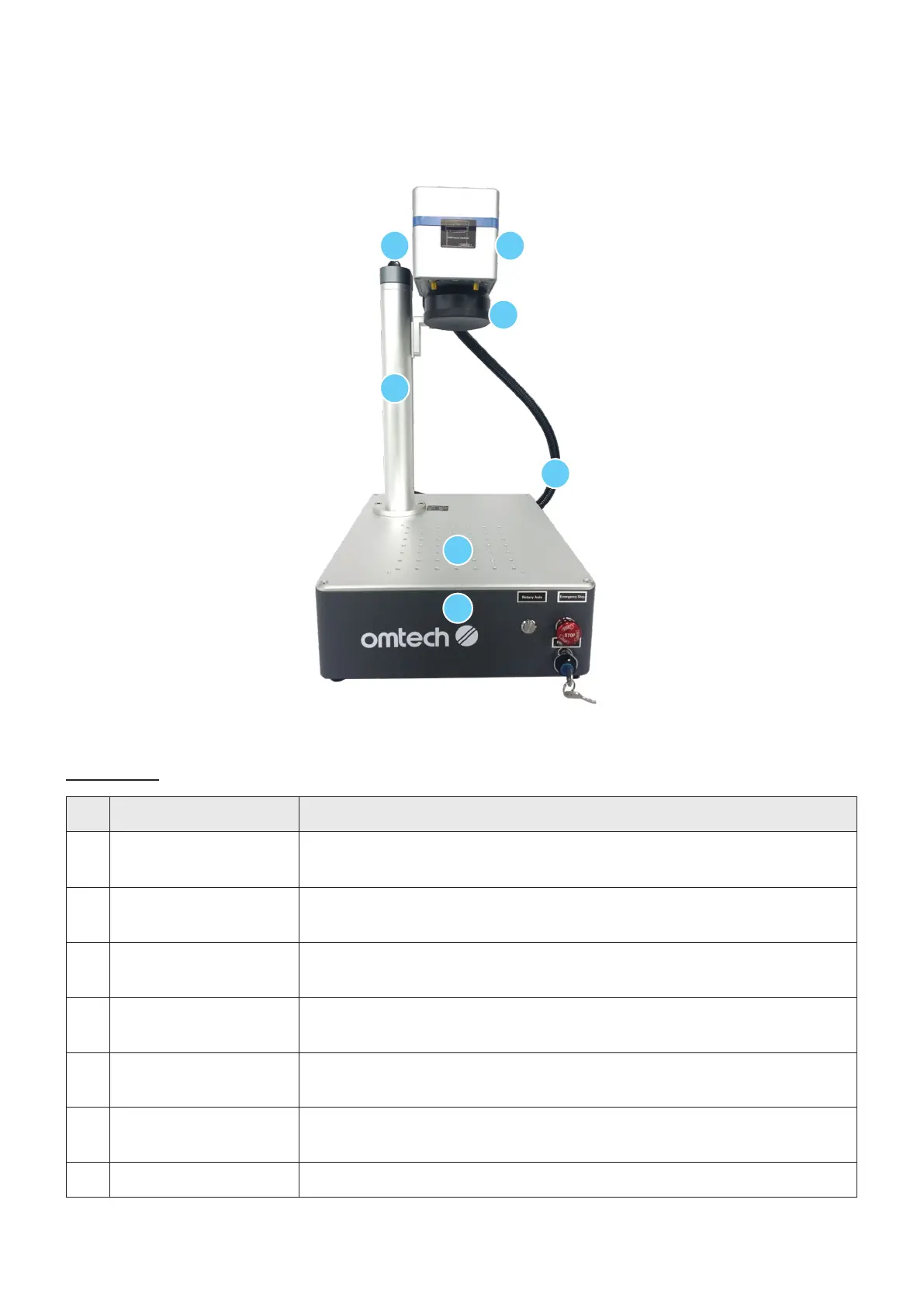

1.5 Components
No. Name Function
A Focus Adjustment Wheel
This wheel moves the laser arm up and down for the correct focus alignment
across dierent materials and thicknesses.
B Support Column
The support column holds the laser arm and provides stability and support to the
machine's moving parts.
C Galvo Scanning Head
The high-speed galvanometer scanning head focuses the laser beam to a fine
point, directing it to proper locations on the target material during engraving.
D Field Lens
The eld lens creates vivid markings on at surfaces by maintaining a consistent,
focused laser spot size across its working area.
E Worktable
This worktable holds the target material and has optional positioning holes for
aligning and positioning the marking targets accurately.
F Control Box
It houses the control system and various electronics that are responsible for
controlling and managing the operation of the machine.
G Laser Cable It transmits the laser beam from its source to the marking head.
A
B
C
D
E
F
G
Main Parts
To Next Page
