GND
REMOTE CONTROL
TERMINAL BLOCK
AT PLANT
WIRE
SIZE
DISTANCE
#18 to 900 ft.
#16
to 1500 ft.
#14 to 2400 ft.
#12 to 3700 ft.
11
MOMENTARY CONTACT
SWITCH
FRONT
Rev

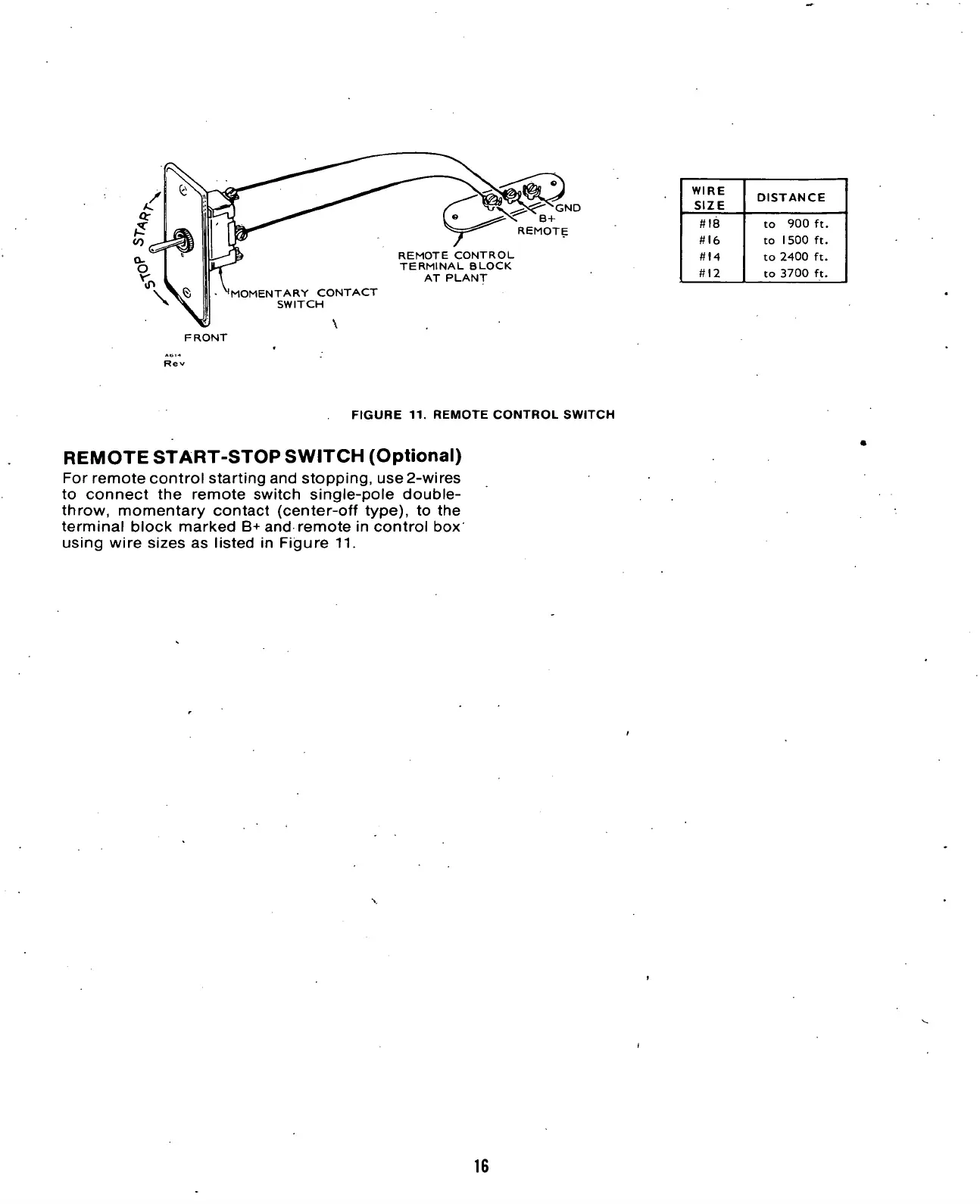

FIGURE 11. REMOTE CONTROL SWITCH
REMOTE START-STOP SWITCH (Optional)
For remote control starting and stopping, use 2-wires
to connect the remote switch single-pole double-
throw, momentary contact (center-off type), to the
terminal block marked B+and remote in control box
using wire sizes as listed in Figure 11.
16
