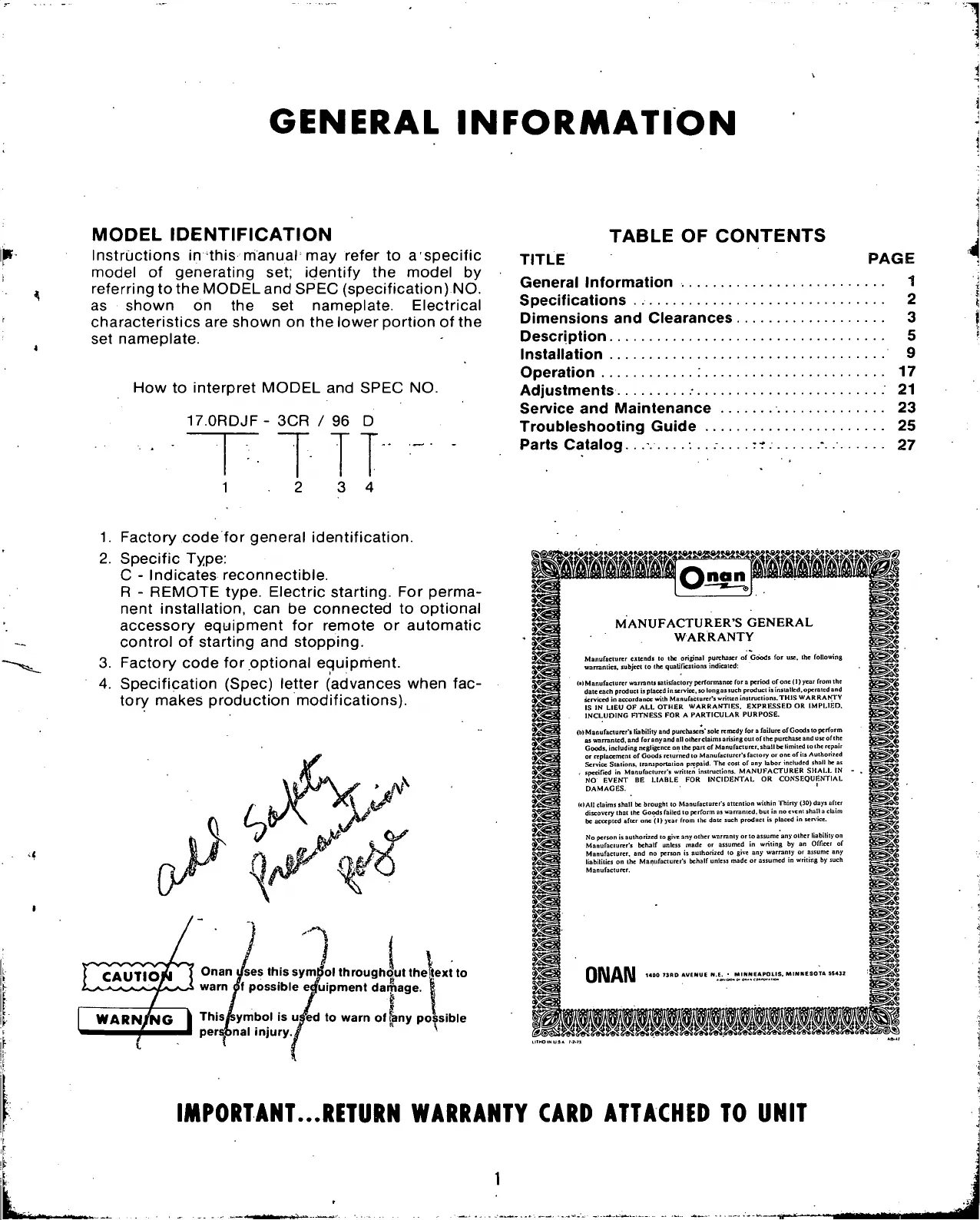

GENERAL
INFORMATION
MODEL IDENTIFICATION
Instructions in this manual may refer to a'specific
model of generating set; identify the model by
referring to the MODEL and SPEC (specification) NO.
as shown on the set nameplate. Electrical
characteristics are shown on the lower portion of the
set nameplate.
How to interpret MODEL and SPEC NO.
17.0RDJF - 3CR / 96 D
TABLE OF CONTENTS
TITLE PAGE
General Information 1
Specifications 2
Dimensions and Clearances 3
Description 5
Installation 9
Operation 17
Adjustments 21
Service and Maintenance 23
Troubleshooting Guide 25
Parts Catalog.. -. 27
3 4
1.
Factory code for general identification.
2.
Specific Type:
C - Indicates reconnectible.
R - REMOTE type. Electric starting. For perma-
nent installation, can be connected to optional
accessory equipment for remote or automatic
control of starting and stopping.
3. Factory code for optional equipment.
4.
Specification (Spec) letter (advances when fac-
tory makes production modifications).
WARN/NG ~\ This/symbol is u/ed to warn offany possible
J personal injury, j
Onan Uses this symbol throughout the|ext to
warn pf possible equipment damage.
Qnan
MANUFACTURER'S
GENERAL
WARRANTY
Manufaciurer extendi lo the original purchaser of Goods for use, Ihe following
warranties, subject (o Ihe qualificaiions indicated:
(») Manufacturer warrants salisfacloxy performance for a period of one (1) year from the
date each produci is placed in service, so longns such product is installed, operated and
serviced in accordance with Manufacturer's wrilten insimeiions.THIS WARRANTY
IS IN LIEU OF ALL OTHER WARRANTIES. EXPRESSED OR IMPLIED.
INCLUDING FITNESS FOR A PARTICULAR PURPOSE.
(b)
Manufacturer's liability and purchasers" sole remedy for a failure of Goods to perform
as warranted, and forany and all olherclaimsarisingoui oflhe purchase and use of ihe
Goods, including negligence on the pan of Manufacturer.shall be limited lo the repair
or replacement of Goods reiurned lo Manufacturer's faciory or one of its Authorized
Service Siaiions, tronsponation prepaid. The cost of any labor included shall be as
, specified in Manufacturer's written instructions. MANUFACTURER SHALL IN
NO EVENT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES. '
(OAII claims shall be broughi to Manufacturer's attention within Thiny (30) days after
discovery thai ihe Goods failed to perform os warranted, but in no event shall a claim
be accepted after one (1) year from ihe date such produci is placed in service.
No person is authorized io give any other warranty or to assume any oiher liability on
Manufacturer's behalf unless made or assumed in writing by an Officer of
Manufacturer, and no person is auihorizcd to give any warraniy or assume any
liabiliiies on ihe Manufacturer's behalf unless made or assumed in writing by such
Manufacturer.
IMPORTANT...RETURN
WARRANTY
CARD
ATTACHED
TO
UNIT
