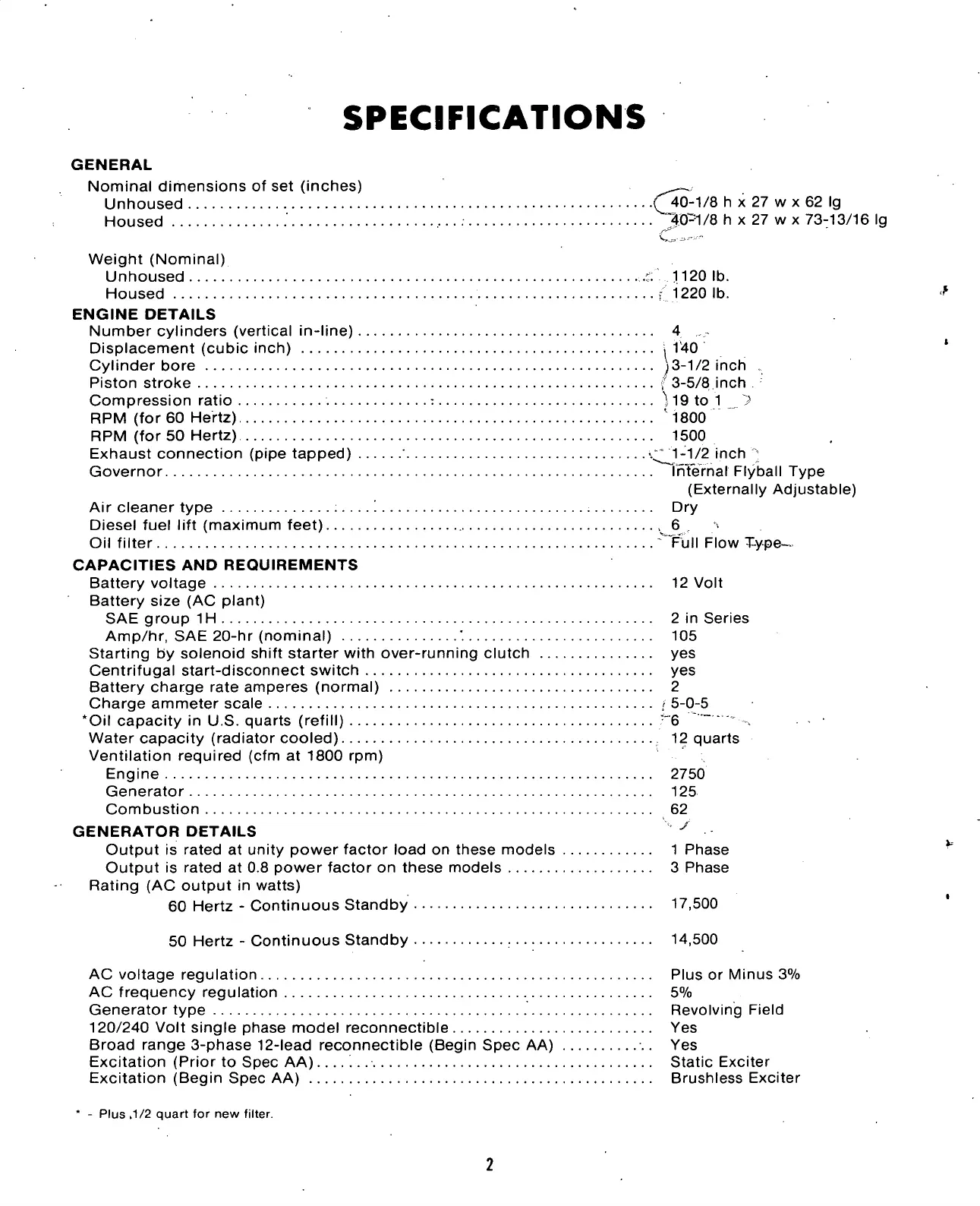

SPECIFICATIONS
GENERAL
Nominal dimensions of set (inches)
Unhoused
("40-1/8
h x 27 w x 62 Ig
Housed "40-1/8 h x 27 w x 73
:
13/16 Ig
Weight (Nominal)
Unhoused .'. 1120 Ib.
Housed r 1220 Ib.
ENGINE
DETAILS
Number cylinders (vertical in-line) 4
Displacement (cubic inch) \ 140
Cylinder bore )3-1/2 inch .
Piston stroke f 3-5/8.inch
Compression ratio : ^ 19 to 1 7
RPM (for 60 Hertz)
v
1800
RPM (for 50 Hertz) 1500
Exhaust connection (pipe tapped) \^-1/2 inch ^
Governor Internal Flyball Type
(Extemally Adjustable)
Air cleaner type Dry
Diesel fuel lift (maximum feet) , 6\,
Oil filter " "Full Flow Type-
CAPACITIES
AND
REQUIREMENTS
Battery voltage 12 Volt
Battery size (AC plant)
SAE group IH 2 in Series
Amp/hr, SAE 20-hr (nominal) '. 105
Starting by solenoid shift starter with over-running clutch yes
Centrifugal start-disconnect switch yes
Battery charge rate amperes (normal) 2
Charge ammeter scale / 5-0-5
*Oil capacity in U.S. quarts (refill) -"6 " ' ^
Water capacity (radiator cooled) 12 quarts
Ventilation required (cfm at 1800 rpm)
Engine 2750
Generator 125
Combustion 62
GENERATOR DETAILS *"
J
Output is rated at unity power factor load on these models 1 Phase
Output is rated at 0.8 power factor on these models 3 Phase
Rating (AC output in watts)
60 Hertz - Continuous Standby 17,500
50 Hertz - Continuous Standby 14,500
AC voltage regulation Plus or Minus 3%
AC frequency regulation 5%
Generator type Revolving Field
120/240 Volt single phase model reconnectible Yes
Broad range 3-phase 12-lead reconnectible (Begin Spec AA) Yes
Excitation (Prior to Spec AA) '.. .• Static Exciter
Excitation (Begin Spec AA) Brushless Exciter
* - Plus .1/2 quart for new filter.
