Onan RDJF Series User Manual

OIL BATH
AIR CLEANER
OOO
OOO 0 o
ooo
OOOOI
• o o O (
0 O 0 0 «
ooo o o o o e
KEEP OIL
AT THIS
LEVELr-
A863
"1
1
T
TO INTAKE
MANIFOLD
1^
PULSATION
FILTER
REPLACE BAFFLE EVERY
2,000 OPERATING HOURS
OVERFLOW HOSE
« = = A-r UJCD OILDRAIN
BREATHER
PULSATION
DAMPER
SPEC. A AND B ONLY
CAP AND OIL
LEVEL INDICATOR.
KEEP OIL
AT THIS LEVEL
NEVER OPERATE
ENGINE WITH OIL
BELOW THIS LEVEL
AS74
OIL LEVEL
•FULL
-LOW
ALWAYS REPLACE
CAP TIGHTLY, OR
OIL LEAKAGE MAY
OCCUR.
AFTER WASHING' ELEMENT IN
SOLVENT DIP IN ENGINE OIL AND
SQUEEZE AS DRY AS POSSIBLE.
ELEMENT
CLEAN
BALL
JOINT
BALL JOINT
RETAINER
MOISTENED FOAM TYPE
AIR CLEANER
BREATHER
TUBE CAP
TUBE FROM
AIR
CLEANER
BREATHER
TUBE BAFFLE
CRANKCASE BREATHER
SPEC. A AND B ONLY
CONNECTOR
(From fuel
transfer pump)
ELBOW
(To injection
pump)
DRAIN PRIMARY
FILTER
SECONDARY
FILTER
DRAIN
L
'^^J^JQJJ^ Drain plug on fuel filters can tolerate
A
_A_A_«>_A^V_ISVS^ only a limited amount of torque. Use
two wrenches in combination for breaking plug loose and
for final tightening.
B208
DUAL FUEL FILTER SYSTEM

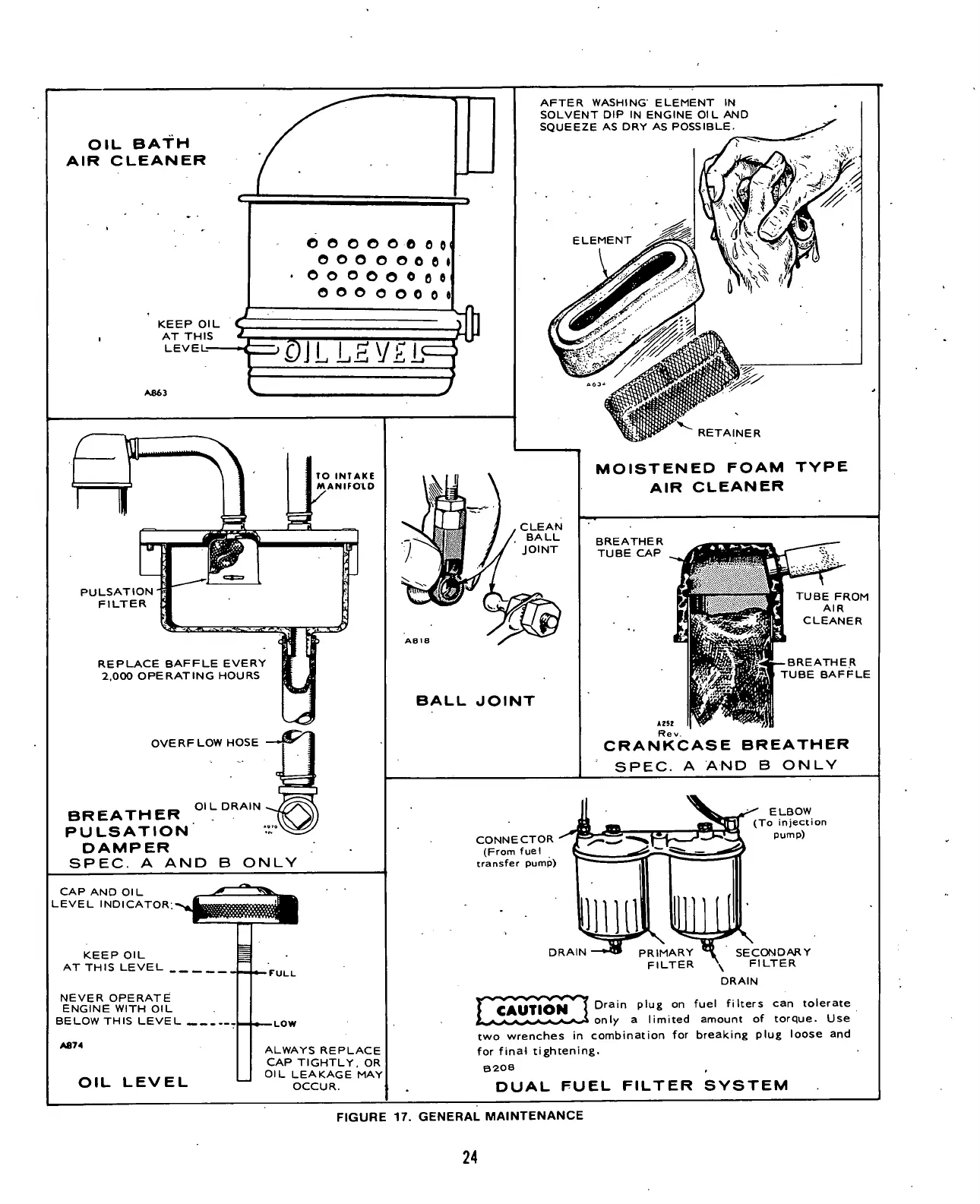

FIGURE 17. GENERAL MAINTENANCE
24
