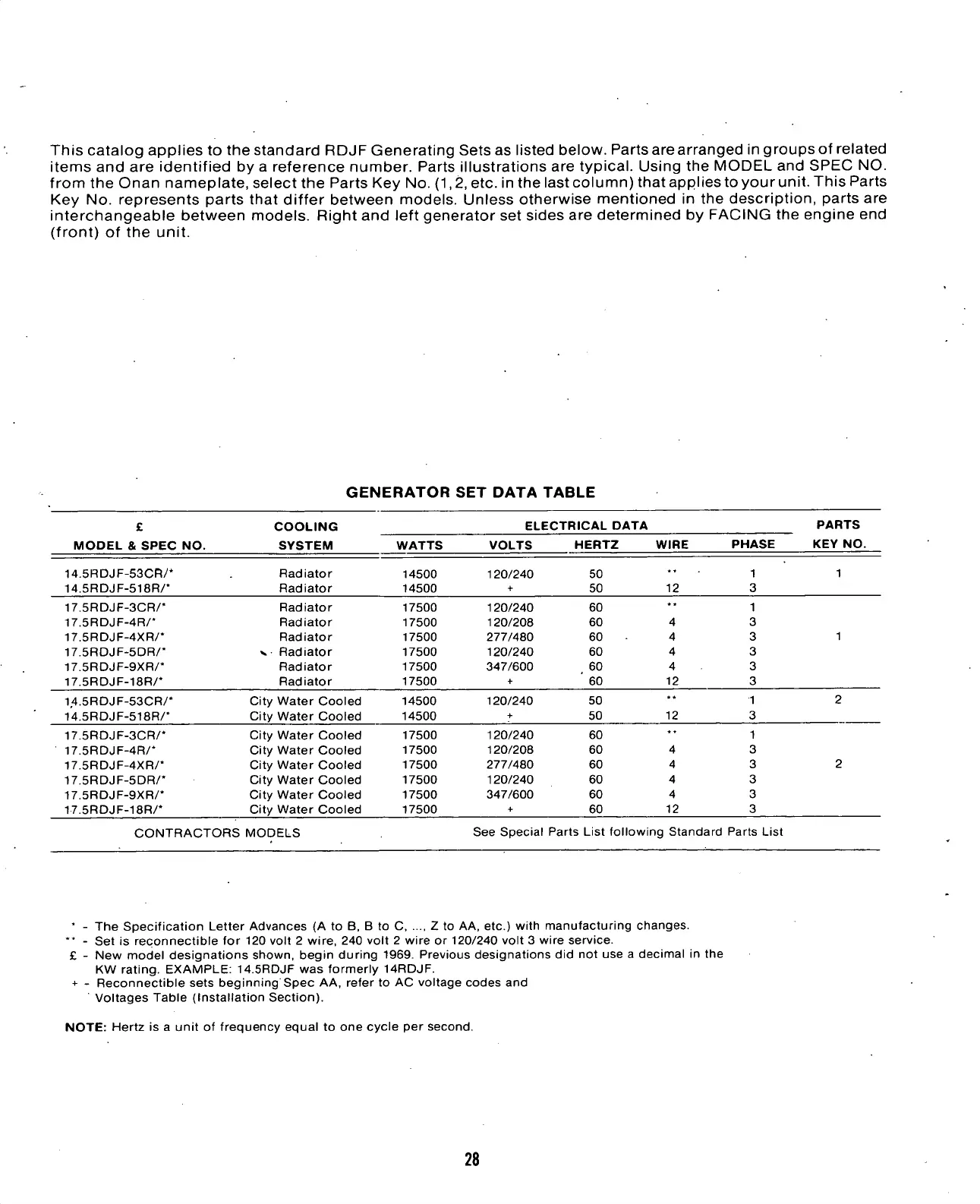

This catalog applies to the standard RDJF Generating Sets as listed below. Parts are arranged in groups of related
items and are identified by a reference number. Parts illustrations are typical. Using the MODEL and SPEC NO.
from the Onan nameplate, select the Parts Key No. (1,2, etc. in the last column) that applies to your unit. This Parts
Key No. represents parts that differ between models. Unless otherwise mentioned in the description, parts are
interchangeable between models. Right and left generator set sides are determined by FACING the engine end
(front) of the unit.
GENERATOR SET DATA TABLE
£
COOLING
ELECTRICAL DATA
PARTS
MODEL & SPEC NO.
SYSTEM WATTS VOLTS
HERTZ WIRE
PHASE
KEY NO.
14.5RDJF-53CR/*
Radiator
14500 120/240
50
1 1
14.5RDJF-518R/*
Radiator
14500
+
50 12
3
17.5RDJF-3CR/*
Radiator
17500
120/240
60
•*
1
17.5RDJF-4R/* Radiator
17500 120/208
60 4
3
17.5RDJF-4XR/* Radiator 17500 277/480 60
4 3
1
17.5RDJF-5DR/*
v Radiator
17500 120/240
60
4 3
17.5RDJF-9XR/* Radiator 17500 347/600
.
60
4 3
17.5RDJF-18R/*
Radiator 17500
+
' 60 12 3
1.4.5RDJF-53CR/*
City Water Cooled 14500
120/240 50
•*
1
2
l'4.5RDJF-518R/*
City Water Cooled 14500
+
50 12 3
17.5RDJF-3CR/*
City Water Cooled
17500 120/240 60
••
1
17.5RDJF-4R/* City Water Cooled
17500
120/208 60 4 3
17.5RDJF-4XR/*
City Water Cooled 17500
277/480 60
4 3 2
17.5RDJF-5DR/*
City Water Cooled
17500 120/240 60
4 3
17.5RDJF-9XR/* City Water Cooled 17500
347/600 60
4 3
17.5RDJF-18R/*
City Water Cooled 17500
+
60
12 3
CONTRACTORS MODELS
See Special Parts List following Standard Parts List
* - The Specification Letter Advances (A to B, B to C, Z to AA, etc.) with manufacturing changes.
** - Set is reconnectible for 120 volt 2 wire, 240 volt 2 wire or 120/240 volt 3 wire service.
£ - New model designations shown, begin during 1969. Previous designations did not use a decimal in the
KW rating. EXAMPLE: 14.5RDJF was formerly 14RDJF.
+ - Reconnectible sets beginning Spec AA, refer to AC voltage codes and
Voltages Table (Installation Section).
NOTE: Hertz is a unit of frequency equal to one cycle per second.
