Onbon OVP-L1X User Manual

www.onbonbx.com Page
8

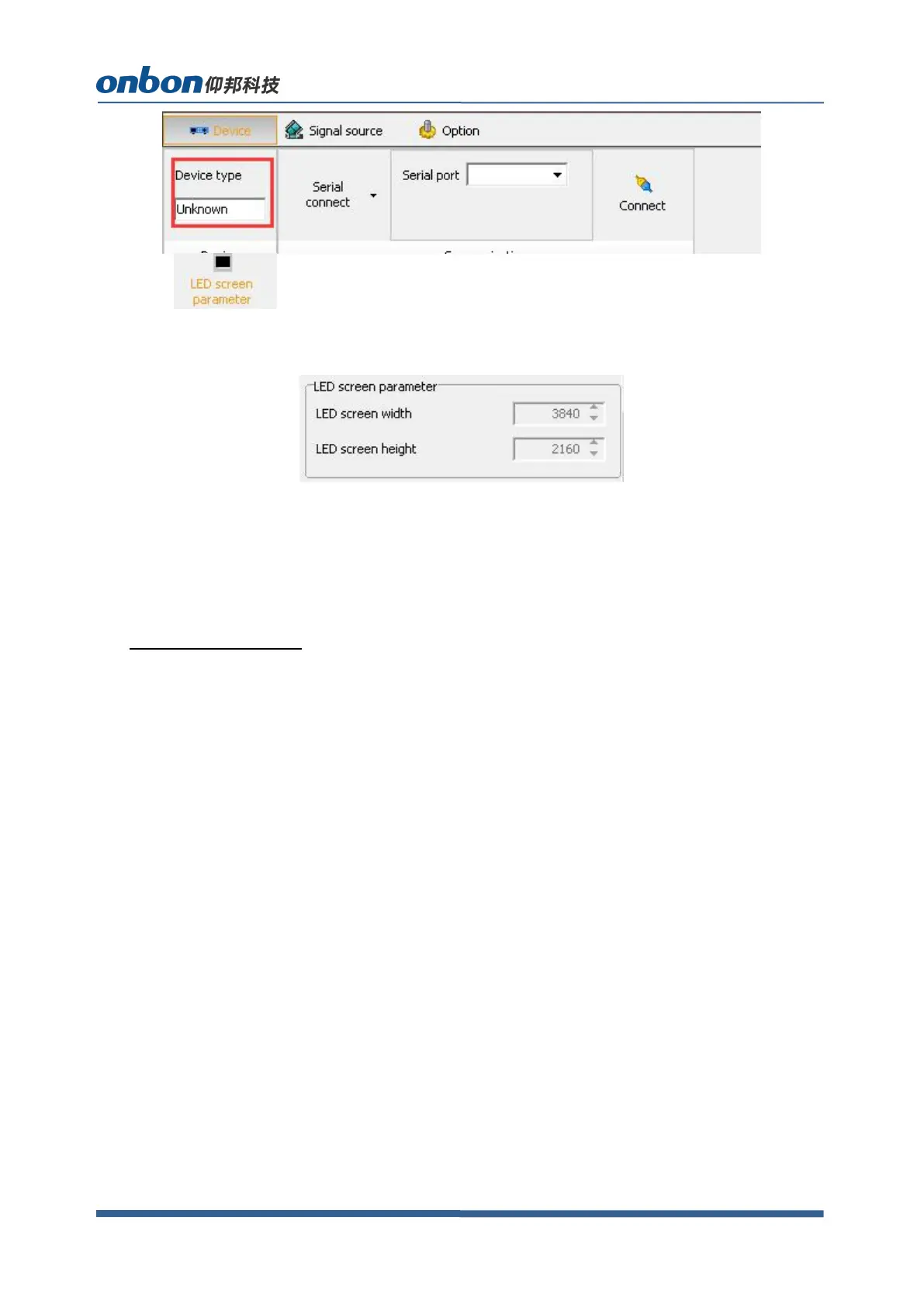

Click ,set the width and height of LED screen. Then, click “send” as to finish
the configuration to video controller. Check below:
OVP-L1X connects LED screen by LAN cable.
Each port supports maximum 650,000pixels @60Hz
Horizontal splicing: width≤3840, height≤2500, total pixels:≤1.3 million pixels
2. LAN Port Parameters
Support two modes:“Automatic distribution network port output” and “Custom
network pot output”
1. Automatic distribution network port output: Click “Automatic distribution network port
output” in “Debug mode”, software will distribute the output parameters according to
the connection of receiver. Check below:
