 Clear user mode：User can delete all parameters which is saved to this user mode by clear
user mode.
 Setup user mode：User can switch selected user mode as present image mode by setup
user mode.
Input source setting
Users can edit EDID of HDMI1, HDMI2 and DVI, as to give a “recommended input EDID”
or adjust VGA input signal source. In WIN7 system, when the “input EDID (recommended)” is
modified which is read by PC, the output resolution of PC will be modified too;But for WIN10
system, output resolution of PC won’t be changed, users need to operate manually.

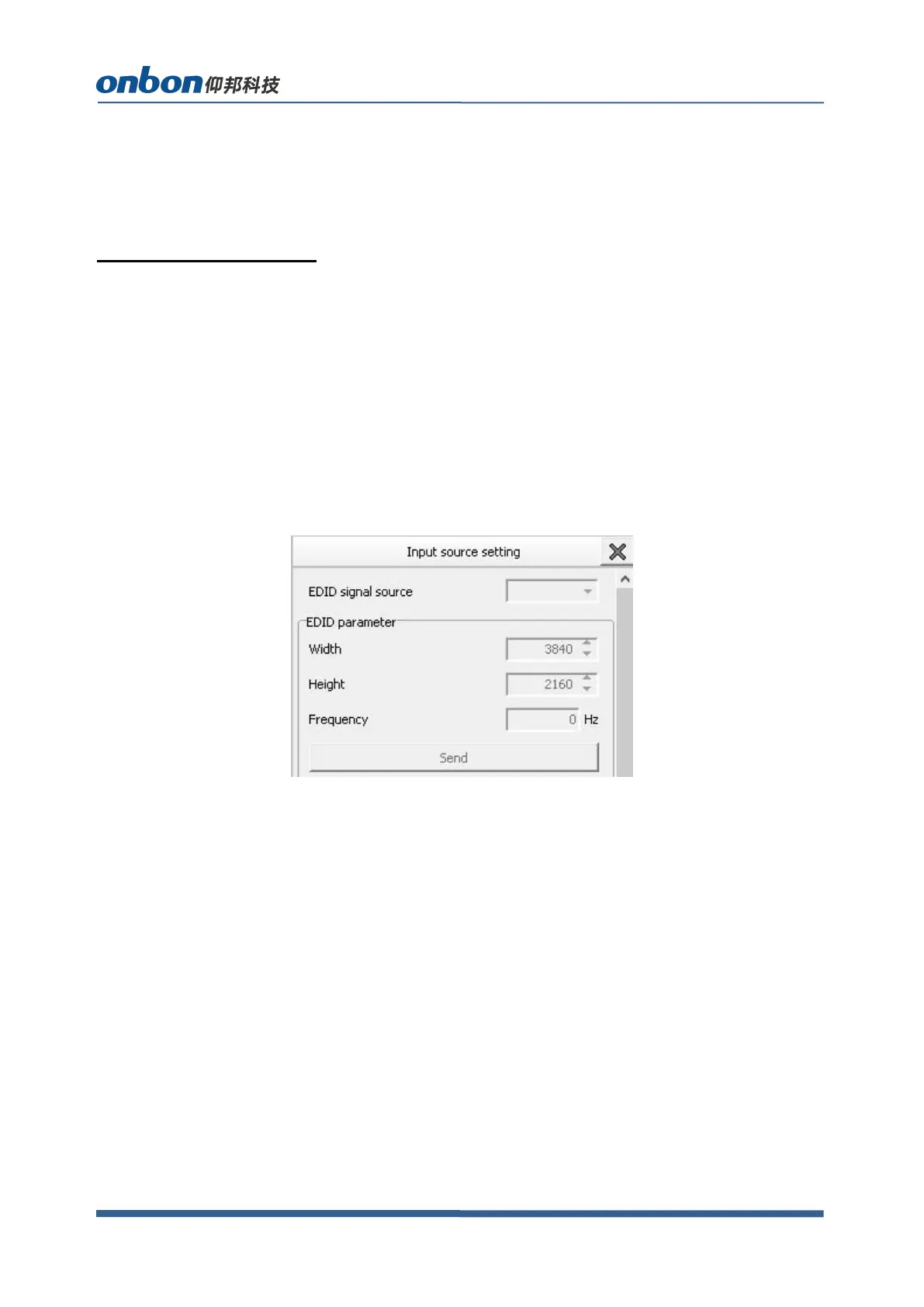

1. EDID Signal Source
Select “EDID”under Input signal source, then, input EDID signal source and EDID
parameters.
HDMI and DVI signal source:
 Width: 1920 adjust the width of input signal source, maximum width is 1920
 Height: 1080 adjust the height of input signal source, maximum height is 1080
 Frequency: 60Hz default is 60Hz
After finish EDID parameters, click “send”.
2. VGA signal source
Adjust VGA parameters, calibration of VGA ADC and CV ADC.
