Signal Source
1. Signal Source

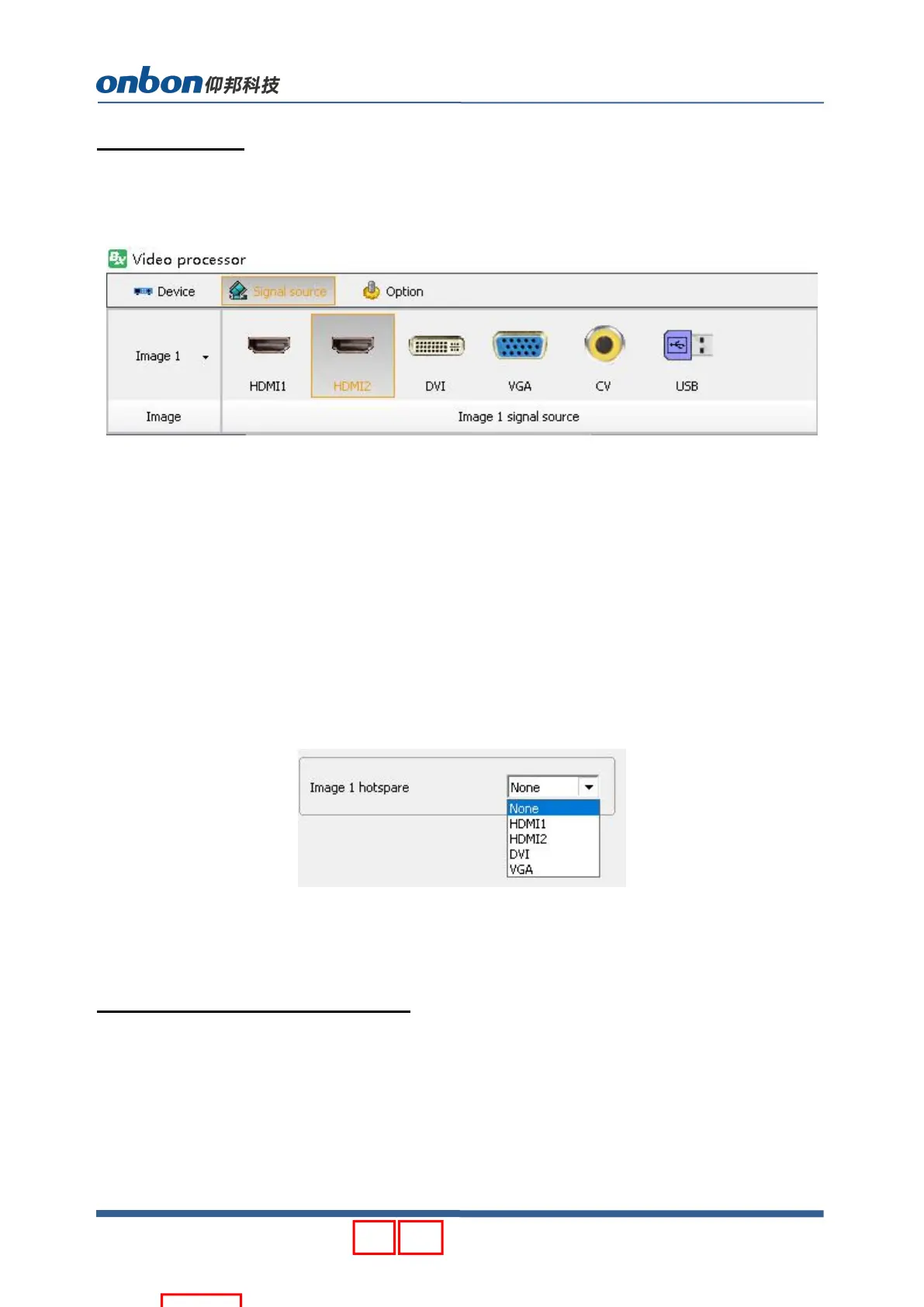

Set the signal source according to your requirements, below is the input signal sources
which are supported by OVP-L1X.
HDMI1：Can transfer both video and audio of PC to display at the same time, support
digital video & audio.
HDMI2：Can transfer both video and audio of PC to display at the same time, and support
digital video & video.
DVI ：Can connect computer and display, but support only video output.
VGA：Used for old version output of PC, support only video output.
CV：Support PAL \ NTSC compound video.
USB：Support 1080p@30fps or 720p@60fps content
2. Hot Spare
Support two input signal sources as hot spare mode, as below:
Choose Image in Image Layout--select one signal source as hot spare in the list of Image
hot spare. If you choose “None”, this function will be closed.
Receiving card configuration
Before setting receiving cards, please ensure that there is signal input in signal source
of video controller.
1. Parameter setting--Receiver card connection, set col count and row count according to
your receiving cards, as below:

Onbon OVP-L1X Specifications

General

Brand	Onbon
Model	OVP-L1X
Category	Controller
Language	English
