Image layout
Users can adjust parameters for each image, as below:
1. Image status:
Default of image status is “open”.
2. Image parameters:
When the image status is open, user can set width,height,horizontal start and vertical start.
Or users can adjust by dragging image.
Image width: adjust range 128~can set maximum pixels on horizontal side
Image height: adjust range 64~can set maximum pixels on vertical side
Image horizontal start: minimum is 0, maximum value is : maximum horizontal pixels -
horizontal width
Image vertical start: minimum is 0, maximum value is : maximum vertical pixels - vertical
width

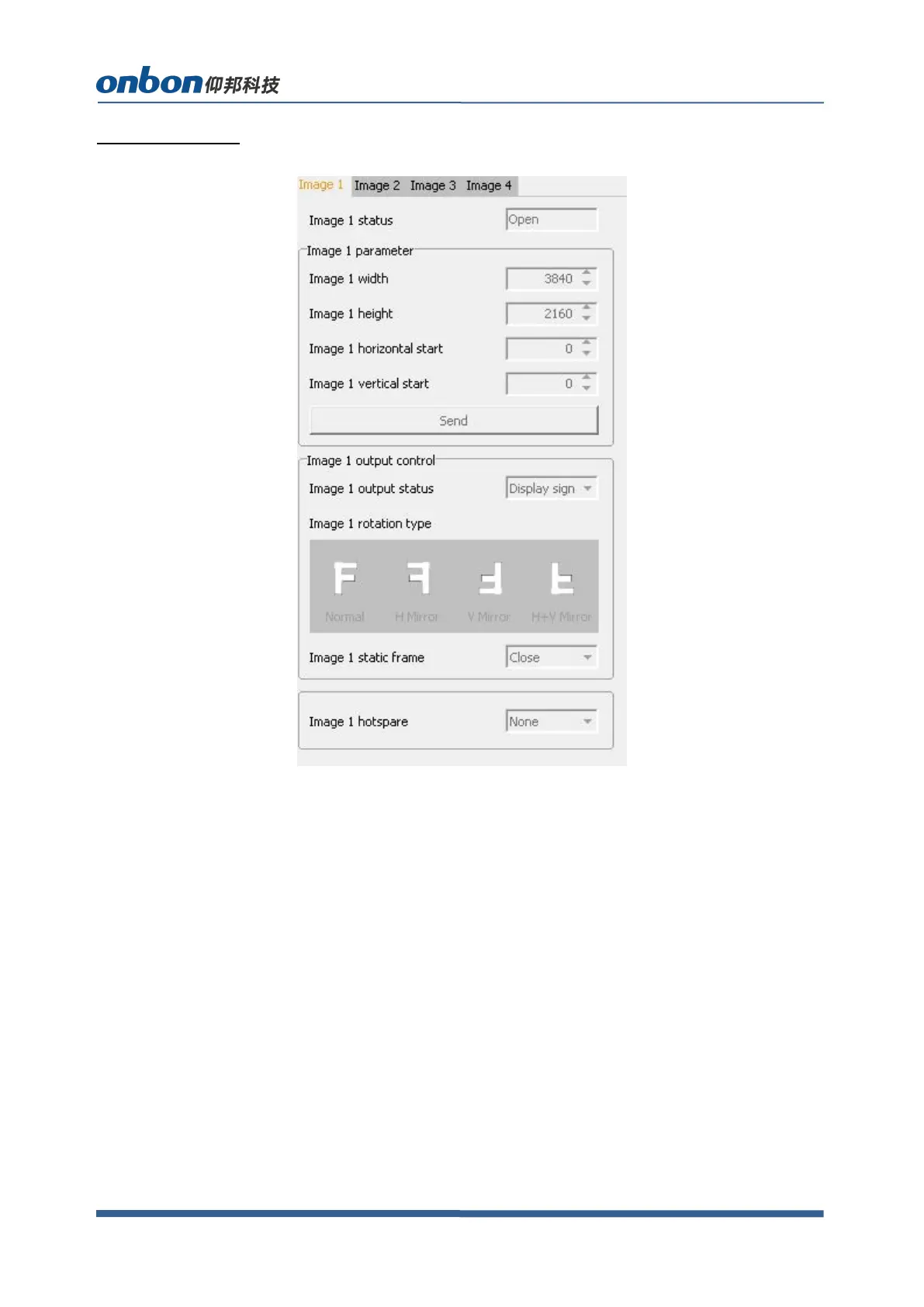

Click send, it will be sent to video controller. As below, both are OK:
