ONECELL25 - Installation Manual
11
3.3 Rear Panel
This section details the various types of ONECell25 rear panel so that the user can
identify the interface type and port numbering.
The interface marking is indicated in bold and between bracket.
All the connectors are located on the rear panel:
• 1 console port (RJ45) (CONSOLE),
• 2 Ethernet ports (RJ45) (FASTETHERNET 1/0 and FASTETHERNET 0/0),
• 1 connectors for GSM antenna (ANTENNA),
• Input for the external power supply connector (DC input jack, 12V-1A).

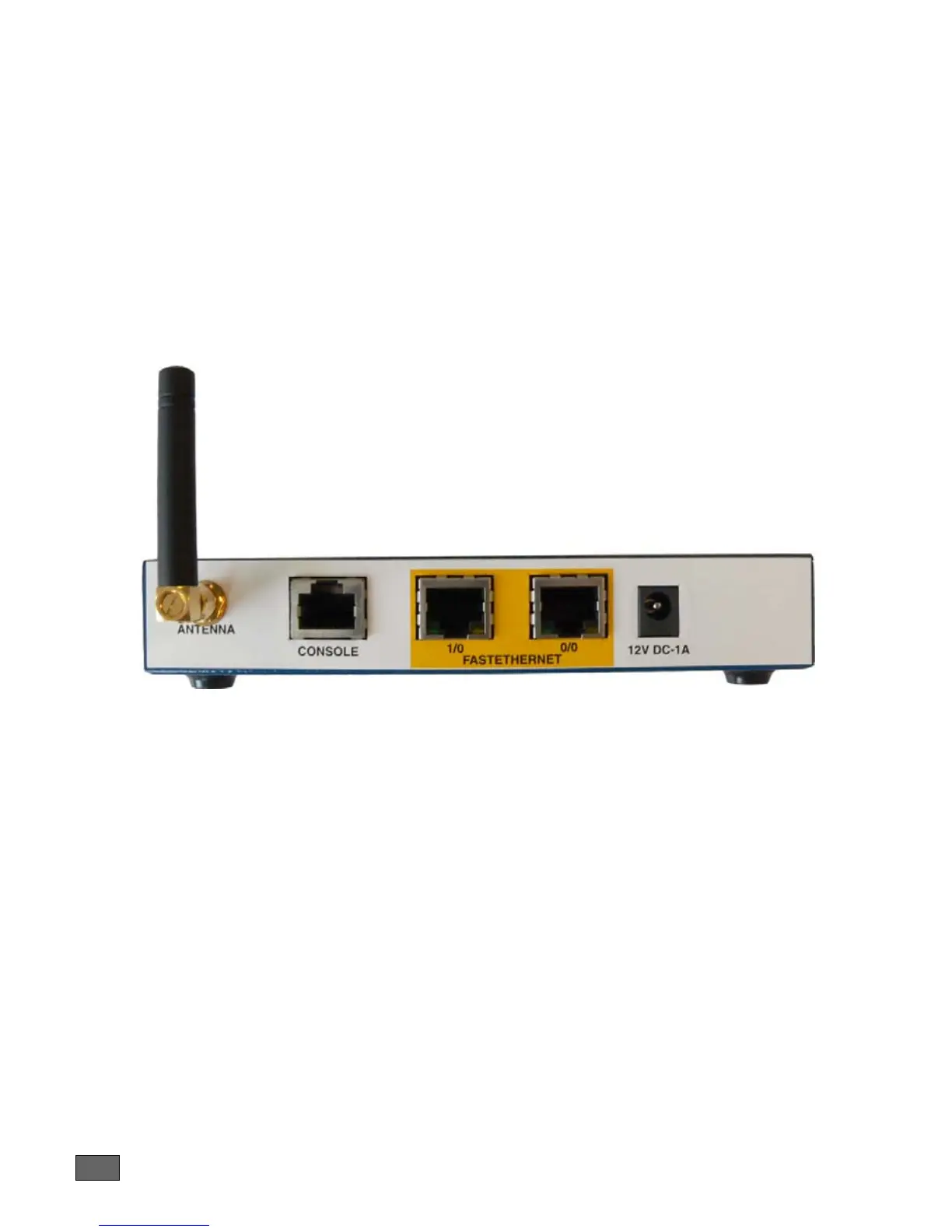

Figure 2. Rear panel
3.4 Motherboard
The motherboard provides:
• Router resources (CPU, DSP, memory RAM and Flash),
• Standard router interfaces (console interface, Fast Ethernet, and LEDs),
• An EDGE/GPRS radio module supporting a SIM card
