4.2 Console port (CONSOLE)
4.2.1 Characteristics
• RS 232,
• 9600 bps,
• 8 bits, 1 bit for stop, no parity.
• No flow control

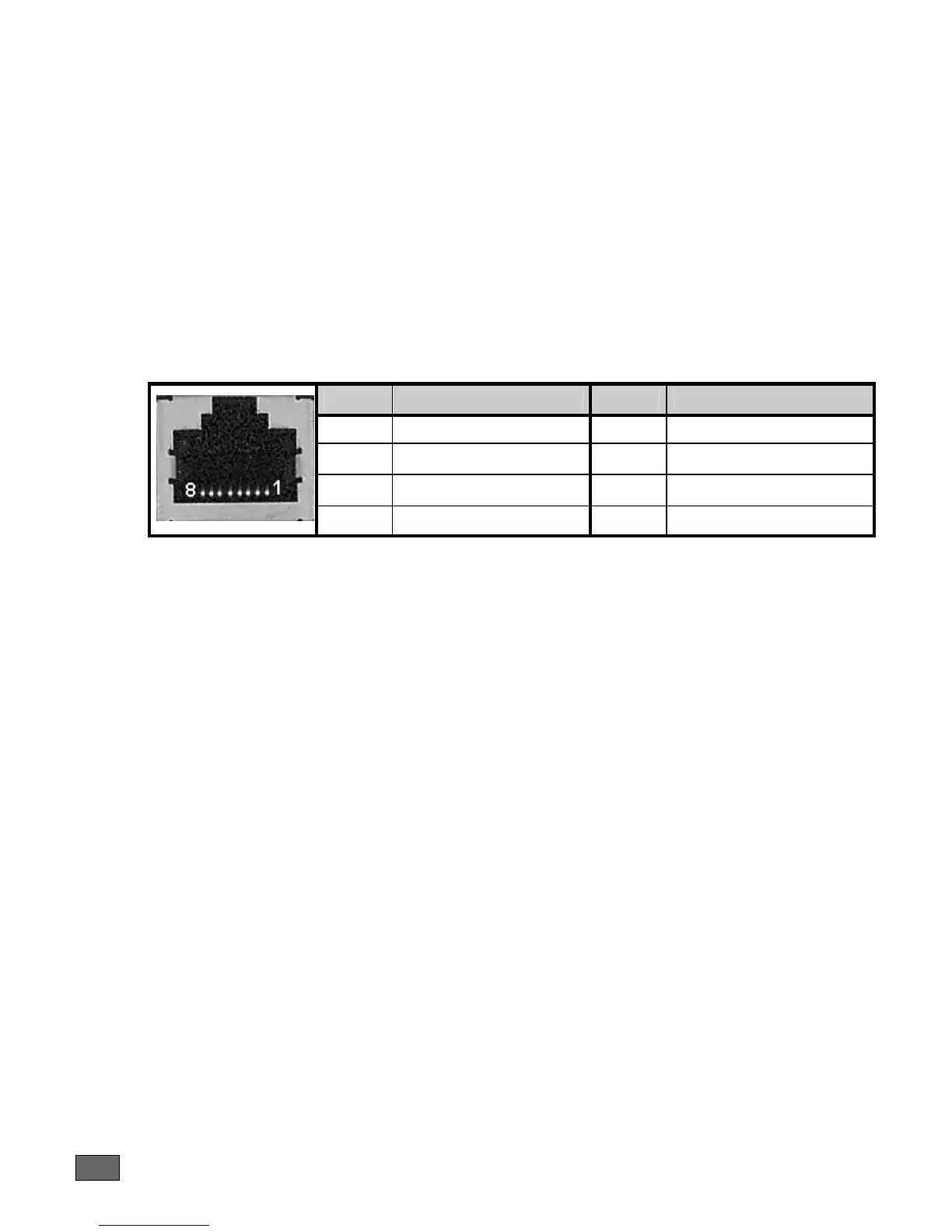

4.2.2 Connector Pinout
RJ45 Connector:
Pin Signal Pin Signal
1 TX 5
NC
2 RX 6
NC
3 GND 7
NC
4 NC 8
NC
- TX: Transmission
- RX: Reception
- NC: Not connected
- GND: Ground
A console cable for router configuration and maintenance only requires TX, RX and
GND to be connected.
4.2.3 Cables
The console cable is defined in Appendix A.
