3 Router Description
3.1 Hardware Description
3.1.1 Motherboard Interfaces
The ONECell25 motherboard is equipped with the following interfaces. The interface
marking is indicated in bold and between brackets.
• 1 console port (CONSOLE),
• 2 Ethernet port (LAN 100 BT) (FASTETHERNET)
The Ethernet interfaces of the ONECell25 only support the 100 Mbps full-
duplex operations in auto-sense mode. If connected to devices in 10 mbps
or half-duplex, the ONECell25 interface will not be connected. The problem
can appear mostly with devices forced in such mode or with old Ethernet
hub.
3.2 Front Panel
The front panel is provided with LEDS, which inform about the status of several
router functions.

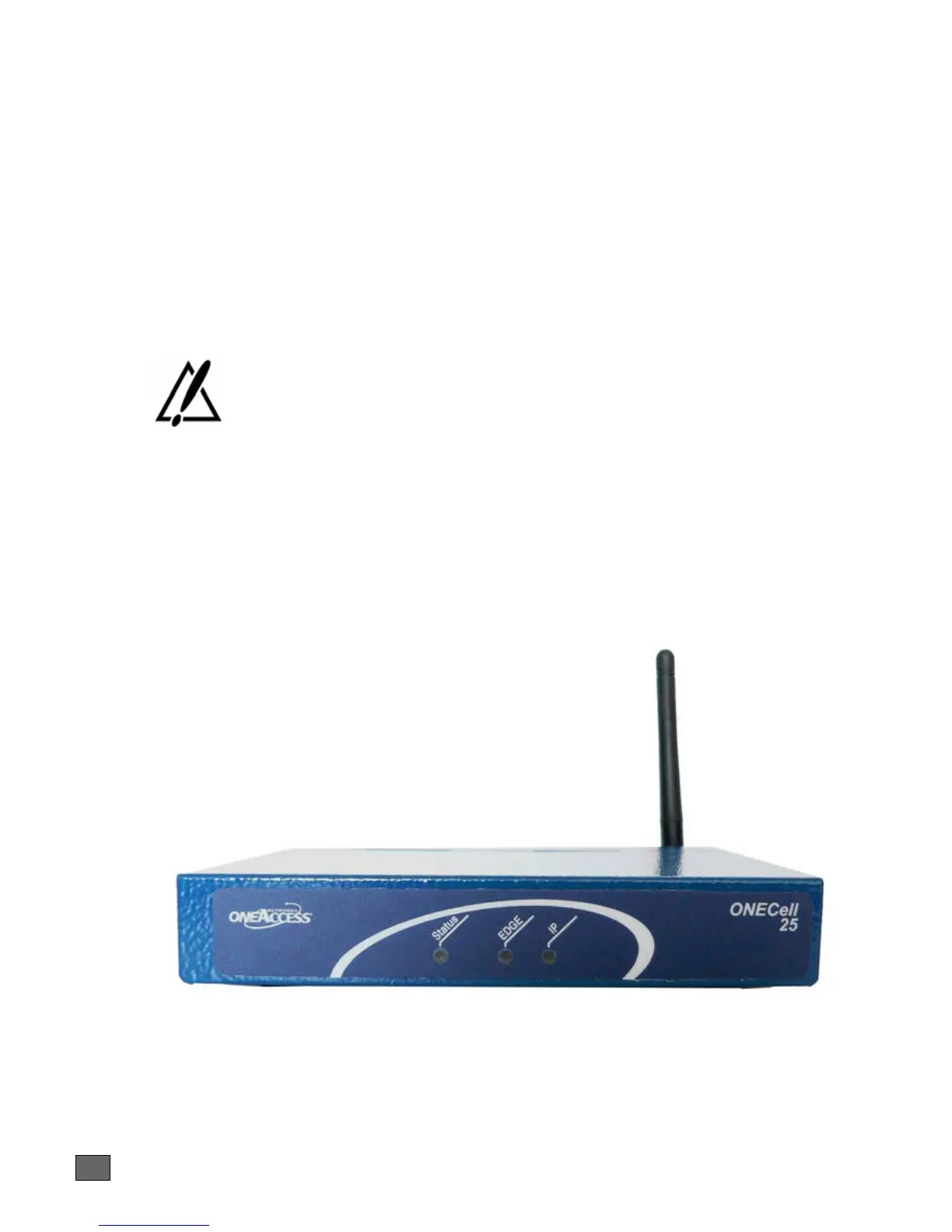

Figure 1. Front panel
