Assembly Instructions (Continued)

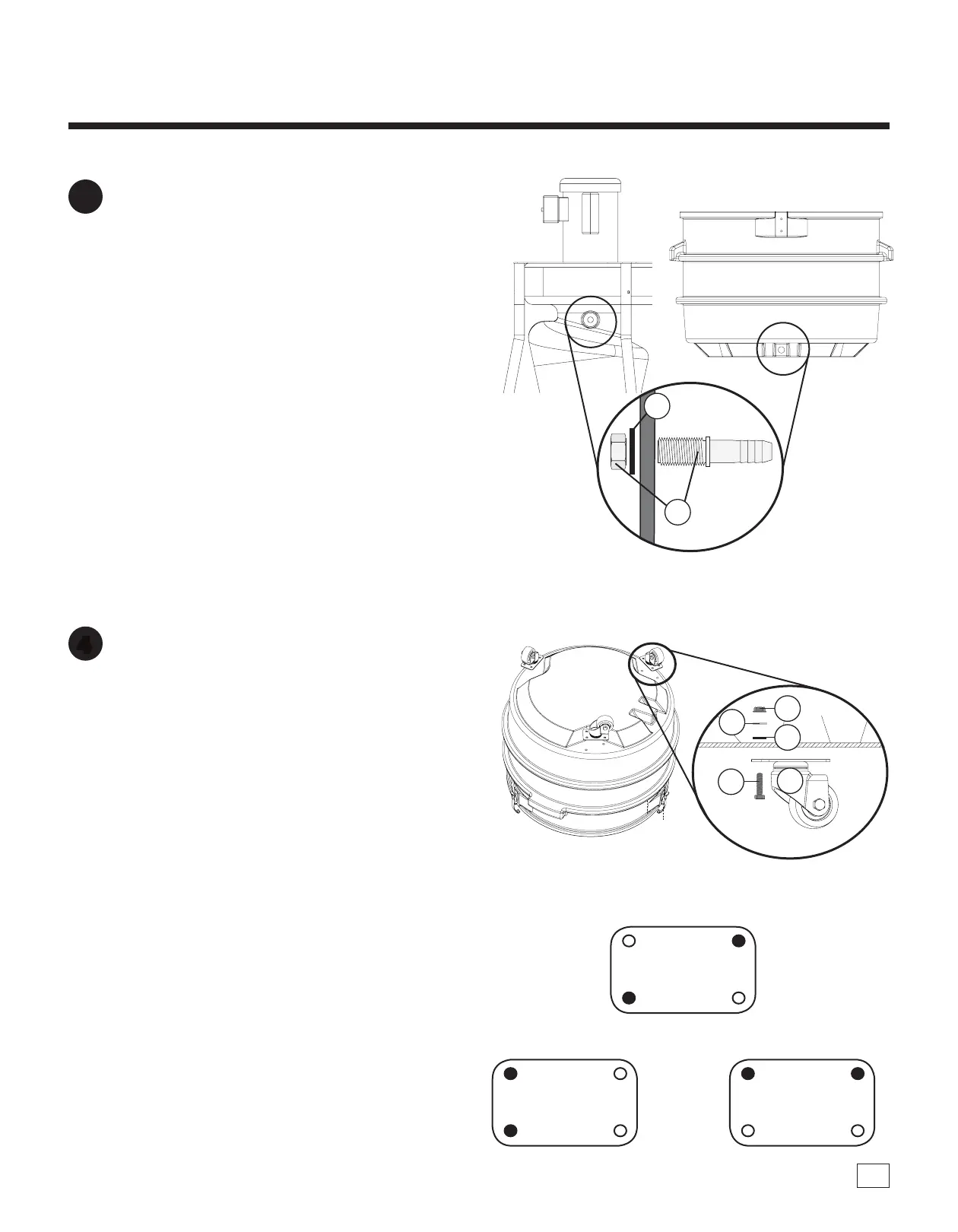

Install Straight Fittings (C9D) into the recessed
holes under the fan housing and near the bottom
of the drum. [FIG. 3a] [FIG. 3b] Secure in place
using the tting’s nut on the inside; using a
Rubber Washer (C9E) between the nut and the
inner wall. [FIG. 3c]
Note: For ease of assembly, when installing to the
bottom of the drum, we recommend to wedge
a at screwdriver between the Straight Fitting
(C9D) and the inner wall to secure it in place
when securing the nut.
3
4
Install each of the three Drum Casters (C9M) to
the drum using two 1/4" Hex Head Bolts (C9N),
two Rubber Washers (C9O), two 1/4" Flat
Washers (C9P), and two 1/4" Whiz-Lock Nuts
(C9Q) as shown in [FIG. 4]. Use the bolt holes
on opposing sides of the caster plate as shown in
[FIG 4b]
Note: Be sure to use the rubber washer under the
steel washers to assure an airtight seal. It is very
important that there are no leaks.
FIG. 3a
FIG. 4a
FIG. 3c
J
J
B
SECTION J-J
A
DETAIL A
SCALE 1 : 1
DETAIL B
SCALE 1 : 1
J
J
B
SECTION J-J
A
DETAIL A
SCALE 1 : 1
DETAIL B
SCALE 1 : 1
 INCORRECT
 CORRECT
FIG. 4b
 INCORRECT
C9M
C9N
C9O
C9Q
C9D
C9E
C9P
FIG. 3b
