12 Oneida Air Systems
Assembly Instructions (Continued)

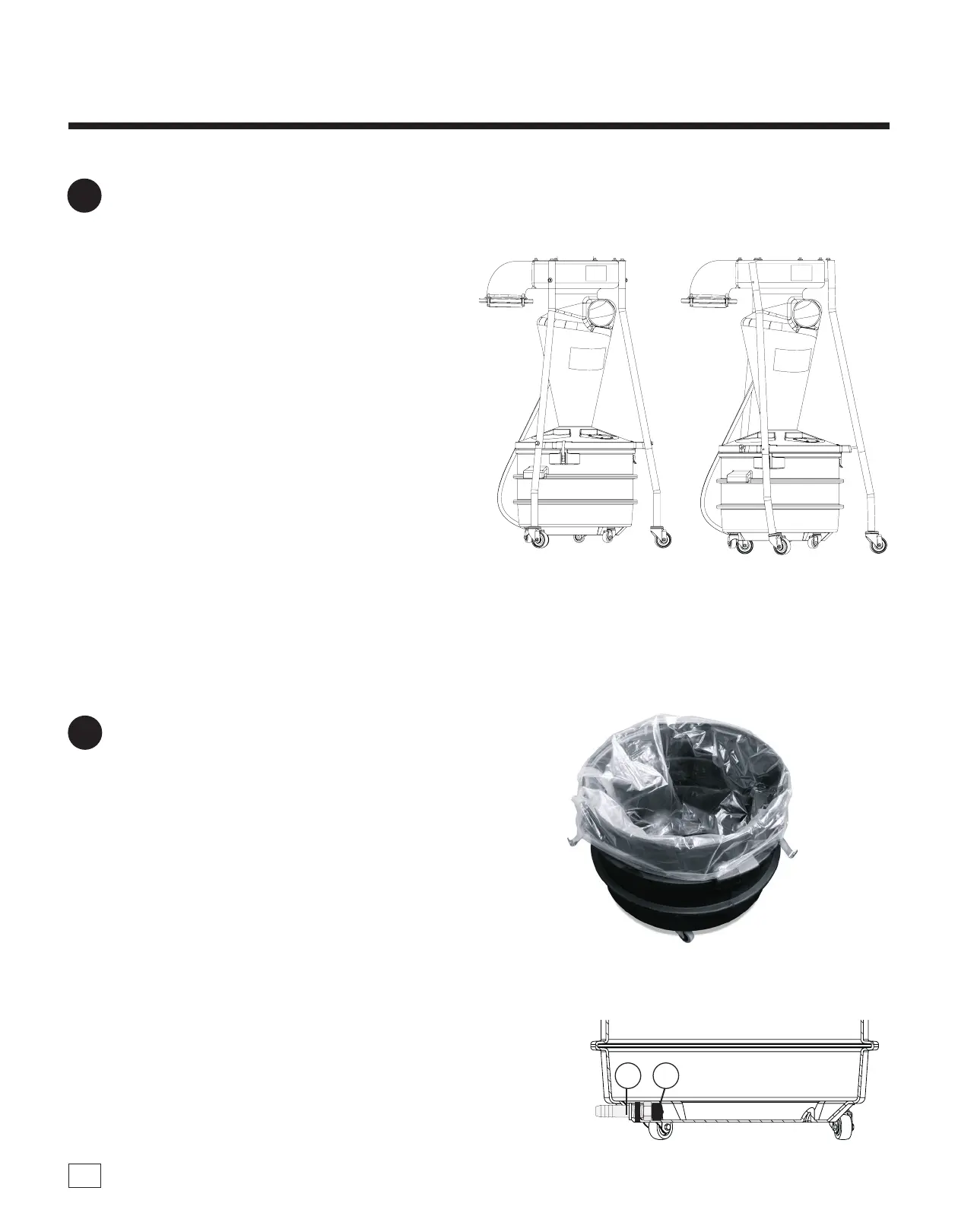

FIG. 6a
FIG. 5
Align the legs so that they are square and even
with the drum and body. [FIG. 5]
Note: Hardware attaching the Legs (C8) to the
Molded cyclone and Drum (C1) should be nger
tightened to help align the Motor Assembly (A) in
Step 10.
5
Insert a Drum Liner Bag (C9A) into the Drum,
making sure it fully expands against the sides
and the bottom of the drum. e top edges of
the bag should fold out and over the drum’s
upper rim. [FIG. 6a]
Note: If you do not want to use bags you MUST
use the Cap (C9F) to close o the tting inside the
drum. [FIG. 6b]
6
CORRECT INCORRECT
G
G
I
SECTION G-G
DETAIL I
SCALE 1 : 1
FIG. 6b
C9D C9F
