Assembly Instructions (Continued)

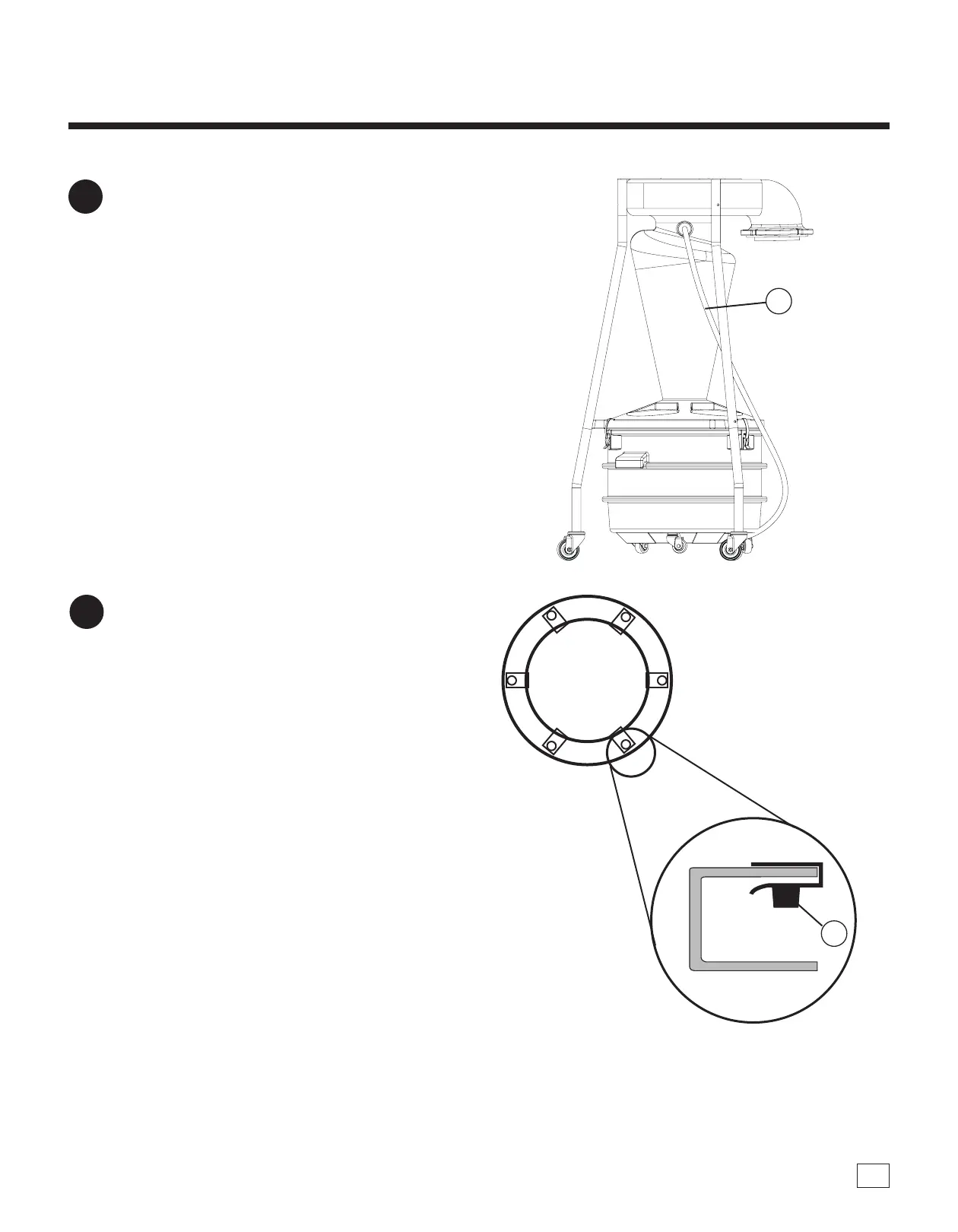

FIG. 7
Tap the U-Spring Nuts (C9R) onto each of the
holes around the circle of the Fan Housing with
a ball peen hammer. [FIG. 8]
Note: Make Sure the U-Spring Nut (C9R) is
pushed all the way on by checking that the bolt
holes are in alignment with the clip holes and
installed in the correct orientation. Otherwise
you will not get the seal needed for complete dust
collection! ere will be two leover U-Spring
Nuts that are not needed for the installation.
8
Latch the Drum to the cone assembly and
connect the Vinyl Tubing (C9B) onto both
Straight Fittings (C9D). Push tubing on until all
barbs are covered. [FIG. 7]
7
FIG. 8
Top View
C9R
C9B
